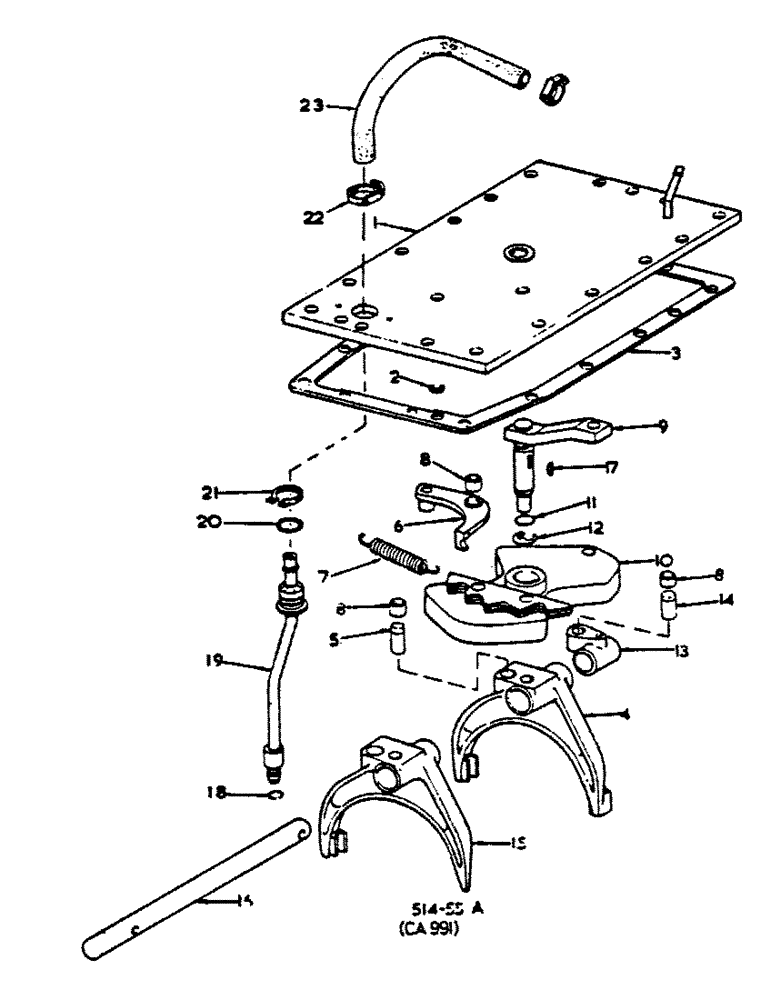

Запчасти Case IH 474 (07-39) - GEAR SHIFT MECHANISM, SPEED TRANSMISSION (04) - Drive Train

1

66197C1

COVER

ASSY, CLUTCH HOUSING TOP

1шт.

NLS

NO LONGER SERVICED

16шт.

11002VA

WASHER

17/32 x 7/8 x 1/16

1шт.

9410359

PLUG

3/4-16 STD THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

1

66203C1

NO LONGER SERVICED

COVER ASSY, CLUTCH HOUSING TOP - TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

RETAINING

1шт.

3

401019R2

GASKET

CLUTCH HOUSING TOP COVER

1шт.

3

401621R2

GASKET

CLUTCH HOUSING TOP COVER - TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT

1шт.

4

401697R91

YOKE

FORK ASSY, 3RD + 4TH SPEED SHIFT

1шт.

5

383438R1

DOWEL

PIN, 1/2 x 1 DOWEL

1шт.

6

382565R21

ARM ASSY.

ARM ASSY, SHIFTER CONTROL

1шт.

7

383997R1

SPRING

SHIFTER CONTROL ARM

1шт.

8

380115R2

ROLLER

CAM

3шт.

9

404734R1

ARM ASSY.

ARM ASSY, CAM ACTUATING

1шт.

10

399454R92

CAM

ASSY, CLUTCH HOUSING SHIFT - SLOW SPEED DRIVE TRAIN TYPE

1шт.

10

399455R92

CAM

ASSY, CLUTCH HOUSING SHIFT - FAST SPEED DRIVE TRAIN TYPE

1шт.

104186

RIVET

5/16 x 1-3/8 CSK HD SOLID

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 CAM PIVOT SHAFT O-RING

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

HUB ASSY, 1ST + 2ND SPEED SHIFT

1шт.

14

383438R1

DOWEL

PIN, 1/2 x 1 DOWEL

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1ST + 2ND SPEED SHIFT

1шт.

16

401696R1

ROD

1ST + 2ND SPEED SHIFT

1шт.

17

106751

KEY

3/16 x 3/4 WOODRUFF CAM PIVOT SHAFT KEY

1шт.

18

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

1шт.

19

66199C1

TUBE ASSY.,0.25" OD, 7.5, 0.62" Length

TUBE, ASSY, TRANSMISSION LUB

1шт.

20

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/4

1шт.

21

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

22

534421R1

HOSE CLAMP

CLAMP, WORM DRIVE HOSE

2шт.

22

20894R1

NO LONGER SERVICED

CLAMP, 5/8 TYPE D HOSE

2шт.

22

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

- OPT #06, .44/.78 Type F Worm

2шт.

22

3112550R1

CLAMP

HOSE

2шт.

23

66201C1

HOSE,0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

1шт.
