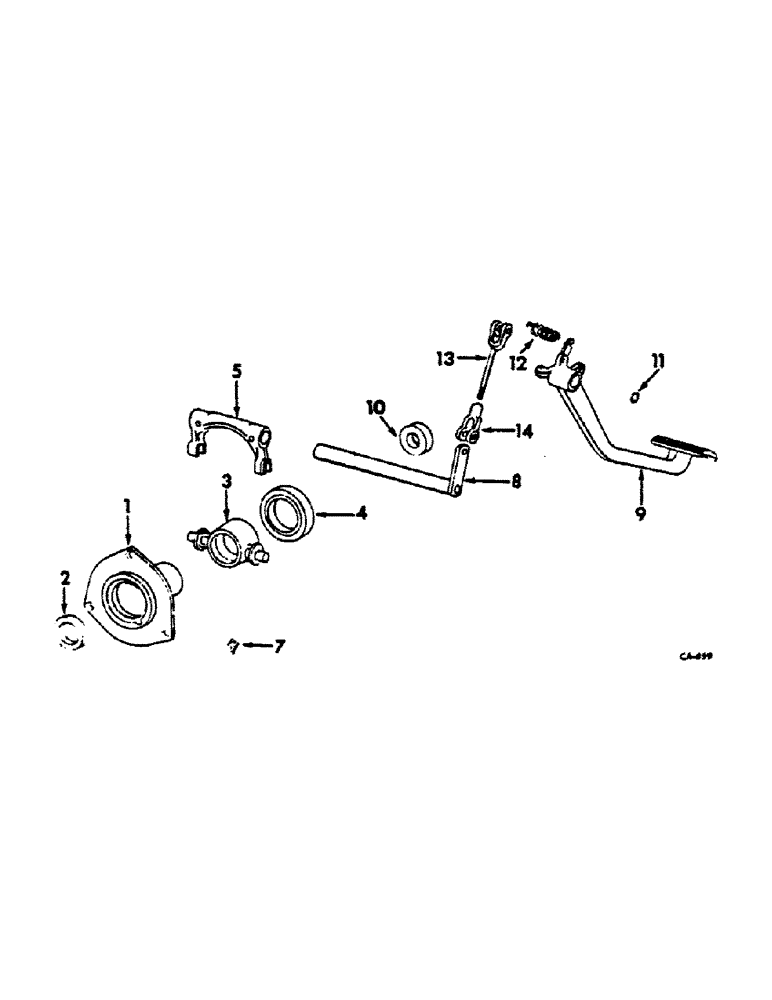

Запчасти Case IH 474 (07-38) - CLUTCH CONTROLS (04) - Drive Train

1

398236R1

CARRIER

CLUTCH RELEASE SLEEVE

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/8 HEX HD CAP

3шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .065

3шт.

2

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

RELEASE SLEEVE CARRIER OIL

1шт.

3

360501R2

SLEEVE CYLINDER

SLEEVE, CLUTCH RELEASE

1шт.

4

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

CLUTCH RELEASE BALL - OPTIONAL W/365866R91, 365865R91 AND 528098R92

1шт.

4

365866R91

THRUST BEARING

CLUTCH RELEASE BALL - OPTIONAL W/59879D, 365865R91 AND 528098R92

1шт.

4

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

CLUTCH RELEASE BALL - OPTIONAL W/59879D, 365866R91 AND 528098R92

1шт.

4

528098R92

BALL BEARING,2.46" ID x 3.5" OD x 0.783"

CLUTCH RELEASE BALL - OPTIONAL W/365866R91 59879D AND 365865R91

1шт.

5

398342R1

FORK

CLUTCH RELEASE

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

6

- NOT USED -

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

398237R1

SHAFT

ASSY, CLUTCH RELEASE

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB

2шт.

9

530805R1

PEDAL

ASSY, CLLTCH

1шт.

23183R1

WASHER

29/32 x 1-3/8 x .054 GA

1шт.

10

610463R91

BALL BEARING

BEARING, CLUTCH PILOT BALL

1шт.

11

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

12

399743R1

SPRING

CLUTCH PEDAL RETURN

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 HEX HD DV PT

1шт.

SET

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

13

401475R2

ROD

ASSY, CLUTCH OPERATING

1шт.

14

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 LIGHT ADJ ROD

1шт.

END

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 ROD END

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.
