Запчасти Case IH 474 (07-36) - BELT PULLEY (04) - Drive Train

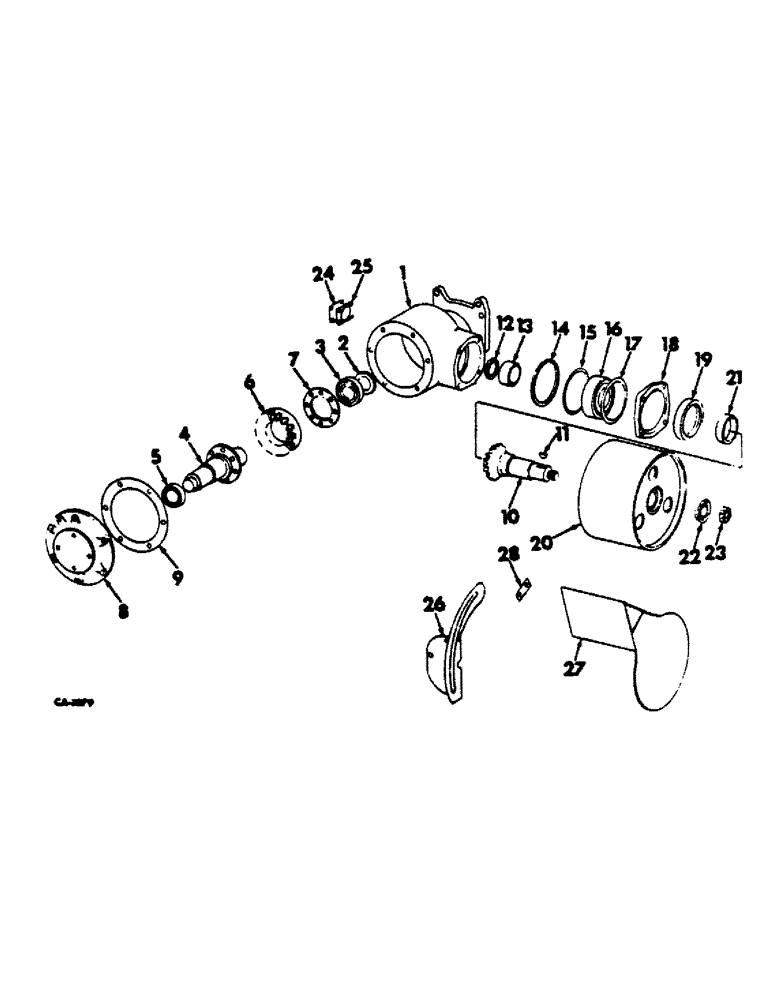

Схема запчастей Case IH 474 - (07-36) - BELT PULLEY (04) - Drive Train
10
5
15
4
19
20
7
1
3
12
23
8
21
6
27
9
2
25
18
17
16
13
28
22
24
26
14
11

Артикул

Название

Примечание

Количество

527829R91

ATTACHMENT, BELT PULLEY - W/SAFETY SHIELD - TRACTORS W/DUAL SPEED INDEPENDENT PTO

1шт.

1

527830R1

HOUSING

BELT PULLEY DRIVE

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 AUTOMOTIVE SQ HD PIPE

1шт.

2

704229R91

OIL SEAL

SEAL, DRIVE HOUSING OIL - OPTIONAL W/704230R91 AND 3066615R91

1шт.

2

704230R91

SEAL

DRIVE HOUSING OIL - OPTIONAL W/704229R91 AND 3066615R91

1шт.

2

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

DRIVE HOUSING OIL - OPTIONAL W/704229R91 AND 704230R91

1шт.

3

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, BELT PULLEY SHAFT INNER BALL - OPTIONAL W/704234R91 AND 3048701R91

1шт.

3

704234R91

BALL BEARING

BEARING, BELT PULLEY SHAFT INNER BALL - OPTIONAL W/20161D AND 3048701R91

1шт.

3

3048701R91

BALL BEARING

BEARING, BELT PULLEY SHAFT INNER BALL - OPTIONAL W/20161D AND 704234R91

1шт.

4

530044R1

CLUTCH ASSEMBLY

CLUTCH ASSY, BELT PULLEY PTO

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 HEX HD CAP

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

5

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/700311R91, 701445R91, 700545R91, 704769R92 AND 659473R91

1шт.

5

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/76491H, 701445R91, 700545R91, 704769R92 AND 659473R91

1шт.

5

701445R91

BEARING, BALL

BEARING, BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/76491H, 700311R91, 700545R91, 704769R92 AND 659473R91

1шт.

5

700545R91

BEARING

BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/76491H, 700311R91, 701445R91, 704769R92 AND 659473R91

1шт.

5

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/76491H, 700311R91, 701445R91, 700545R91 AND 659473R91

1шт.

5

659473R91

BEARING, BALL

BEARING, BELT PULLEY SHAFT OUTER BALL - OPTIONAL W/76491H, 700311R91, 701445R91, 700545R91 AND 704769R92

1шт.

6

3067910R1

GEAR

BELT PULLEY BEVEL

1шт.

7

3067911R1

SHIM

BEVEL GEAR

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX HD CAP

6шт.

8

3073827R1

COVER

DRIVE HOUSING

1шт.

9

3073828R1

SHIM

DRIVE HOUSING

1шт.

10

3067916R1

SHAFT

GEAR, DRIVE BEVEL PINION + SHAFT

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

11

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

12

527832R91

BEARING

PINION INNER ROLLER

1шт.

13

704243R1

SPACER

BELT PULLEY BRG

1шт.

14

706745R1

SPACER

BELT PULLEY SHAFT - .148

1шт.

15

3073348R1

SHIM

BELT PULLEY

1шт.

16

133606H

BEARING, BALL

BEARING, PINION OUTER BALL - OPTIONAL W/704244R91, 704245R91 AND 3063609R91

1шт.

16

704244R91

BEARING

PINION OUTER BALL - OPTIONAL W/133606H, 704245R91, AND 3063609R91

1шт.

16

704245R91

BEARING

PINION OUTER BALL - OPTIONAL W/133606H, 704244R91, AND 3063609R91

1шт.

16

3063609R91

BALL BEARING

BEARING, PINION OUTER BALL - OPTIONAL W/133606H, 704244R91, AND 704245R91

1шт.

17

711872R1

GASKET

PINION SHAFT RETAINER

1шт.

18

704246R21

RETAINER

ASSY, PINION SHAFT

1шт.

19

704247R91

OIL SEAL

SEAL, OIL - OPTIONAL W/704248R91

1шт.

19

704248R91

SEAL

OIL - OPTIONAL W/704247R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX HD CAP

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

527833R11

PULLEY ASSY.

PULLEY ASSY, BELT

1шт.

21

704250R1

BUSHING

1шт.

22

527834R1

WASHER

BELT PULLEY RETAINER

1шт.

23

704252R1

NUT

PINION SHAFT

1шт.

24

711881R1

PLATE

DRIVE HOUSING TOP COVER

1шт.

25

711882R1

GASKET

DRIVE HOUSING TOP COVER PLATE

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 HEX HD CAP

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

3067917R11

BRACKET

ASSY, REVERSE BELT PULLEY SAFETY SHIELD

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

27

3067919R91

GUARD ASSY.

SHIELD ASSY, REVERSE BELT PULLEY SAFETY

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 HEX HD CAP

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

271500

SOCKET

7/16-14 HEX

2шт.

28

3049001R1

PLATE

BACKING

1шт.

Выбрано товаров: 58
