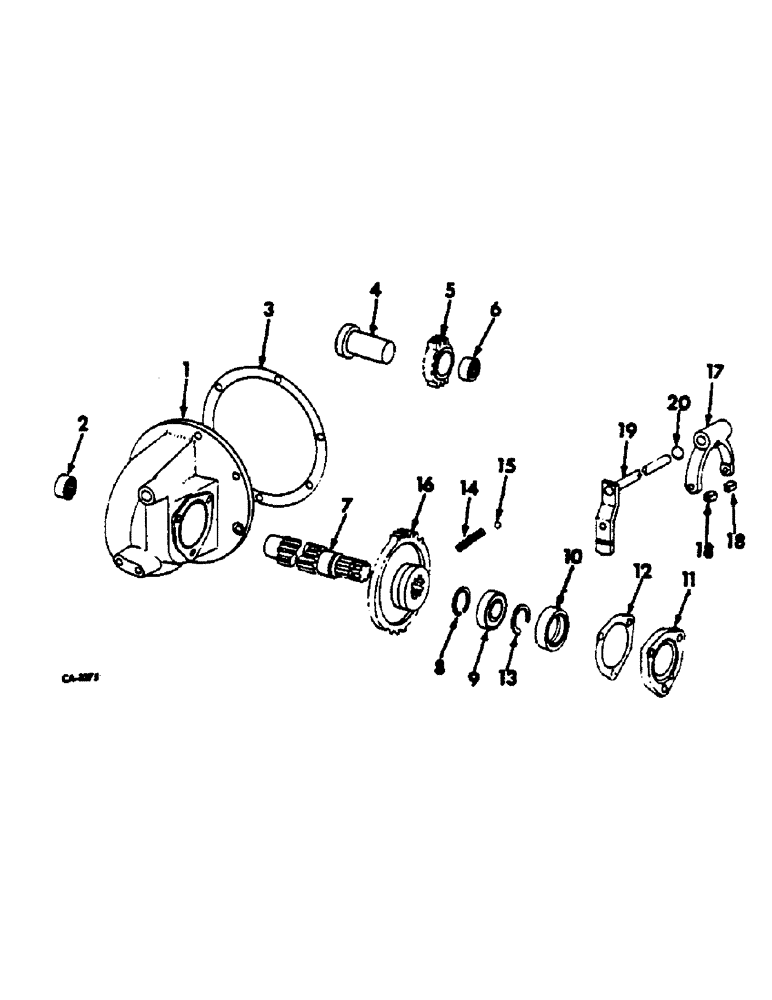

Запчасти Case IH 474 (07-35) - SIDE DRIVE POWER TAKE OFF (04) - Drive Train
№
Артикул
Название
Примечание
Количество
529321R91
ATTACHMENT SIDE DRIVE POWER TAKE
1шт.
OFF - TRACTORS W/INDEPENDENT PTO W/PROVISION FOR SIDE MOUNTED PTO ATT
1шт.
1
529322R21
HOUSING ASSY.
HOUSING ASSY, SIDE DRIVE PTO
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
7шт.
2
529323R91
BEARING, NEEDLE
BEARING, OUTPUT SHAFT NEEDLE
1шт.
3
528650R1
GASKET
SIDE DRIVE PTO HOUSING
1шт.
4
529324R1
SHAFT
SIDE DRIVE PTO IDLER GEAR
1шт.
618573R1
PIN,1/4" x 2 1/4", Coiled
1шт.
5
529325R1
GEAR, IDLER
GEAR, SIDE DRIVE PTO IDLER -21T
1шт.
6
287057R91
BEARING, NEEDLE
BEARING, IDLER GEAR NEEDLE -
1шт.
6
531437R91
NEEDLE BEARING
BEARING, IDLER GEAR NEEDLE - OPT
1шт.
7
529326R1
SHAFT, 1000 RPM OUTPUT
1шт.
8
573984R1
SNAP RING
RING, SLIDING GEAR RETAINER SNAP
1шт.
9
ST247
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING, OUTPUT SHAFT BALL - OPTIONAL W/704770R91
1шт.
9
704770R91
BALL BEARING
BEARING, OUTPUT SHAFT BALL - OPTIONAL W/ST247
1шт.
10
381480R91
OIL SEAL
OUTPUT SHAFT OIL - OPT
1шт.
10
534917R91
OIL SEAL
OUTPUT SHAFT OIL -
1шт.
11
529327R1
FLANGED BEARING
OUTPUT SHAFT BRG
1шт.
321316R1
SCREW
1/2-13 x 1-1/4 HEX HD CAP
3шт.
12
529328R1
GASKET
OUTPUT SHAFT BRG RETAINER
1шт.
13
359141R1
RING, SNAP
RING, OUTPUT SHAFT BRG RETAINER SNAP
1шт.
14
529329R1
SPRING
DRIVEN GEAR POPPET
1шт.
15
17009R1
BALL
9/32 CR STL - OPTIONAL W/16009R1
2шт.
16
16009R1
BALL
9/32 SR-STL - OPTIONAL W/17009R1
2шт.
16
529330R1
GEAR
SIDE DRIVE PTO DRIVEN -44T-
1шт.
17
529331R1
FORK
ASSY, DRIVEN GEAR SELECTOR
1шт.
18
318721R1
BLOCK
SELECTOR FORK
2шт.
19
65772C1
SHAFT ASSY.
SHAFT ASSY, SELECTOR FORK - W/CAUTION INSTRUCTIONS PROGRAPH
1шт.
19791R1
PIN,1/4" x 1 1/8", Coiled
1шт.
164603C1
THUMB SCREW,3/8" - 16 x 5/8"
SCREW, SELECTOR FORK SHAFT ARM AI
1шт.
20
355966R1
O-RING,0.424" ID x 0.103" Width
7/16 x 5/8 x 3/32 SELECTOR FORK SHAFT
1шт.
Выбрано товаров: 32
