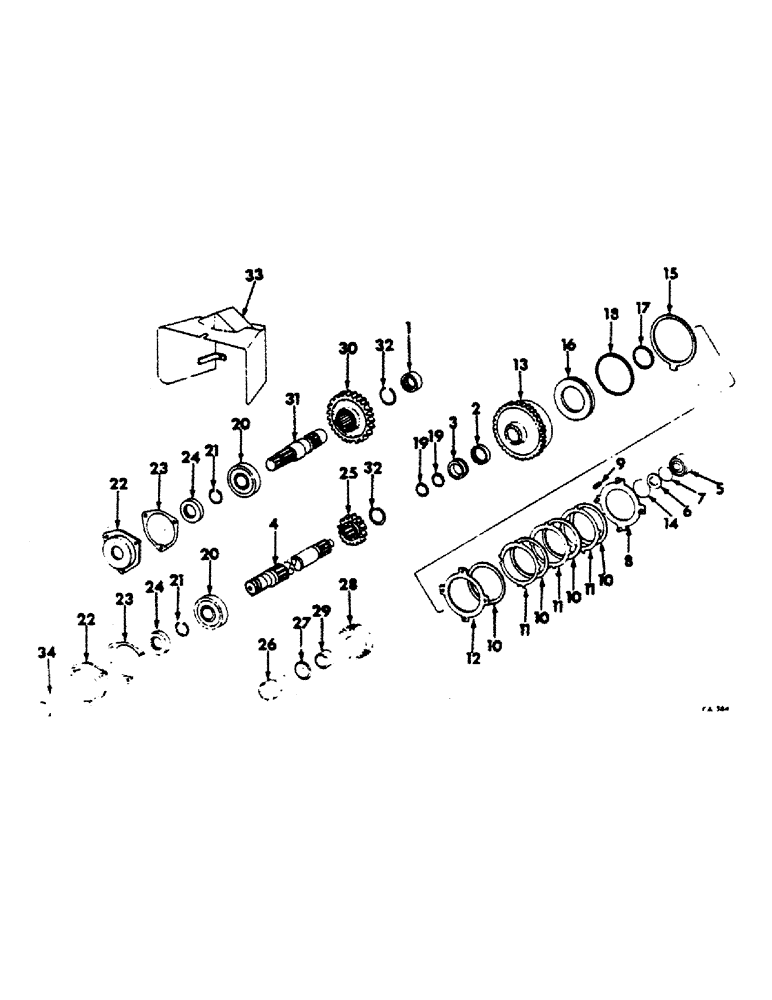

Запчасти Case IH 474 (07-29) - INDEPENDENT POWER TAKE OFF, SINGLE SPEED (04) - Drive Train

INDEPENDENT POWER TAKE OFF - 642 RPM UPPER OUTPUT SHAFT W/PROVISION FOR SIDE PTO

1шт.

1

112821R91

NEEDLE BEARING

642 RPM SHAFT NEEDLE - OPTIONAL W/528103R91

1шт.

1

528103R91

BEARING, NEEDLE

BEARING, 642 RPM SHAFT NEEDLE - OPTIONAL W/112821R91

1шт.

2

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, 1004 RPM SHAFT NEEDLE

1шт.

3

401705R1

BUSHING

1004 RPM SHAFT

1шт.

4

66189C1

SHAFT ASSY.

SHAFT ASSY, REAR PTO DRIVE

1шт.

5

66183C1

NO LONGER SERVICED

HUB ASSY, CLUTCH

1шт.

6

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

7

401756R1

SNAP RING,#206, 1.936", Ext

RING, SNAP

1шт.

8

66186C91

PLATE ASSY.

PLATE ASSY, CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 7/8 DOWEL

6шт.

9

66182C1

SPRING

PISTON RETURN

6шт.

10

DISC ASSY, FRONT CLUTCH - ORDER PACKAGE 66193C91

5шт.

11

PLATE, DRIVEN - ORDER PACKAGE 66193C91

8шт.

12

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

13

66068C1

GEAR

CLUTCH CUP 44T - W/PROVISION FOR SIDE PTO

1шт.

13

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

14

401720R1

CIRCLIP

RING, BACKING PLATE SNAP

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

16

401722R1

PISTON

CLUTCH

1шт.

17

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, PISTON SEAL - INNER

1шт.

18

401724R1

SEAL,0.551" ID x 0.07" Width

RING, PISTON SEAL - OUTER

1шт.

19

166972R1

RING

SHAFT SEALING

2шт.

20

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, SHAFT BALL

2шт.

20

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, SHAFT BALL

2шт.

20

533615R1

BEARING

SHAFT BALL

2шт.

20

538962R91

BALL BEARING

BEARING, SHAFT BALL - OPTIONAL

2шт.

21

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

2шт.

22

66191C1

FLANGED BEARING

IPTO BEARING END

1шт.

22

401725R1

NO LONGER SERVICED

FLANGE IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

23

399843R2

GASKET

SHAFT BRG RETAINER

2шт.

24

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, SHAFT OIL

2шт.

25

404233R1

PINION

GEAR, LOWER SHAFT DRIVE - 22T

1шт.

26

401726R1

SHAFT

IPTO IDLER

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401727R1

PINION

GEAR, IDLER - 24T

1шт.

29

570450R1

BEARING

IDLER SHAFT NEEDLE - OPTIONAL W/528105R91

1шт.

29

528105R91

BEARING, NEEDLE

BEARING, IDLER SHAFT NEEDLE - OPTIONAL W/570450R1

1шт.

30

404237R1

PINION

GEAR, UPPER DRIVEN - 36T

1шт.

31

3113017R1

SHAFT

UPPER OUTPUT

1шт.

32

336000R1

SNAP RING,#175, 1.640", Ext

RING, DRIVEN GEAR RETAINER

2шт.

33

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO SAFETY

1шт.

33

528481R1

SHIELD

ASSY, IPTO SAFETY - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

34

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

2шт.

66193C91

PACKAGE

1000 RPM CLUTCH PLATE - SERVICE CONSISTS OF , NOT ILLUSTRATED

1шт.

NSS

NOT SOLD SEPARAT

DISC

5шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

PLATE

8шт.

Not available for service

1шт.

O-RING 401723R1

1шт.

O-RING 401724R1

1шт.

SPRING 66182C1

6шт.

1092846R1

PRODUCT GRAPHIC

IPTO SPEED - SYNCHRO MESH DRIVE TRACTORS - NOT ILLUSTRATED

1шт.

1092848R1

DECAL

PRODUCT GRAPHIC IPTO SPEED - HYDROSTATIC DRIVE TRACTORS - NOT ILLUSTRATED

1шт.
