Запчасти Case IH 474 (07-27) - TORQUE AMPLIFIER, SYNCHROMESH DRIVE (04) - Drive Train

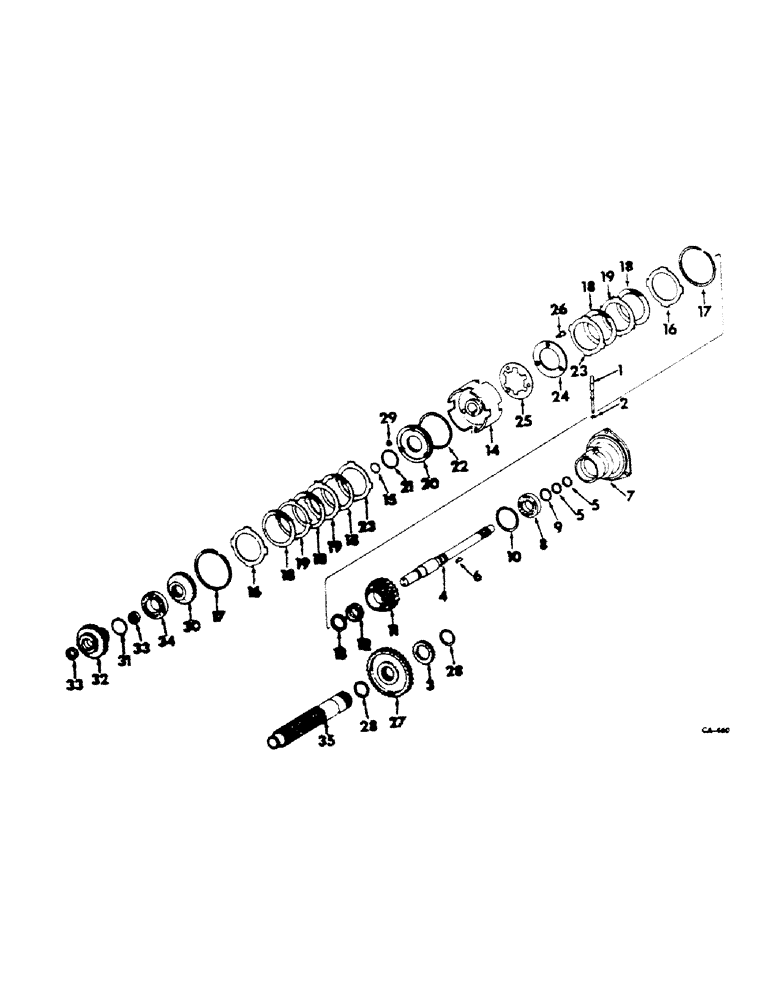

Схема запчастей Case IH 474 - (07-27) - TORQUE AMPLIFIER, SYNCHROMESH DRIVE (04) - Drive Train
15
29
4
22
18
19
17
23
5
33
17
6
18
27
18
31
5
28
16
10
28
19
12
8
26
23
30
18
2
11
7
33
19
9
3
21
13
32
20
34
25
24
18
14
1
16
35

Артикул

Название

Примечание

Количество

1

536975R1

STEM

TA CONTROL

1шт.

896045R1

SNAP RING,#37, Ext

1шт.

2

531539R1

COLLAR

TA CONTROL

1шт.

3

404106R1

GEAR

PUMP DRIVE 27T

1шт.

4

402558R11

SHAFT

ASSY, CLUTCH

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW, 1/4-20 x 1/4 HEX SOC HD F PT

1шт.

SET - OPTIONAL W/102569

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 HEX SOC HD CUP

1шт.

PT SET - OPTIONAL W/222386

1шт.

5

406275R1

RING

CLUTCH SHAFT PISTON

2шт.

6

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 WOODRUFF B CLUTCH CUP RETAINER KEY

1шт.

7

531540R1

NO LONGER SERVICED

CAGE ASSY, IPTO AND CLUTCH CUP

1шт.

RETAINER

1шт.

8

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/76491H, 704769R92, AND 700311R91

1шт.

8

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/ST205A, 704769R92, AND 700311R91

1шт.

8

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/ST205A, 76491H, AND 700311R91

1шт.

8

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/ST205A 76491H, 704769R92

1шт.

9

359141R1

RING, SNAP

RING, CLUTCH SHAFT BRG OUTER RETAINING

1шт.

10

377911R1

RING, SNAP

RING, CLUTCH SHAFT BRG INNER RETAINING

1шт.

402562R1

THRUST WASHER

WASHER, CLUTCH SHAFT THRUST

1шт.

11

402563R1

PINION

GEAR ASSY, DRIVE

1шт.

12

402566R1

BEARING ASSY

ASSY, SPRAG

1шт.

13

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL, SPRAG BORE OIL

1шт.

14

538989R1

NO LONGER SERVICED

CUP, DIRECT DRIVE CLUTCH

1шт.

15

583976R1

SNAP RING,#125, 1.179", Ext

RING, CLUTCH CUP RETAINING SNAP

1шт.

16

402569R1

PLATE

CLUTCH BACKING

2шт.

17

401720R1

CIRCLIP

RING, BACKING PLATE RETAINING

2шт.

18

PLATE ASSY, CLUTCH DRIVEN - ORDER PACKAGE 534936R91

1шт.

19

PLATE, DIRECT DRIVE CLUTCH SEPARATOR - ORDER PACKAGE 534936R91

1шт.

20

402570R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

21

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

RING, CLUTCH PISTON INNER SEALING

1шт.

22

401724R1

SEAL,0.551" ID x 0.07" Width

RING, CLUTCH PISTON OUTER SEALING

1шт.

23

402572R1

PLATE

PISTON BACKING

2шт.

24

402573R1

PLATE

CLUTCH LOCK UP PRESSURE

1шт.

25

402574R1

BELLEVILLE WASHER

WASHER, BELLEVILLE

2шт.

26

402575R1

BOLT,1/4" - 28 x 1-5/16"

PISTON RETURN

3шт.

27

404105R1

PINION

GEAR, TA DRIVEN -41T

1шт.

28

381486R1

SNAP RING,#187, 1.759", Ext

RING, TA DRIVEN GEAR AND PUMP GEAR

1шт.

RETAINING

2шт.

29

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

PISTON SUPPORT

3шт.

140687

1/4-28 SQ MACH SCREW

3шт.

30

404199R2

CARRIER

DIRECT DRIVE CLUTCH DISC

1шт.

31

336000R1

SNAP RING,#175, 1.640", Ext

RING, DISC CARRIER RETAINING

1шт.

32

404200R1

GEAR

DIRECT DRIVE HUB - -28 T

1шт.

33

550839R91

BEARING, NEEDLE

BEARING, CLUTCH SHAFT NEEDLE

2шт.

33

531436R91

NEEDLE BEARING

BEARING, CLUTCH SHAFT NEEDLE - OPTIONAL

2шт.

34

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, DIRECT DRIVE GEAR BALL - OPTIONAL W/42348D, 398323R91, 528088R91 AND 3066862R91

1шт.

34

42347D

BALL BEARING

BEARING, DIRECT DRIVE GEAR BALL - OPTIONAL W/ST243, 398323R91, 528088R91 AND 3066862R91

1шт.

34

398323R91

BALL BEARING

BEARING, DIRECT DRIVE GEAR BALL - OPTIONAL W/ST243, 42347D, 528088R91 AND 3066862R91

1шт.

34

528088R91

BALL BEARING

BEARING, DIRECT DRIVE GEAR BALL - OPTIONAL W/ST 243, 42347D, 398323R91 AND 3066862R91

1шт.

34

3066862R91

BALL BEARING

BEARING, DIRECT DRIVE GEAR BALL - OPTIONAL W/ST243, 42347D, 398323R91, 528088R91

1шт.

35

404104R1

SHAFT

TA

1шт.

36

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

1шт.

533960R91

NEEDLE BEARING

BEARING, NEEDLE - OPTIONAL

1шт.

534936R92

PACKAGE

TA CLUTCH PLATE - SERVICE - NOT ILLUSTRATED - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

PLATE

5шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

PLATE

3шт.

Not available for service

1шт.

O-RING 402571R1

1шт.

Выбрано товаров: 60
