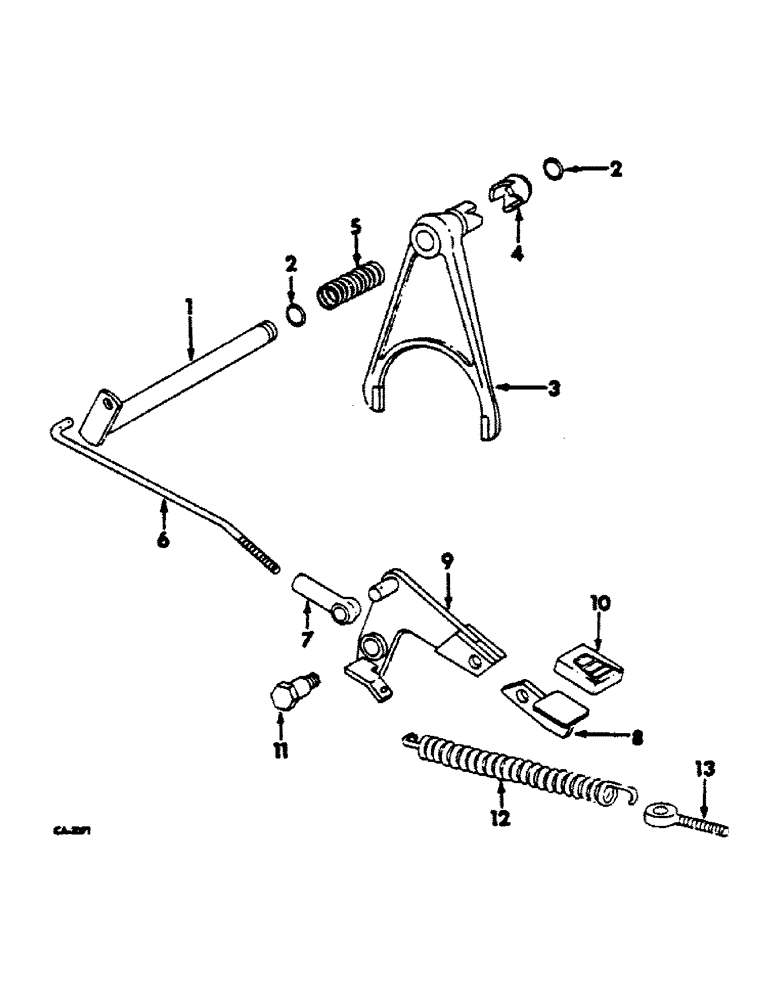

Запчасти Case IH 474 (07-25) - DIFFERENTIAL LOCK (04) - Drive Train

1

527871R1

SHAFT ASSY.

SHAFT ASSY, DIFF LOCK

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

3

527874R3

FORK

ASSY, DIFF LOCK SHAFT

1шт.

4

527877R1

CAM

DIFF LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

527878R1

SPRING

DIFF LOCK FORK ACTUATING

1шт.

6

527879R1

ROD

DIFF LOCK PEDAL

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 x 3/4 x 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

527880R1

END

DIFF LOCK PEDAL CONNECTING ROD

1шт.

8

531547R1

LEVER

ASSY, DIFF LOCK PEDAL FRONT

1шт.

9

531550R1

LEVER

ASSY, DIFF LOCK PEDAL REAR

1шт.

16809R1

PIN, 1/2 x 1-5/16 ROD END

1шт.

11002VA

WASHER

17/32 x 7/8 x 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

10

237672R1

PAD

DIFF LOCK PEDAL

1шт.

11

527885R1

BOLT

BOLT, DIFF LOCK PEDAL PIVOT

1шт.

12

530046R1

BOLT

PEDAL RETURN SPRING EYE

1шт.

551658R1

WASHER

25/32 x 1-1/8 x 22 GA

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 GA

1шт.

102635

NUT,3/8"-16, G5

2шт.

13

527886R1

VALVE SPRING

SPRING, DIFF LOCK PEDAL RETURN

1шт.
