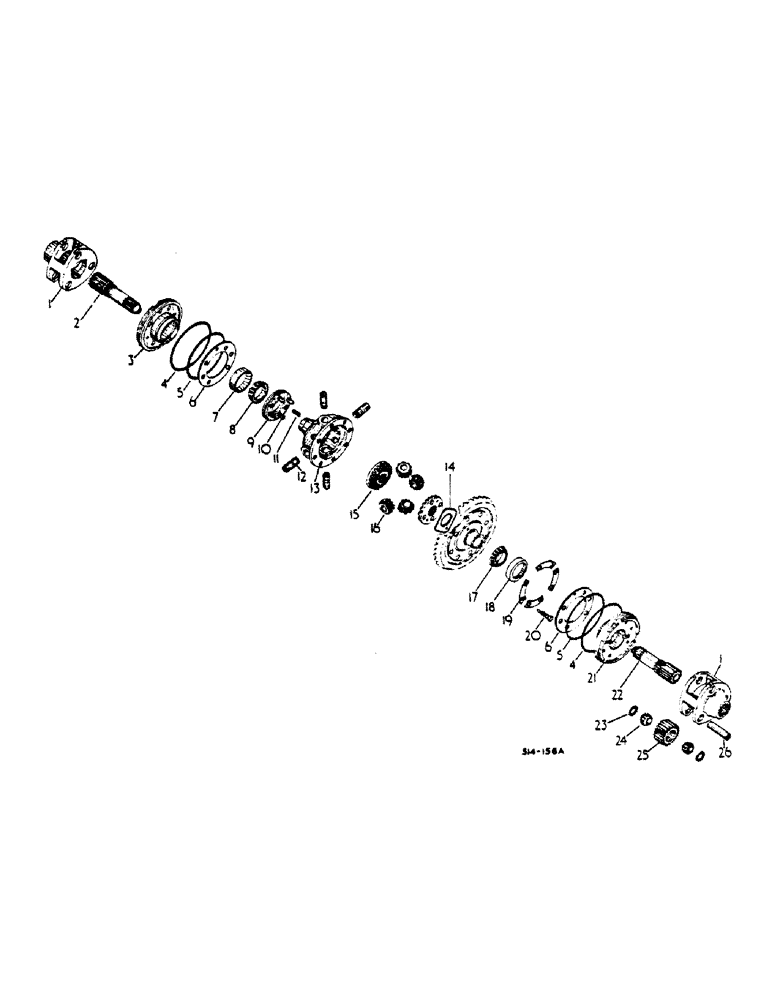

Запчасти Case IH 474 (07-24) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

404344R2

GEAR

CARRIER, PLANET GEAR

2шт.

2

404343R1

SHAFT

PLANETARY DRIVE R.H.

1шт.

3

399770R1

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG R.H.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 1/2 x 1/8 - DIFFERENTIAL BRG CARRIER

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16 - DIFFERENTIAL BRG CARRIER SEAL

2шт.

6

65419C1

BEARING CARRIER

PACKAGE, DIFFERENTIAL BRG CARRIER SHIM

1шт.

SERVICE

2шт.

7

105407H

BEARING, DIFFERENTIAL CUP R.H.

1шт.

7

388533R1

BEARING CUP

BEARING, DIFFERENTIAL CUP R.H. - OPTIONAL

1шт.

8

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, DIFFERENTIAL CONE R.H.

1шт.

8

31430H

BEARING

ASSY, DIFFERENTIAL CONE R.H. - OPTIONAL

1шт.

9

399764R11

LOCKING RING

RING ASSY, DIFFERENTIAL LOCK

1шт.

10

399765R1

PIN

COUPLING

4шт.

11

400867R1

SPRING

DIFFERENTIAL LOCK

2шт.

12

399804R1

PIN

DIFFERENTIAL PINION

4шт.

13

399763R1

PINION CARRIER

CARRIER, DIFFERENTIAL

1шт.

14

399778R1

THRUST WASHER

DIFFERENTIAL BEVEL GEAR THRUST

1шт.

15

404336R1

PINION

GEAR, DIFFERENTIAL BEVEL 20T

2шт.

16

399776R1

PINION

GEAR, DIFFERENTIAL PINION 10T

4шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, DIFFERENTIAL L.H. CONE

1шт.

17

399767R91

BEARING CONE

BEARING ASSY, DIFFERENTIAL L.H. CONE - OPTIONAL

1шт.

18

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING, DIFFERENTIAL CUP L.H.

1шт.

18

63329R1

BEARING CUP

BEARING, DIFFERENTIAL CUP L.H. - OPTIONAL

1шт.

19

399780R1

SUPPORT, BEVEL GEAR SCREWS LOCK

4шт.

20

399779R1

BOLT

1/2-13 x 2-1/8, Dowel

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

7шт.

21

399769R1

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG L.H.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

22

404342R1

SHAFT

PLANETARY DRIVE L.H.

1шт.

23

65421C1

SHIM KIT

PACKAGE, PLANET GEAR SHIM SERVICE

1шт.

24

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING, ASSY., PLANET GEAR CONE

12шт.

25

66129C1

KIT

PACKAGE, PLANET GEAR - CONSISTS OF

2шт.

NSS

NOT SOLD SEPARAT

GEAR

3шт.

Not available for service

1шт.

26

399812R1

SHAFT

PIN, PLANET SHAFT

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.
