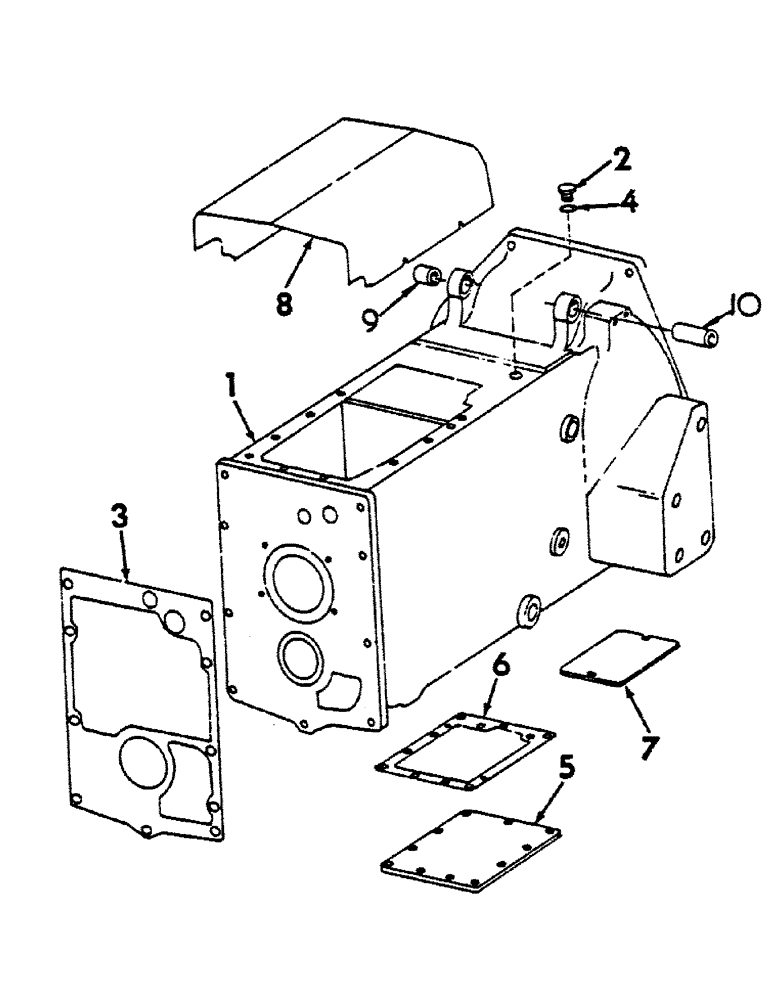

Запчасти Case IH 474 (07-19) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

537097R93

CLUTCH HOUSING

HOUSING ASSY, CLUTCH - ALSO INCLUDES BEARING 399820R91 OR 527746R91 IN SPEED TRANSMISSION

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

To rear frame Hex, 1/2"-13 x 1 1/2", G5, Full Thd

9шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 HEX HD CAP THRU SPACER & PAN TO CLUTCH HSG

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru clutch hsg & spacer to crankcase Hex, 1/2"-13 x 3 1/4", G5

2шт.

179887

CABLE

Thru spacer to clutch hsg Hex, 1/2"-13 x 1 3/4", G5

6шт.

3113103R1

PLUG

3/4-14 AUTOMOTIVE HEX HD PIPE

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 CUP

1шт.

2

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

3

399814R2

GASKET

CLUTCH HOUSING TO REAR FRAME

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

5

402182R1

COVER

CLUTCH HOUSING BOTTOM REAR

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

402183R1

RING

GASKET, CLUTCH HOUSING BOTTOM REA

1шт.

COVER

1шт.

7

399817R1

COVER

CLUTCH COMPARTMENT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

534126R1

COVER

ASSY, CLUTCH HOUSING

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4-20 x 3/8 C-Z SLT PAN H

1шт.

MACH

4шт.

9

539245R1

BUSHING

CLUTCH AND BRAKE SHAFT

1шт.

10

537099R1

NO LONGER SERVICED

BUSHING, L.H. BRAKE PEDAL PIVOT

1шт.
