Запчасти Case IH 474 (07-17) - RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

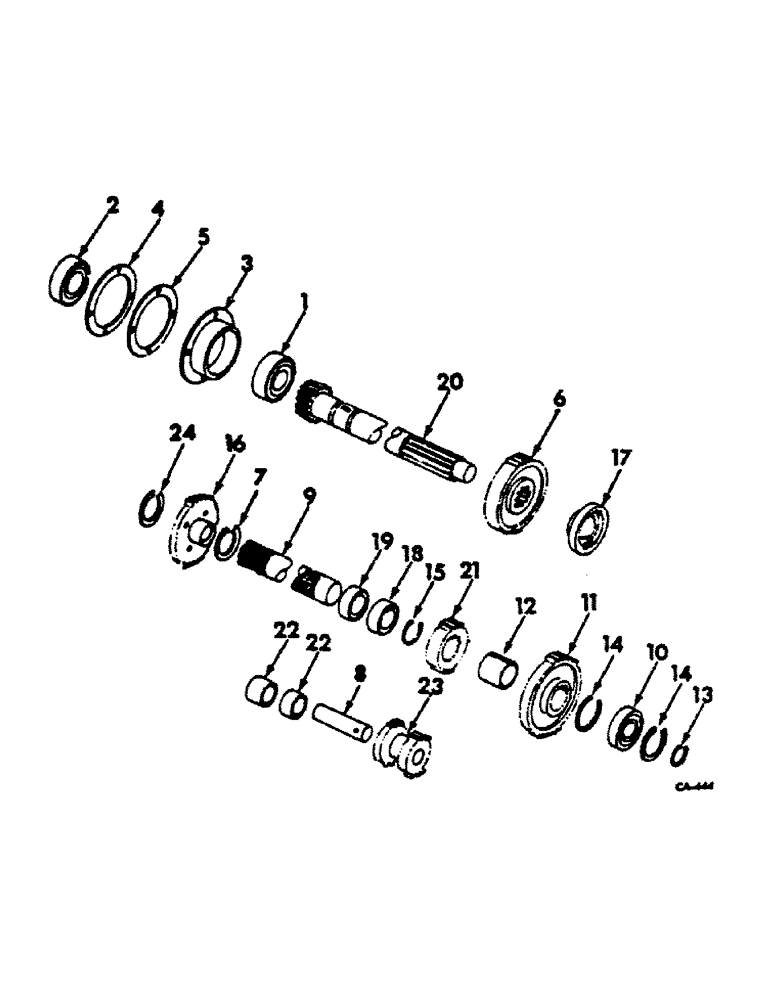

Схема запчастей Case IH 474 - (07-17) - RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train
12
6
19
15
13
5
7
11
24
9
2
17
22
10
20
8
23
14
1
3
14
21
16
18
4
22

Артикул

Название

Примечание

Количество

1

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT - OPTIONAL W/399822R91

1шт.

1

399822R91

ROLLER BEARING

BEARING ASSY, MAIN SHAFT FRONT - OPTIONAL W/399821R91

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR - OPTIONAL W/399824R91

1шт.

2

399824R91

ROLLER BEARING

BEARING ASSY, MAIN SHAFT REAR - OPTIONAL W/399823R91

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

SHIM, MAIN SHAFT BRG CAGE .004 - ORDER PACKAGE 65423C1

1шт.

5

SHIM, MAIN SHAFT BRG CAGE .007 - ORDER PACKAGE 65423C1

1шт.

6

399461R1

GEAR

FWD REVERSE SLIDING 40T - SYNCHROMESH DRIVE TRACTORS - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

6

399462R1

GEAR

FWD REVERSE SLIDING 42T - SYNCHROMESH DRIVE TRACTORS - FAST SPEED DRIVE TRAIN TYPE B

1шт.

6

399829R1

GEAR WHEEL

GEAR, HI-LO SLIDING 42T - HYDROSTATIC DRIVE TRACTORS - HAND SPEED CONTROL

1шт.

6

536911R

GEAR, HI-LO SLIDING 44T - HYDROSTATIC DRIVE TRACTORS - FOOT SPEED CONTROL

1шт.

7

399837R1

SNAP RING,#118, 1.121", Ext

RING, PUMP DRIVE GEAR RETAINER SNAP

1шт.

8

399838R2

SHAFT

REVERSE IDLER - SYNCHROMESH DRIVE TRACTORS

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

9

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

10

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/360635R91, 528101R91, 528102R91, 3047867 AND 3069304R91

1шт.

10

360635R91

BEARING, BALL

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/ST572, 528101R91, 528102R91, 3047867R91 AND 3069304R91

1шт.

10

528101R91

BEARING, BALL

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/ST572, 360635R91 528102R91, 3047867R91 AND 3069304R91

1шт.

10

528102R91

BEARING, BALL

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/ST572, 360635R91 528101R91, 3047867R91 AND 3069304R91

1шт.

10

3047867R91

BEARING, BALL

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/ST572, 360635R91 528101R91, 528102R91 AND 3069304R91

1шт.

10

3069304R91

BALL BEARING

BEARING, COUNTERSHAFT FRONT BALL - OPTIONAL W/ST572, 360635R91 528101R91, 528102R91 AND 3047867R91

1шт.

11

404097R1

GEAR

CONSTANT MESH 46T - SYNCHROMESH DRIVE TRACTORS

1шт.

11

404098R1

GEAR

CONSTANT MESH 40T - HYDROSTATIC DRIVE TRACTORS

1шт.

12

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

13

327068R1

RING, SNAP

RING, COUNTERSHAFT BRG EXT SNAP

1шт.

14

399832R1

RING, SNAP

RING, COUNTERSHAFT BRG INT SNAP

2шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, LO RANGE DRIVING GEAR RET SNAP

1шт.

16

404218R1

GEAR

PUMP DRIVE -55T - TRACTORS W/DUAL SPEED IPTO

1шт.

17

399830R2

COLLAR

HI-SPEED SHIFT - SYNCHROMESH DRIVE TRACTORS

1шт.

18

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, COUNTERSHAFT NEEDLE - OPTIONAL W/527746R91

1шт.

18

527746R91

BEARING, NEEDLE

BEARING, COUNTERSHAFT NEEDLE - OPTIONAL W/399820R91

1шт.

19

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, PUMP DRIVE GEAR

1шт.

19

527747R91

BEARING, NEEDLE

BEARING, PUMP DRIVE GEAR - OPTIONAL

1шт.

20

65254C1

SHAFT

SET, BEVEL GEARS MATCHED SET, BEVEL GEARS MATCHED 12/53

1шт.

NSS

NOT SOLD SEPARAT

SHAFT 35257C1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

GEAR - 399452R1

1шт.

Not available for service

1шт.

20

65255C1

GEAR SET

SET, BEVEL GEARS MATCHED SET, BEVEL GEARS MATSHED 14/51

1шт.

NSS

NOT SOLD SEPARAT

SHAFT 65256C1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

GEAR 399453R1

1шт.

Not available for service

1шт.

21

404100R1

PINION

GEAR, LO RANGE DRIVING - 27T - SYNCHROMESH DRIVE TRACTORS - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

21

404099R1

GEAR

LO RANGE DRIVING -25T - SYNCHROMESH DRIVE TRACTORS - FAST SPEED DRIVE TRAIN TYPE B - HYDROSTATIC DRIVE TRACTORS - HAND SPEED CONTROL

1шт.

21

536910R1

PINION

GEAR, LO RANGE DRIVING - 24T - HYDROSTATIC DRIVE TRACTORS - FOOT SPEED CONTROL

1шт.

22

3112844R91

BEARING, NEEDLE

BEARING REVERSE IDLER GEAR NEEDLE - SYNCHROMESH DRIVE TRACTORS - OPTIONAL W/3 113041R91

2шт.

22

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE - SYNCHROMESH DRIVE TRACTORS - OPTIONAL W/3 112844R91

2шт.

23

3112847R91

KIT

PACKAGE, REVERSE IDLER GEAR NEEDLE - SYNCHROMESH DRIVE TRACTORS - AR/AS TRANSMISSION - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

Not available for service

1шт.

BEARING 3112844R91

2шт.

SPACER 3112845R1

1шт.

WASHER 3112846R1

2шт.

SHAFT - 399838R2

1шт.

23

3112848R91

10 NEEDLE BRG KIT

PACKAGE, REVERSE IDLER GEAR NEEDLE - SYNCHROMESH DRIVE TRACTORS - BR/BS TRANSMISSION - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

Not available for service

1шт.

BEARING 3112844R91

2шт.

SPACER 3112845R1

1шт.

WASHER 3112846R1

2шт.

SHAFT - 399838R2

1шт.

24

533266R1

RING, SNAP

RING, IPTO FRONT DRIVEN SHAFT REAR SNAP

1шт.

3112845R1

SPACER

IDLER BEARING - SYNCHROMESH DRIVE TRACTORS

1шт.

3112846R1

THRUST WASHER

WASHER, IDLER THRUST - SYNCHROMESH DRIVE TRACTORS

2шт.

65423C1

SHIM KIT

PACKAGE, MAIN SHAFT BRG CAGE SHIM SERVICE

1шт.

Выбрано товаров: 67
