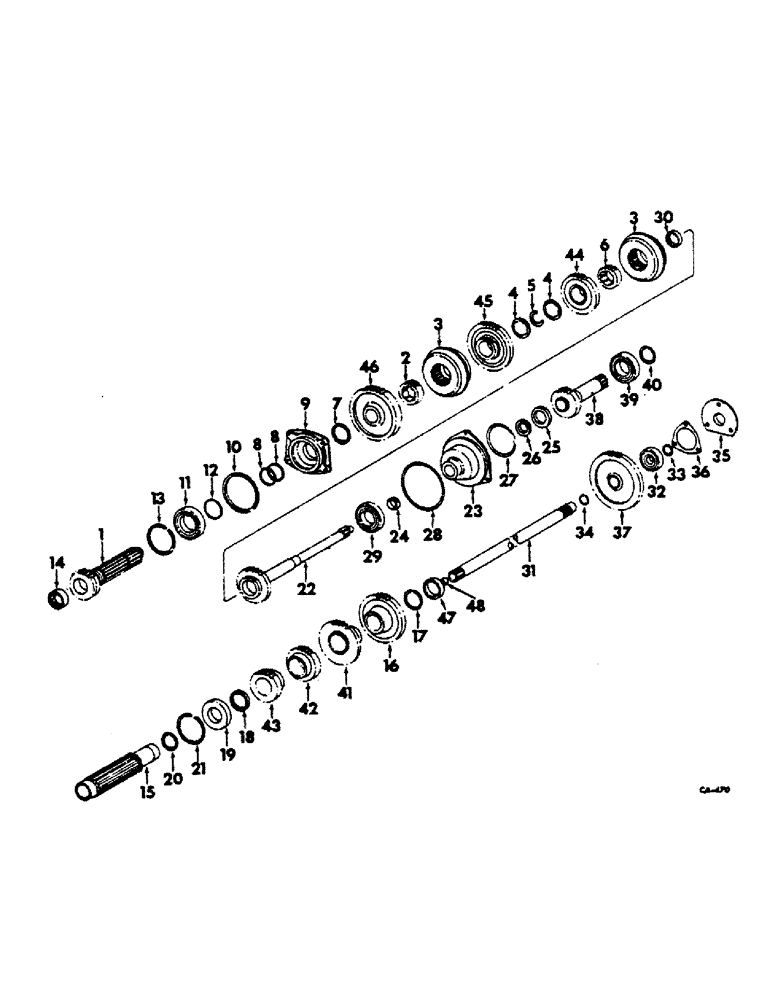

Запчасти Case IH 474 (07-15) - SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

65258C1

SHAFT

MAIN

1шт.

66014C1

SNAP RING

RING, MAIN SHAFT BRG INT SNAP

1шт.

2

398325R1

HUB

1ST AND 2ND SPEED SHIFT

1шт.

3

65793C1

SYNCHRONIZER

PACKAGE, SYNCHRONIZER SERVICE

2шт.

4

398328R1

THRUST WASHER

WASHER, MAIN SHAFT THRUST

2шт.

5

398329R1

CIRCLIP

RING, SYNCHRONIZER LOCATING SNAP

1шт.

6

398325R1

HUB

3RD AND 4TH SPEED SHIFT

1шт.

7

398332R1

WASHER

RING

1шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

MAINSHAFT LUB LINE SEAL

2шт.

9

534411R1

BEARING ASSY

CAGE ASSY, MAIN SHAFT BRG

4шт.

NLS

NO LONGER SERVICED

4шт.

10

- NOT USED -

1шт.

11

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, MAIN SHAFT BALL - OPTIONAL W/704235R91, ST264, 3048701R91 AND 704234R91

1шт.

11

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, MAIN SHAFT BALL - OPTIONAL W/20161D, 3048701R91, AND 704234R91

1шт.

11

3048701R91

BALL BEARING

BEARING, MAIN SHAFT BALL - OPTIONAL W/20161D, ST264, AND 704234R91

1шт.

11

704234R91

BALL BEARING

BEARING, MAIN SHAFT BALL - OPTIONAL W/20191D, ST264 AND 3048701R91

1шт.

12

327068R1

RING, SNAP

RING, MAIN SHAFT BRG RETAINER OUTER

1шт.

SNAP

1шт.

13

398334R1

SNAP RING

RING, MAIN SHAFT BRG RETAINER INNER

1шт.

SNAP

1шт.

14

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

MAIN SHAFT NEEDLE

1шт.

15

404089R1

SHAFT

SPEED TRANSMISSION

1шт.

16

404090R1

PINION

GEAR, CONSTANT MESH DRIVEN 39T

1шт.

17

398264R1

SNAP RING,#215, 2.026", Ext

RING, CONSTANT MESH DRIVEN GEAR

1шт.

RETAINING SNAP

1шт.

18

398268R1

BUSHING

RING SPACER

1шт.

19

452883R91

BALL BEARING

BEARING, COUNTERSHAFT BALL - OPTIONAL W/13176D, ST201, 704704R91, 705238R91 AND 528100R91

1шт.

19

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

BEARING, COUNTERSHAFT BALL - OPTIONAL W/452883R91, ST201, 704704R91, 705238R91 AND 528100R91

1шт.

19

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, COUNTERSHAFT BALL - OPTIONAL W/452 883R91, 13176D, 704704R91, 705238R91 AND 528100R91

1шт.

19

704704R91

BALL BEARING

BEARING, COUNTERSHAFT BALL - OPTIONAL W/452883R91, 13176D, ST201, 705238R91 AND 528100R91

1шт.

19

705238R91

BALL BEARING

BEARING, COUNTERSHAFT BALL - OPTIONAL W/452883R91, 13176D, ST201, 704704R91 AND 528100R91

1шт.

19

528100R91

BALL BEARING

BEARING, COUNTERSHAFT BALL - OPTIONAL W/452 883R91, 13176D, ST201, 704704R91 AND 705238R91

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

RING, COUNTERSHAFT BRG SNAP

1шт.

21

574964R1

RING, SNAP

RING, COUNTERSHAFT BRG SNAP

1шт.

22

398320R1

SHAFT

CLUTCH

1шт.

23

398318R11

NO LONGER SERVICED

CAGE ASSY, IPTO + CLUTCH SHAFT BRG

1шт.

24

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

CLUTCH SHAFT

1шт.

25

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO DRIVE SHAFT OIL

1шт.

26

382230R91

OIL SEAL

CLUTCH SHAFT OIL

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

1шт.

28

343942R1

O-RING,5.359" ID x 0.139" Width

5-3/8 x 5-5/8 x 1/8 BRG CAGE

1шт.

29

398323R91

BALL BEARING

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/ST 243, 42347D, 3066862R91 AND 528088R91

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/398323R91, 42347D, 3066862R91 AND528088R91

1шт.

29

42347D

BALL BEARING

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/398323R91, ST243, 3066862R91 AND528088R91

1шт.

29

3066862R91

BALL BEARING

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/398323R91, ST243 42347D, AND 528088R91

1шт.

29

528088R91

BALL BEARING

BEARING, CLUTCH SHAFT BALL - OPTIONAL W/398323R91, ST243, 42347D AND 3066862R91

1шт.

30

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, CLUTCH SHAFT NEEDLE

1шт.

533960R91

NEEDLE BEARING

BEARING, CLUTCH SHAFT NEEDLE - OPTIONAL

1шт.

31

536748R1

SHAFT ASSY.

SHAFT ASSY, IPTO DRIVEN

1шт.

32

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, IPTO DRIVEN SHAFT FRONT BALL

1шт.

32

65353C91

BALL BEARING

BEARING, IPTO DRIVEN SHAFT FRONT BALL - OPTIONAL

1шт.

33

555601R1

RING, SNAP

RING, IPTO DRIVEN SHAFT FRONT BRG

1шт.

RETAINER SNAP

1шт.

34

399837R1

SNAP RING,#118, 1.121", Ext

RING, IPTO DRIVEN GEAR RETAINER SNAP

1шт.

35

398259R1

LARGE PLATE

RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

36

398260R2

GASKET

IPTO DRIVEN SHAFT FRONT BRG

1шт.

RETAINER

1шт.

37

404214R1

GEAR

IPTO DRIVEN -46T

1шт.

38

66347C1

CARRIER

SHAFT, IPTO DRIVE

1шт.

39

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, IPTO DRIVE SHAFT BALL

1шт.

39

65354C91

BALL BEARING

BEARING, IPTO DRIVE SHAFT BALL - OPTIONAL

1шт.

40

379511R1

SNAP RING,#177, 1.657", Ext

RING, IPTO DRIVE SHAFT BRG RETAINER

1шт.

SNAP

1шт.

41

404092R1

PINION

GEAR, 3RD SPEED DRIVE -34T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

41

404091R1

PINION

GEAR, 4TH SPEED DRIVE -43T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

42

404094R1

PINION

GEAR, 2ND SPEED DRIVE -28T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

42

404092R1

PINION

GEAR, 2ND SPEED DRIVE -34T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

43

404095R1

GEAR

1ST SPEED DRIVE -23T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

43

404093R1

GEAR

1ST SPEED DRIVE -26T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

43

535242R1

GEAR

1ST SPEED DRIVING -30T - SLOW SPEED DRIVE TRAIN TYPE A - LOW SPEED FIRST

1шт.

44

398330R1

GEAR

3RD SPEED DRIVEN -33T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

44

398327R1

GEAR

4TH SPEED DRIVEN -24T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

45

398270R1

GEAR

2ND SPEED DRIVEN -39T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

45

398330R1

GEAR

2ND SPEED DRIVEN -33T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

46

398269R1

GEAR

1ST SPEED DRIVEN -44T - SLOW SPEED DRIVE TRAIN TYPE A

1шт.

46

398331R1

GEAR

1ST SPEED DRIVEN -41T - FAST SPEED DRIVE TRAIN TYPE B

1шт.

46

535243R1

GEAR

1ST SPEED DRIVING -65T - SLOW SPEED DRIVE TRAIN TYPE A - LOW SPEED DRIVE

1шт.

47

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, COUNTERSHAFT FRONT NEEDLE - OPTIONAL W/527746R91

1шт.

47

527746R91

BEARING, NEEDLE

BEARING, COUNTERSHAFT FRONT NEEDLE - OPTIONAL W/399820R91

1шт.

48

533325R91

BEARING, NEEDLE

BEARING, IPTO DRIVEN SHAFT NEEDLE

1шт.

48

538467R91

BEARING, NEEDLE

BEARING, IPTO DRIVEN SHAFT NEEDLE - OPTIONAL

1шт.
