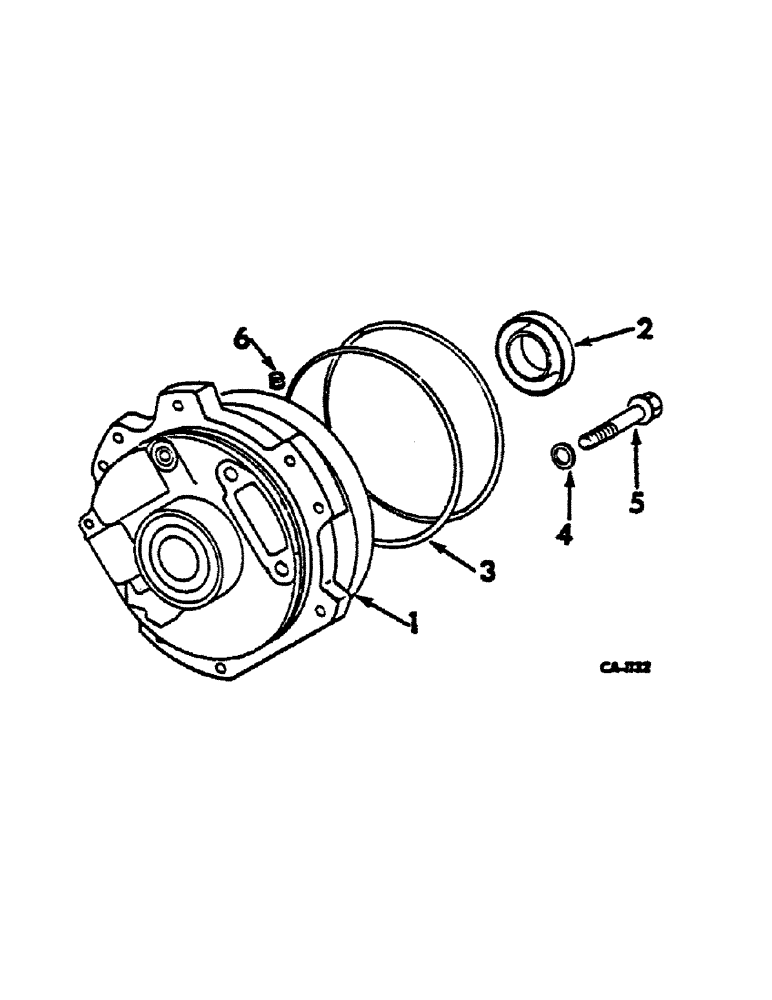

Запчасти Case IH 474 (07-14) - HYDROSTATIC CHARGE PUMP (04) - Drive Train

1

401020R91

PUMP

ASSY, CHARGE - OPTIONAL W/66454C91

1шт.

1

66454C91

PUMP, HYDRAULIC

PUMP ASSY, CHARGE - OPTIONAL W/401020R91 - CONSISTS OF REF NOS 2 TO 6 AND SLIPPER PIN KIT

1шт.

2

405743R91

OIL SEAL

OIL

1шт.

3

405172R1

RING

RECTANGULAR SEAL

2шт.

4

397439R1

WASHER

- OPTIONAL W/565832R1

2шт.

4

565832R1

WASHER

- OPTIONAL W/397439R1

2шт.

5

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

SCREW, HEX WASHER HD

2шт.

6

397433R1

SPRING

SLIPPER

8шт.

ref

Part No.

English

1шт.

537786R1

KIT

SLIPPER PIN, NOT ILLUSTRATED

1шт.
