Запчасти Case IH 474 (07-09) - PUMP SERVO CYLINDER (04) - Drive Train

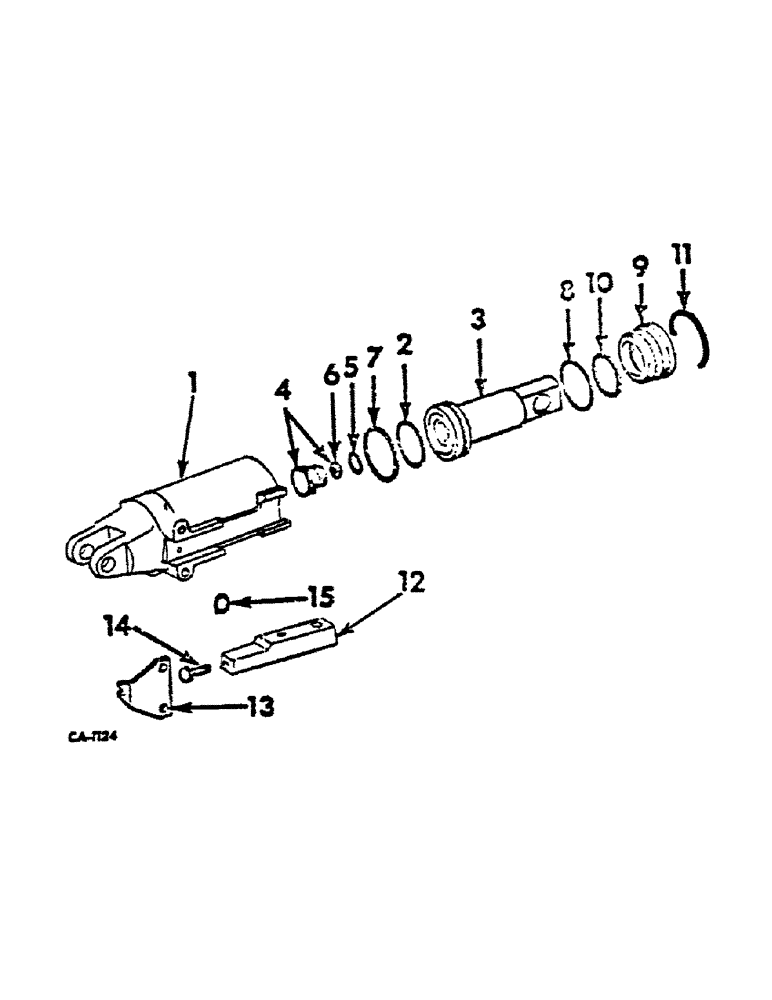

Схема запчастей Case IH 474 - (07-09) - PUMP SERVO CYLINDER (04) - Drive Train
1
2
7
10
13
5
15
12
8
11
14
3
6
4
9

Артикул

Название

Примечание

Количество

CYLINDER ASSY, PUMP SERVO - HAND SPEED CONTROL

1шт.

CYLINDER ASSY, PUMP SERVO - FOOT SPEED CONTROL

1шт.

1

401079R1

BODY

1шт.

2

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

3

401080R1

PISTON

1шт.

4

401082R11

PLUG

ASSY, FIXED ORIFICE - USED W/HAND SPEED CONTROL CYLINDER

1шт.

4

535851R11

PLUG

ASSY, FIXED ORIFICE - USED W/FOOT SPEED CONTROL CYLINDER

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

6

529960R1

STRAINER ELEMENT

STRAINER

1шт.

7

405311R1

RING

PISTON SEALING

1шт.

8

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

1шт.

9

401084R1

GUIDE

1шт.

10

405310R1

RING

GUIDE SEALING INNER

1шт.

11

388968R1

ELECTRICAL WIRE

WIRE, RETAINING

1шт.

12

401086R1

BLOCK

- USED W/HAND SPEED CONTROL CYLINDER

1шт.

12

401086R11

NO LONGER SERVICED

BLOCK ASSY, VARIABLE ORIFICE ADJ - USED W/FOOT SPEED CONTROL CYLINDER

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN, 5/16 x 7/8 DOWEL

1шт.

13

401087R1

BRACKET

ADJ BLOCK

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

ADJ BLOCK

1шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 x 1-7/16

1шт.

401088R91

STRIPPER PACKAGE

PACKAGE, PUMP SERVO CYLINDER O-RING AND SEAL SERVICE, NOT ILLUSTRATED - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

O-RING 379141R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING 405311R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 570828R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING 405310R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 328138R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 392385R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING 396109R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 369751R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE 166438R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING - 347070R1

1шт.

Not available for service

1шт.

Выбрано товаров: 43
