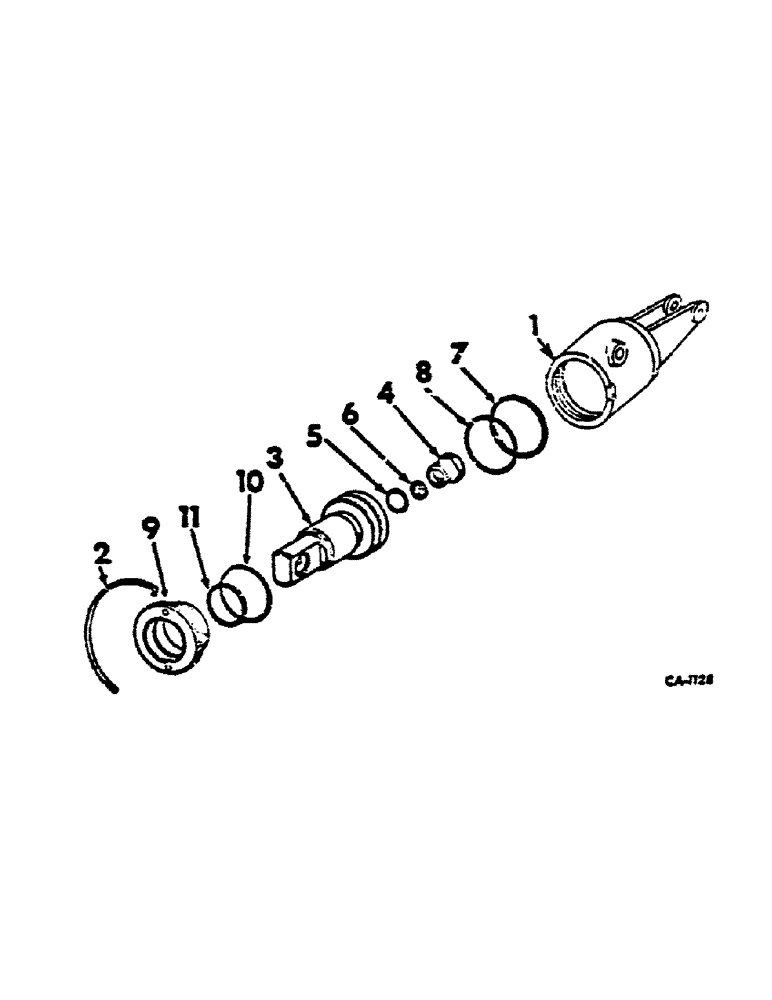

Запчасти Case IH 474 (07-08) - MOTOR SERVO CYLINDER (04) - Drive Train

CYLINDER ASSY, MOTOR SERVO

1шт.

1

401089R1

BODY

CYLINDER

1шт.

2

396106R1

ELECTRICAL WIRE

WIRE, RETAINING

1шт.

3

401090R1

PISTON

1шт.

4

406984R11

VENT

PLUG ASSY, FIXED ORIFICE

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - FIXED ORIFICE - NOT SERVICED SEPARATELY, ORDER MOTOR SERVO CYLINDER O-RING PACKAGE 401093R91

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER

1шт.

7

396103R1

OLIVE

RING, PISTON SEALING - NOT SERVICED SEPARATELY, ORDER MOTOR SERVO CYLINDER O-RING PACKAGE 401093R921

1шт.

8

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-5/16 x 3/32 - PISTON SEALING - NOT SERVICED SEPARATELY, ORDER MOTOR SERVO CYLINDER O-RING PACKAGE 401093R91

2шт.

9

401091R1

GUIDE

PISTON

1шт.

10

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-5/16 x 2-1/8 x 3/32 - PISTON GUIDE - NOT SERVICED SEPARATELY, ORDER MOTOR SERVO CYLINDER O-RING PACKAGE 401093R91

1шт.

11

401092R1

RING

GUIDE SEALING INNER - NOT SERVICED SEPARATELY, ORDER MOTOR SERVO CYLINDER O-RING PACKAGE 401093R91

1шт.

401093R91

PACKAGE

MOTOR SERVO CYLINDER O-RING, NOT ILLUSTRATED

1шт.

AND SEAL SERVICE - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

RING 396103R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 382781R1

2шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 364885R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING 401902R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE 166438R1

2шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 384498R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

O-RING 384885R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING - 396109R1

1шт.

Not available for service

1шт.
