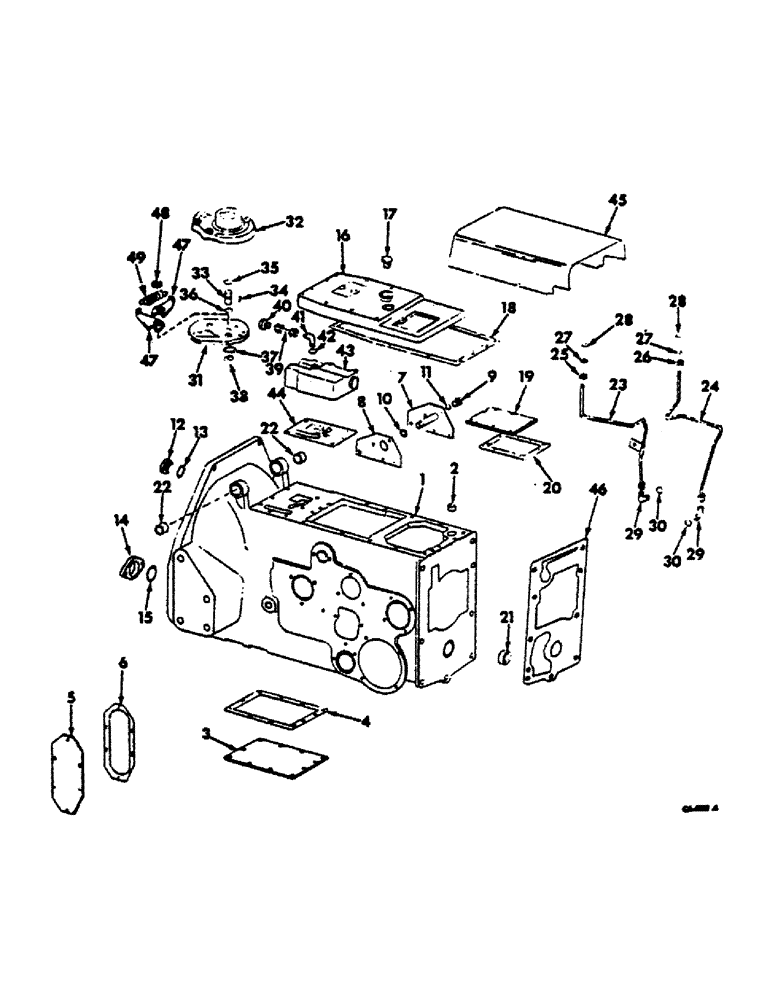

Запчасти Case IH 474 (07-02) - HYDROSTATIC DRIVE HOUSING, CONTROL, CAM. MULTI VALVE (04) - Drive Train

1

537098R92

HOUSING

ASSY, HYDROSTATIC DRIVE - INCLUDE REF NOS 21 AND 22

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 DOWEL

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 DOWEL

1шт.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 DOWEL

2шт.

19892R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-1/2 DOWEL

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

+E472 - To rear frame Hex, 1/2"-13 x 1 1/2", G5, Full Thd

9шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 HEX HD CAP - THRU SPACER TO CRANKCASE

4шт.

179887

CABLE

6шт.

2

400947R1

PIPE

OVERFLOW

1шт.

3113103R1

PLUG

3/4-14 AUTOMOTIVE HEX HD PIPE

1шт.

3

402182R1

COVER

BOTTOM

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.

4

400949R1

GASKET

BOTTOM COVER

1шт.

5

400950R1

COVER

RELIEF VALVE ACCESS - 2 REQD FOR HAND SPEED CONTROL - 1 REQD FOR FOOT SPEED CONTROL

1шт.

5

405079R1

COVER

ASSY, RELIEF VALVE ACCESS - FOOT SPEED CONTROL

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

12шт.

37564HA

WASHER

5/16 COPPER

2шт.

6

400951R1

GASKET

RELIEF VALVE ACCESS COVER

2шт.

7

405195R1

COVER ASSY

PRESSURE CHECK

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

4шт.

37564HA

WASHER

5/16 COPPER

1шт.

8

405193R1

GASKET

ACCESS COVER

1шт.

9

405192R1

PLUG

PRESSURE CHECK

1шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16 - PRESSURE CHECK BUSHING

1шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Pressure check plug

1шт.

12

9410361

PLUG

1-1/16-12 C-Z STR THD O RING

1шт.

BOSS

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE

1шт.

14

400954R1

COVER

FRONT IPTO BRG

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

21480R1

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2 x 2-3/16 x 3/32 - FRONT IPTO BRG COVER

1шт.

16

66544C91

COVER

ASSY, CAM ACTUATING - HAND SPEED CONTROL

1шт.

19892R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-1/2 DOWEL

1шт.

66534C91

NEEDLE BEARING

ASSY, NEEDLE - OPTIONAL W/67123C91

2шт.

67123C91

NO LONGER SERVICED

BEARING ASSY, NEEDLE - OPTIONAL W/66534C91

2шт.

16

66545C91

COVER

ASSY, CAM ACTUATING - FOOT SPEED CONTROL

1шт.

19892R1

SPLIT PIN/SAFETY PIN

PIN, 3/88 x 1-1/2 DOWEL

1шт.

66534C91

NEEDLE BEARING

ASSY, NEEDLE - OPTIONAL W/67123C91

2шт.

67123C91

NO LONGER SERVICED

BEARING ASSY, NEEDLE - OPTIONAL W/66534C91

2шт.

172531

PLUG,Exp, 3/4"

EXPANSION

1шт.

17

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4 SQ SOC HD PIPE

1шт.

18

401019R2

GASKET

TOP COVER

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 HEX HD CAP

10шт.

19

400956R1

COVER

SERVO ACCESS

1шт.

20

400957R1

GASKET,0.76mm Thk

SERVO ACCESS COVER

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

2шт.

21

252050C91

OIL SEAL

IPTO SHAFT LIP - OPTIONAL W/530091R91

1шт.

21

530091R91

OIL SEAL

IPTO SHAFT LIP - OPTIONAL W/252050C91

1шт.

22

539245R1

BUSHING

HYDROSTATIC DRIVE HSG

1шт.

22

537099R1

NO LONGER SERVICED

BUSHING, LH BRAKE PEDAL PIVOT

1шт.

23

401001R1

TUBE

ASSY, FORWARD PRESSURE

1шт.

179814

SPACER

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 FLAT

1шт.

24

401005R1

TUBE

ASSY, RESERVE PRESSURE

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 FLAT

1шт.

25

402864R1

RETAINER

TUBE LOCK

1шт.

26

402865R1

LOCK

TUBE

2шт.

27

401017R1

RING

BACK-UP

2шт.

28

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

2шт.

29

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 DEG HYD FLARED TUBE

1шт.

90 DEG

2шт.

30

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

31

401050R31

CAM

ASSY, CONTROL - HAND SPEED CONTROL

1шт.

31

402179R31

SPARE PART

CAM ASSY, CONTROL

1шт.

FOOT SPEED CONTROL

1шт.

133765

SCREW,Sl Flat Hd, 1/4" - 20 x 7/16"

1/4-20 x 7/16 SLOT F HD MACH

3шт.

32

NOT SERVICED SEPARATELY, ORDER 401050R31.OR 402179R31 WHICH EVER IS APPLICABLE

1шт.

33

65458C2

SHAFT

CAM ACTUATING

1шт.

34

106751

KEY

3/16 x 3/4 WOODRUFF 9

1шт.

35

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

OIL, CAM ACTUATING SHAFT

1шт.

36

373692R1

RING

CAM RETAINING

1шт.

37

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

BEARING, NEEDLE THRUST - OPTIONAL W/530048R91

1шт.

37

530048R91

THRUST BEARING

BEARING, NEEDLE THRUST - OPTIONAL W/324105R91

1шт.

38

396795R1

THRUST WASHER

RACE, NEEDLE BRG THRUST - OPTIONAL W/530047R1

2шт.

38

530047R1

RACE

NEEDLE BRG THRUST - OPTIONAL W/396795R1

2шт.

39

533561R1

TUBE

ASSY, PRESSURE CHECK

1шт.

40

9403330

PLUG,7/16"-20, 37 Degree

7/16-20 27 DEG HYD FLARED

1шт.

41

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 DEG HYD FLARED

1шт.

42

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

43

BODY ASSY, MULTI-VALVE - FOR COMPONENTS, SEE LIST OF PA. UNDER DETAILS OF MULTI-VALVE

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

44

401056R1

GASKET

MULTIPLE VALVE BODY

1шт.

45

534126R11

COVER HOUSING

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4-20 x 3/8 C-Z SET PAN HD

1шт.

MACH

4шт.

46

399814R2

GASKET

HOUSING TO REAR FRAME

1шт.

47

402180R1

PLATE

CAM CENTRING - FOOT SPEED CONTROL

2шт.

48

567879R1

RING

RETAINING - FOOT SPEED CONTROL

1шт.

49

402181R1

SPRING

CENTRING - FOOT SPEED CONTROL

1шт.
