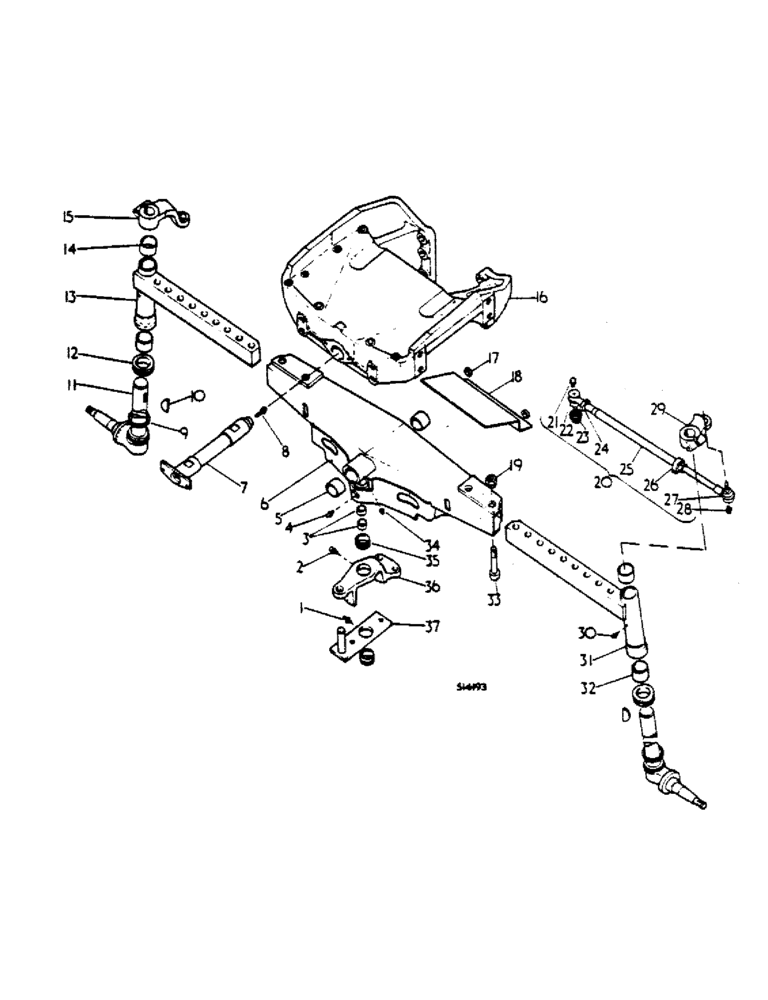

Запчасти Case IH 474 (14-02) - FRONT AXLE, STRAIGHT Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, DRIVE TYPE STR LUB 3/16

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 DEG DRIVE TYPE STR LUB

1шт.

3

405574R1

BUSHING

SUPPORT

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

539161R91

AXLE

ASSY, FRONT

1шт.

.

405574R1

BUSHING

CYL MOUNTING BRACKET

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, FRONT AXLE PIVOT

1шт.

.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 DEG ANGLE LUB

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R11

KNUCKLE JOINT

KNUCKLE ASSY, STEERING - LOW SPINDLE

2шт.

11

527292R91

STEERING KNUCKLE

KNUCKLE ASSY, STEERING - HIGH SPINDLE

2шт.

12

405831R91

BEARING

STEERING KNUCKLE THRUST - OPTIONAL W/527295R91

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING, STEERING KNUCKLE THRUST - OPTIONAL W/405831R91

2шт.

13

528836R92

EXTENSION

ASSY, FRONT AXLE R.H. - HIGH SPINDLE

1шт.

13

527811R92

EXTENSION

ASSY, FRONT AXLE R.H. - LOW SPINDLE

1шт.

14

376099R1

BUSHING

2шт.

15

527802R1

ARM

STEERING KNUCKLE R.H.

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405587R3

NO LONGER SERVICED

BOLSTER, FRONT

1шт.

.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 HEX HD CAP - OPTIONAL W/24970R1

4шт.

.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional w/271564

4шт.

.

396627R1

STUD

FRONT CRANKCASE

2шт.

.

425-1110

NUT,5/8"-18, G5

2шт.

17

534813R1

SPACER

BOLSTER AIR BAFFLE

2шт.

18

534812R1

BAFFLE

BOLSTER AIR

1шт.

.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 HEX HD CAP, Course Threads

2шт.

.

369936R1

WASHER

BOLSTER AIR BAFFLE

2шт.

19

405576R1

NUT

FRONT AXLE

4шт.

20

529495R91

TIE-ROD

ROD ASSY, TIE I.H.

2шт.

20

527807R92

ROD

ASSY, TIE - LEMFORDER

2шт.

20

3113664R91

ROD ASSY, TIE - ARMSTRONG - SERVICE PARTS LATER

2шт.

20

3113665R91

ROD

ASSY, TIE - AUTOMOTIVE PRODUCTS - SERVICE PARTS LATER

2шт.

21

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

.

I.H.

2шт.

22

527658R91

BALL JOINT

END ASSY, R.H.I.H.

2шт.

22

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

22

3113309R91

SWING JOINT

JOINT ASSY, BALL - LEMFORDER

2шт.

.

3113310R1

NUT

2шт.

.

3113311R1

PIN, COTTER

2шт.

23

358900R1

SEAL

COVER, DUST

2шт.

24

390686R1

JAM NUT

11/16-18 HEX JAM

2шт.

25

529496R1

TUBE

TIE ROD I.H.

2шт.

25

3113319R1

TUBE, OUTER - LEMFORDER

2шт.

26

43747D

CLAMP

I H.

2шт.

.

271505

BODY

7/16-20 HEX

2шт.

.

536165R1

SCREW, 7/16-20 x 1-7/8 HEX HD CAP

2шт.

.

9421096

LOCK WASHER,7/16"

Ext tooth 7/16"

2шт.

26

3113312R1

CLAMP, - LEMFORDER

2шт.

26

3113313R1

CLAMP, - LEMFORDER

2шт.

.

3113320R1

BOLT, CLAMP 8mm

2шт.

.

3113322R1

NUT, CLAMP 8mm

2шт.

.

3113324R1

WASHER, CLAMP 8mm

2шт.

.

3113321R1

BOLT, CLAMP 10mm

2шт.

.

3113323R1

NUT, CLAMP 10mm

2шт.

.

3113325R1

WASHER, CLAMP 10mm

2шт.

27

529497R91

END

ASSY, L.H. I.H.

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

3113308R91

BALL JOINT

JOINT, ASSY, BALL - LEMFORDER

1шт.

.

3113310R1

NUT

2шт.

.

3113311R1

PIN, COTTER

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, I.H. 1/4"-28 NPT x .54" lg

2шт.

29

527801R1

ARM

STEERING KNUCKLE L.H.

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

30

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB

2шт.

31

528835R92

EXTENSION

ASSY, FRONT AXLE L.H. - HIGH SPINDLE

1шт.

31

527810R92

EXTENSION

ASSY, FRONT AXLE L.H. - LOW SPINDLE

1шт.

32

376099R1

BUSHING

2шт.

33

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

34

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB

1шт.

35

379748R1

BUSHING

2шт.

36

405585R11

ARM

ASSY, PS CENTRE

1шт.

37

405580R11

BAR ASSY.

BAR, ASSY, PC CYL

1шт.

..

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

ref

PART NO.

English

1шт.

.

3113318R1

STUD

SPRING, STUD LOCATING - LEMFORDER - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.
