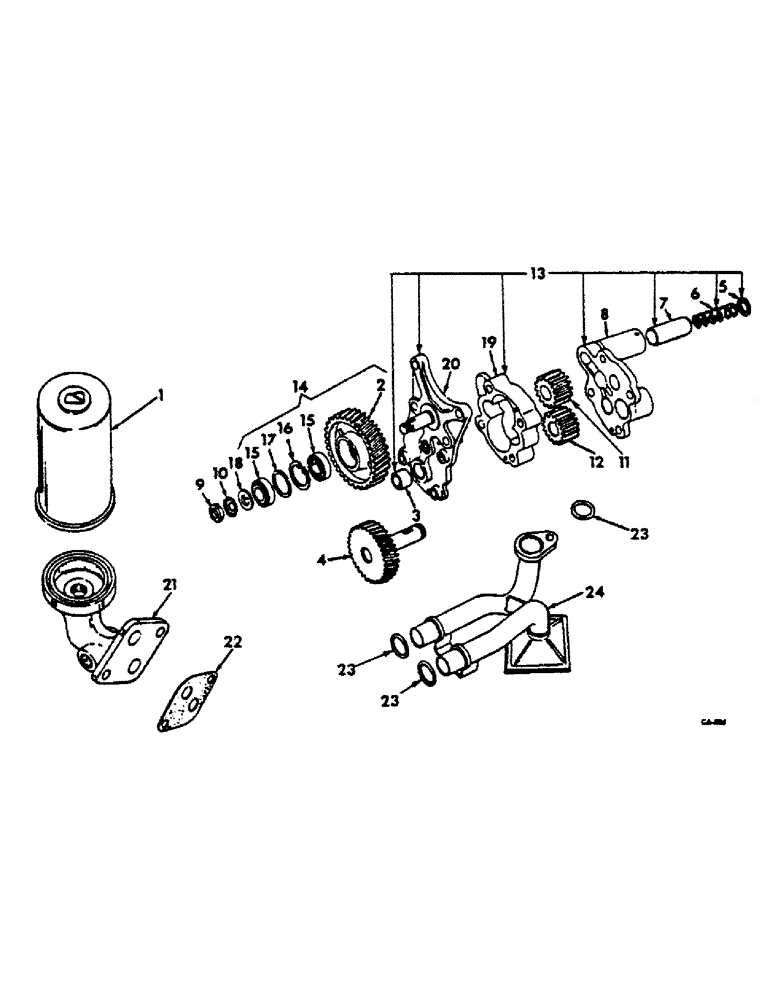

Запчасти Case IH 474 (12-29) - LUBRICATING OIL PUMP AND FILTER Power

3136431R91

PUMP

ASSY, OIL - CONSISTS OF REF NOS 2 THROUGH 20

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

138222

BOLT,Skt Hd, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 HEX SOC HD CAP

4шт.

1

3136046R93

FILTER, ENGINE OIL

FILTER, OIL - OPTIONAL W/398080R2

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER, OIL - OPTIONAL W/3136046R93

1шт.

2

GEAR - NOT SERVICED SEPARATELY

1шт.

3

BUSHING - NOT SERVICED SEPARATELY

1шт.

4

3136444R91

GEAR

ASSY, DRIVE

1шт.

5

3139620R1

SPRING WASHER

SPRING

1шт.

6

3136264R1

SPRING

PRESSURE RELIEF VALVE

1шт.

7

3055202R2

VALVE

PISTON RELIEF

1шт.

8

COVER ASSY, OIL PUMP - NOT SERVICED SEPARATELY ORDER CARRIER ASSY, 3136441R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 HEX

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

179827

FRONT AXLE

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

3055295R1

NUT

SHAFT

1шт.

10

3055296R1

WASHER

PLATE, LOCKING

1шт.

11

3132328R1

GEAR

IDLER

1шт.

12

3132502R1

GEAR

OIL PUMP

1шт.

13

3136441R91

ENGINE OIL PUMP

CARRIER ASSY, w/THREE PIN 932597R1 AND

1шт.

PIN 103387

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

14

3056852R11

IDLER GEAR

GEAR ASSY, IDLER

1шт.

15

3055293R91

TAPERED BEARING

BEARING ASSY, ROLLER - OPTIONAL W/3055294R91

2шт.

15

3055294R91

TAPERED BEARING

BEARING ASSY, ROLLER - OPTIONAL W/3055293R91

2шт.

16

933579R1

SNAP RING,M35, Int

1шт.

17

3055292R1

WASHER

WASHER

1шт.

18

3055371R1

WASHER

IDLER GEAR

1шт.

19

CASE, OIL PUMP GEAR - NOT SERVICED SEPARATELY

1шт.

20

CARRIER - NOT SERVICED SEPARATELY

1шт.

21

3136047R1

HEAD

SOCKET, OIL FILTER

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

22

3055237R1

GASKET

OIL FILTER SOCKET

1шт.

23

3055199R1

O-RING

3шт.

24

3132781R92

PIPE

ASSY, OIL PRESSURE AND SUCTION

1шт.

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

CAP

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

717222R1

O-RING

1шт.

ref

Part No.

English

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, - FOR BLANKING OFF OIL PRESSURE SWITCH - THE FOLLOWING PARTS ARE NOT ILLUSTRATED Slotted, Headless, 1/8" NPT

1шт.
