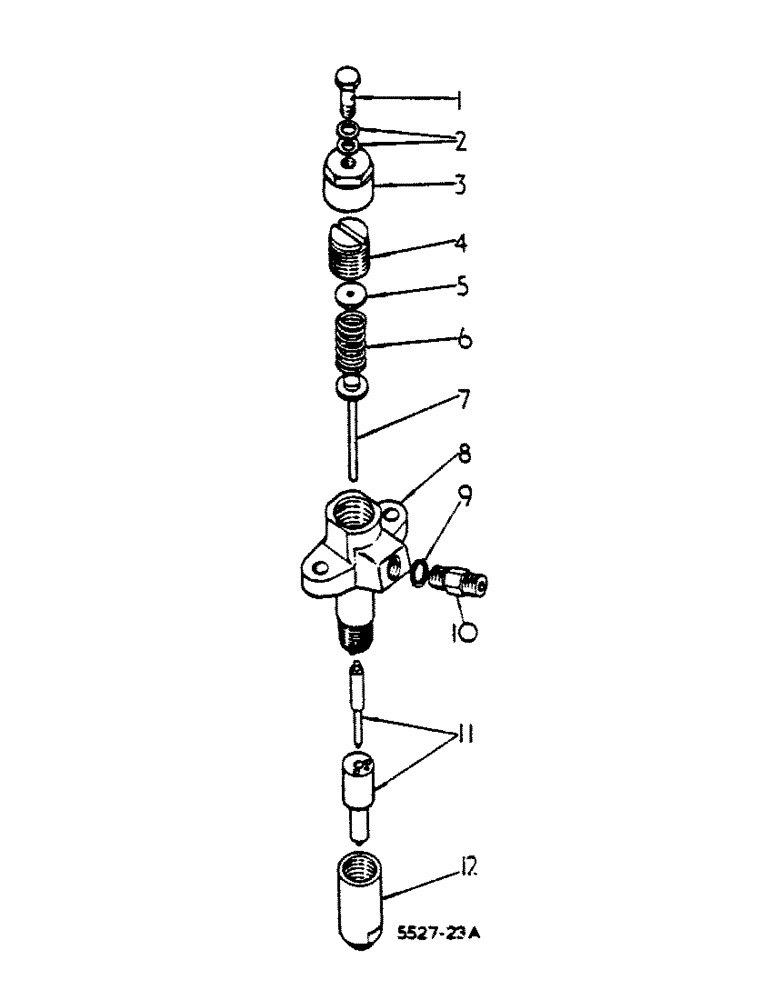

Запчасти Case IH 474 (12-27) - INJECTION NOZZLE HOLDER WITH NOZZLE Power

*

BOSCH INJECTION

1шт.

3055422R92

HOLDER

CPTE. INJECTION NOZZLE W/ NOZZLE (4)

1шт.

735252C91

REMAN-FUEL INJECTOR

Reman for New PN 3055422R92

1шт.

1934193C1

CORE-FUEL INJECTOR

Return Number

1шт.

3055298R92

NOZZLE HOLDER

HOLDER, CPTE. INJECTION NOZZLE (4) EACH CONSISTS OF

1шт.

1

3132999R1

HOLLOW SCREW

SCREW, HOLLOW

1шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

RING, PACKING

2шт.

3

3056943R1

CROWN NUT

NOZZLE HOLDER CAP

1шт.

4

3132998R1

SCREW

ADJUSTING

1шт.

5

787049R1

CUP

SPRING

1шт.

6

759844R1

SPRING

1шт.

7

3056939R91

SPINDLE

PIN, THRUST

1шт.

8

HOLDER - ORDER 3055298R92

1шт.

9

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING, PACKING

1шт.

10

3056940R91

UNION

CONNECTOR

1шт.

11

3055426R91

NOZZLE CAP

NOZZLE, CPTE INJECTION

1шт.

12

3133042R1

NOZZLE HOLDER

NUT, NOZZLE CAP

1шт.

425-115

NUT,5/16"-24, G5

HEX. 5/16

8шт.

ref

PART NO.

English

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O RING, INJECTION NOZZLE SEALING , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
