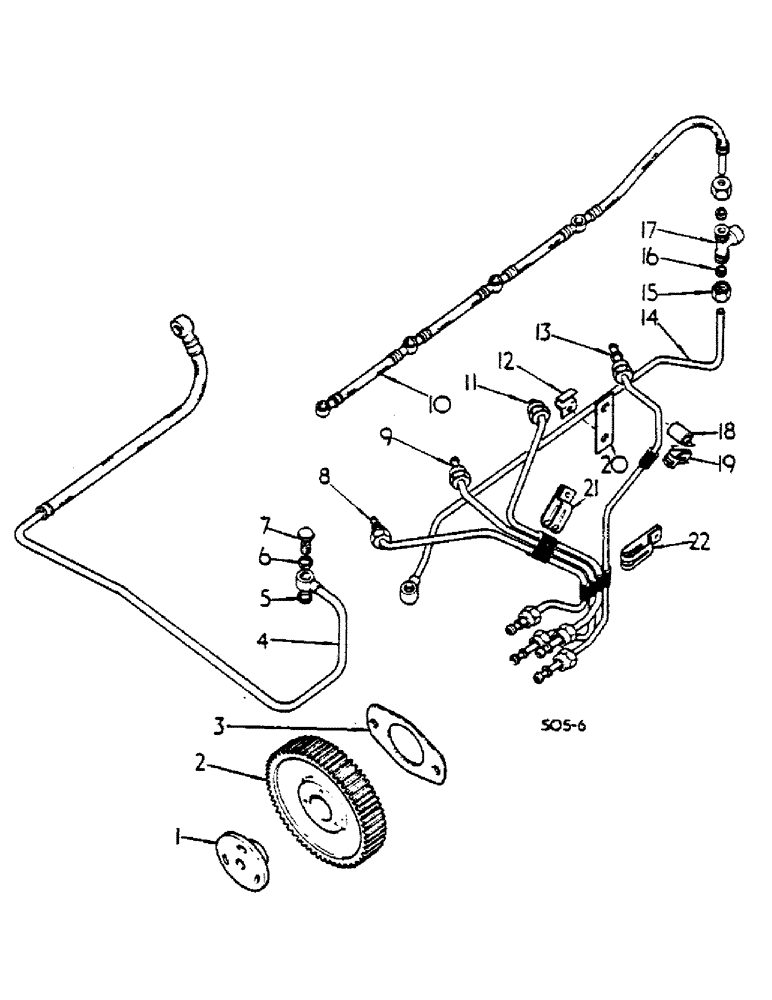

Запчасти Case IH 474 (12-26) - FUEL INJECTION PIPES Power

1

3055067R1

HUB

INJECTION PUMP GEAR

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 x 19 x 2.5mm

3шт.

2

3056885R1

GEAR

INJECTION PUMP

1шт.

3

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

4

3136077R2

FUEL HOSE

FILTER TO INJECTION PIPE

1шт.

5

3055390R1

RING

PACKING

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, HOLLOW

1шт.

8

3144486R91

PIPE

ASSY, INJECTION CYLINDER1

1шт.

9

3144488R91

PIPE

ASSY, INJECTION CYLINDER2

1шт.

10

3055606R1

TUBE

PIPE, LEAK

1шт.

11

3144490R91

PIPE

ASSY, INJECTION CYLINDER

3 1шт.

12

3059647R1

CLAMP

CLIP, FUEL LINE

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

3144492R1

PIPE ASSY, INJECTION CYLINDER

1шт.

14

3138685R1

PIPE

OVERFLOW

1шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, COUPLING

2шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

COMPRESSION

2шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

SPECIAL TEE

1шт.

18

3055480R1

SPACER

PIPE

1шт.

19

3132767R1

CLAMP

PIPE

1шт.

20

3132174R1

LINK

FUEL LINE FIXING

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

3132766R1

CLAMP

PIPE

1шт.

22

3132768R1

CLAMP

PIPE

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
