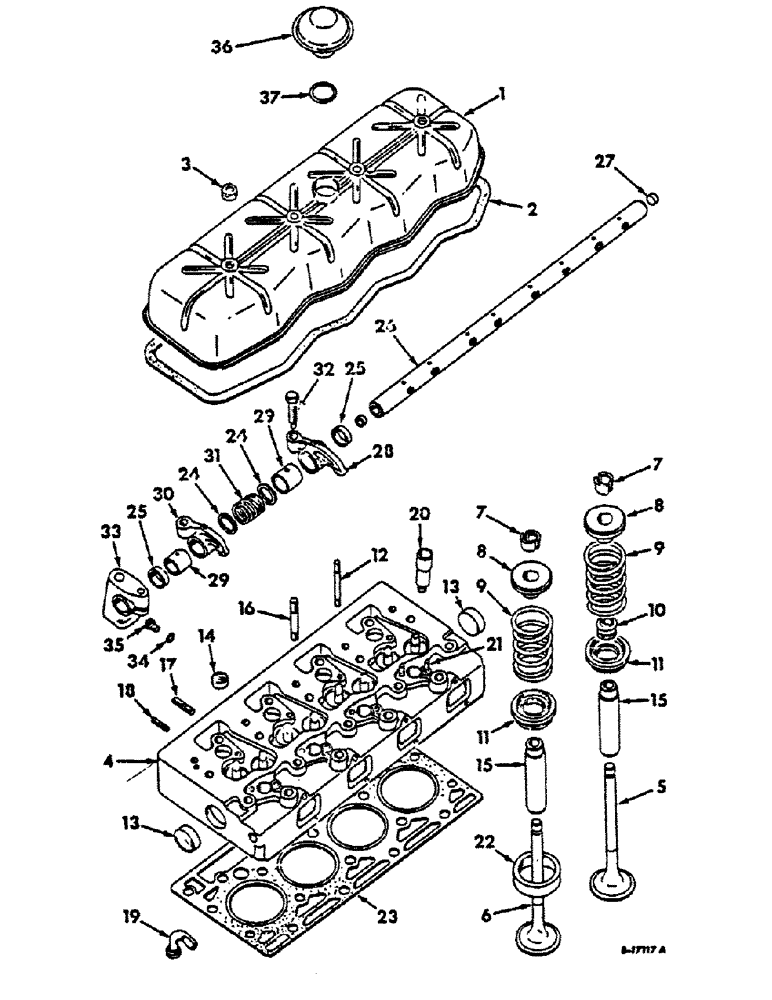

Запчасти Case IH 474 (12-23) - CYLINDER HEAD AND RELATED PARTS Power

1

3055181R1

COVER

ASSY, VALVE HOUSING

1шт.

179830

4шт.

3138637R1

CUP WASHER

WASHER, VALVE HOUSING COVER

4шт.

2

3138642R1

GASKET

VALVE HOUSING COVER

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

VALVE HOUSING COVER WASHER

4шт.

4

3132160R96

HEAD

W/VALVES, GUIDES AND STUDS CYL - CONSISTS OF

1шт.

CAP 3055058R2

8шт.

CONE ASSY 3055057R91

8шт.

HEAD 3055367R94

1шт.

INSERT 3055344R1

4шт.

GUIDE 3055022R1

8шт.

PLUG 933750R1

4шт.

PLUG 933574R1

2шт.

STUD 3055412R1

8шт.

STUD 3055221R1

8шт.

STUD 3055663R1

8шт.

STUD 3055220R1

5шт.

SPRING 3055060R1

8шт.

NSS

NOT SOLD SEPARAT

SEAL

8шт.

Not available for service

1шт.

VALVE 3055059R1

8шт.

VALVE 3055055R2

4шт.

VALVE 3059459R2

4шт.

PLUG 3055022R1

2шт.

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16-12 x 5 x HEX HD

8шт.

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT, 9/16-12 x 5-3/4 HEX HD

10шт.

5

3055055R2

OVERSIZE INLET VALVE

VALVE, INTAKE

4шт.

6

3059459R2

VALVE

EXHAUST

4шт.

7

3055057R91

ROCKER ARM COTTER

CONE ASSY, SPRING LOCK VALVE

8шт.

8

3055058R2

SPRING CUP

CAP, VALVE SPRING RETAINER

8шт.

9

3055060R1

SPRING

VALVE

8шт.

10

SEAL, VALVE STEM - ORDER PACKAGE 3136407R91

8шт.

11

3055059R91

CAP

VALVE, ROTATION ROTOCAP

8шт.

12

3132764R1

ADAPTER

ADAPTOR

1шт.

13

934003R1

PLUG,M52, Conical

EXPANSION 1.97

2шт.

14

933750R1

PLUG,M32, Conical

EXPANSION 1.26

4шт.

15

3055022R1

GUIDE

VALVE STEM

8шт.

16

3055220R1

STUD,1/2" - 20 x 3.18"

ROCKER SHAFT BRACKET

5шт.

17

3055663R1

STUD

EXHAUST MANIFOLD

8шт.

18

3055221R1

STUD

WATER COLLECTING PIPE

8шт.

19

- NOT USED -

1шт.

20

3055344R1

SLEEVE

INSERT, NOZZLE HOLDER

4шт.

21

3055412R1

STUD

NOZZLE HOLDER

8шт.

22

3132362R1

VALVE SEAT

INSERT, EXHAUST VALVE SEAT .004 O/S

4шт.

22

3132361R1

INSERT

EXHAUST VALVE SEAT .016 O/S

4шт.

23

3138959R2

GASKET

CYLINDER HEAD

1шт.

24

3055669R1

THRUST WASHER

THRUST ROCKER ARM

8шт.

25

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

DISTANCE

7шт.

26

3055070R21

SHAFT HOUSING

SHAFT ASSY, W/PLUG 933565R1 ROCKER

1шт.

ARM

1шт.

27

933565R1

PLUG,M14, Conical

EX PANSION 14MM DIN 443

2шт.

28

3055072R21

ROCKER ARM

ARM ASSY, W/BUSHING 3132019R1

1шт.

INTAKE ROCKER

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

29

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

8шт.

30

3055073R21

ROCKER ARM

ARM ASSY, W/BUSHING 3132019R1

1шт.

EXHAUST ROCKER

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

31

3055075R2

SPRING

ROCKER ARM

4шт.

32

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

33

3144177R91

BRACKET

PACKAGE, BRACKET ROCKER ARM SHAFT

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

34

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

1шт.

35

933127R1

PLUG

1шт.

3055370R1

STIRRUP

SHACKLE, ENGINE MTG FRONT, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

SCREW, 3/4-10 x 1-1/8 HEX HD CAP, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3132292R91

ROCKER

PACKAGE, INTAKE ROCKER ARM - INCLUDES REF NOS 28,32 AND ATTACHING HARDWARE - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3132293R91

ARM ASSY.

PACKAGE, EXHAUST ROCKER ARM - INCLUDES REF NOS 30,32 AND ATTACHING HARDWARE - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3136407R91

SEAL KIT

PACKAGE, SERVICE VALVE SEAL - CONSISTS OF, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

NSS

NOT SOLD SEPARAT

SEAL , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

6шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

Not available for service

1шт.
