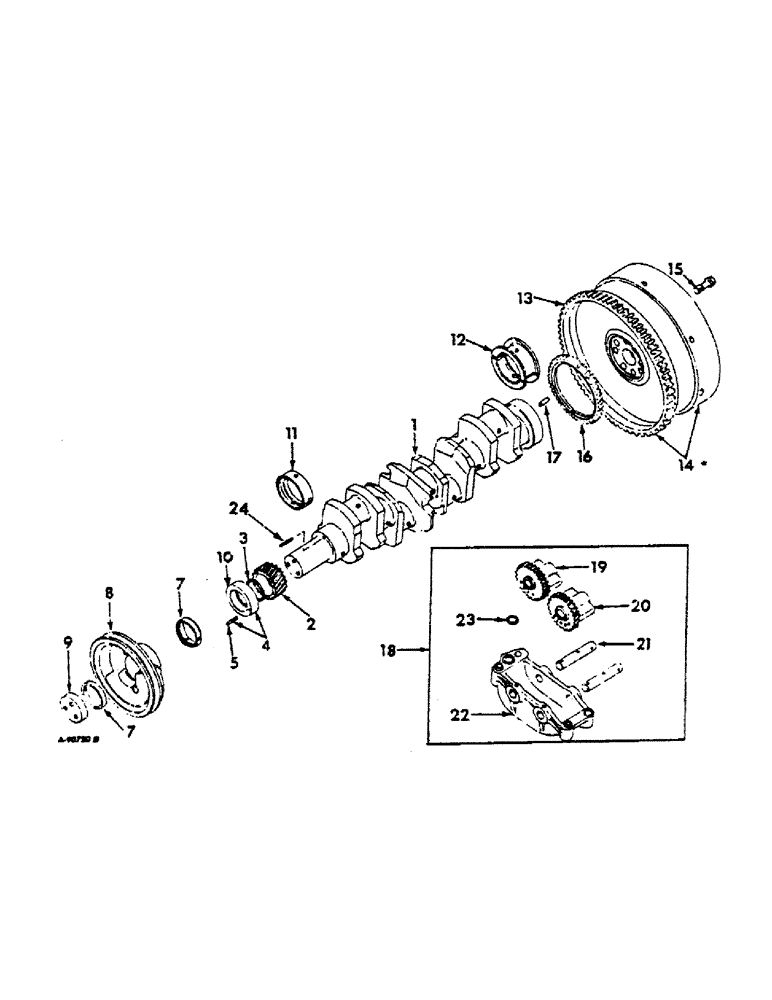

Запчасти Case IH 474 (12-21) - CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3132968R93

CRANKSHAFT BEARING

W/BEARINGS STD - CONSISTS OF

1шт.

CRANKSHAFT

1шт.

PINION 3055028R1

1шт.

GEAR 3136237R1

1шт.

PIN 141244

1шт.

PIN 932169R1

1шт.

BEARING 3055129R21

1шт.

BEARINGS 3055130R21

4шт.

BEARINGS 3055351R91

4шт.

2

3055028R1

PINION

GEAR, CRANKSHAFT PINION

1шт.

3

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

4

RING ASSY, DISTANCE W/PIN - ORDER PACKAGE 3136724R93

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin, groove

1шт.

6

- NOT USED -

1шт.

7

3138874R1

BEARING WASHER

RING, CLAMPING

2шт.

8

3138838R2

PULLEY

CRANKSHAFT

1шт.

9

3055154R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

1шт.

TYPE 4

3шт.

10

RING, DISTANCE - ORDER PACKAGE 3136724R93

1шт.

11

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, MAIN STD

4шт.

11

3056832R21

BEARING ASSY

BEARING ASSY, MAIN .010 UNDERSIZE

4шт.

11

3056877R21

BEARING ASSY

BEARING ASSY, MAIN .020 UNDERSIZE

4шт.

11

3055770R21

BEARING ASSY, MAIN .030 UNDERSIZE

4шт.

12

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, MAIN STD.

1шт.

12

3056820R11

BEARING ASSY

BEARING ASSY, MAIN .010 UNDERSIZE

1шт.

12

3056875R11

BEARING ASSY

BEARING ASSY, MAIN .020 UNDERSIZE

1шт.

12

3055776R11

BEARING ASSY

BEARING ASSY, MAIN .030 UNDERSIZE

1шт.

13

60883H

RING GEAR

GEAR

1шт.

14

3136044R11

ENGINE FLYWHEEL

FLYWHEEL ASSY

1шт.

15

3132159R2

BOLT,Hex, 1/2" - 20 x 63.5mm

FLYWHEEL

7шт.

16

3136237R1

PINION

GEAR, BALANCER DRIVE

1шт.

17

NLS

NO LONGER SERVICED

DOWEL

1шт.

18

3132895R93

BALANCER

ASSY, w/PINS 932229R1 - LESS REF NO.23

1шт.

SCREW, 7/16-14 x 2-1/4 HEX HD 179867

1шт.

SCREW, 7/16-14 x 2 HEX HD CAP 179866

2шт.

SCREW, 7/16-14 x 2-3/4 HEX HD CAP 179869

1шт.

WASHER, 7/16 MED LOCK 103322

2шт.

19

3132891R11

WEIGHT ASSY, IDLER

1шт.

20

3132896R11

WEIGHT ASSY, DRIVE

1шт.

21

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY, WEIGHT

2шт.

22

3132875R41

HOUSING

ASSY

1шт.

932229R1

SPLIT PIN/SAFETY PIN

PIN, ROLL

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

M2.5 x 20, Roll

2шт.

23

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

24

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.
