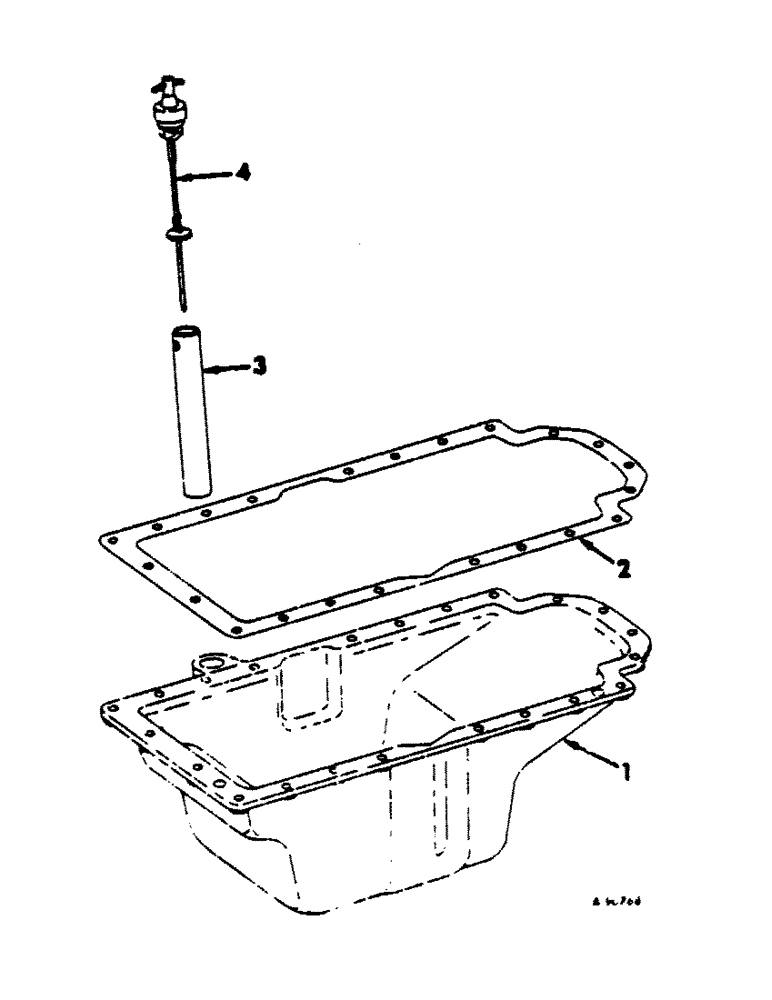

Запчасти Case IH 474 (12-20) - CRANKCASE OIL PAN Power

1

3136055R93

ENGINE OIL PAN

PAN ASSY, OIL

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

3131883R2

SCREW

PLUG, FILLER AND DRAIN

1шт.

933609R1

RING

RING, PACKING

1шт.

2

3055161R1

GASKET

OIL PAN

1шт.

3

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, OIL FILLING

1шт.

4

3136242R2

DIPSTICK

GAUGE ASSY, OIL LEVEL

1шт.
