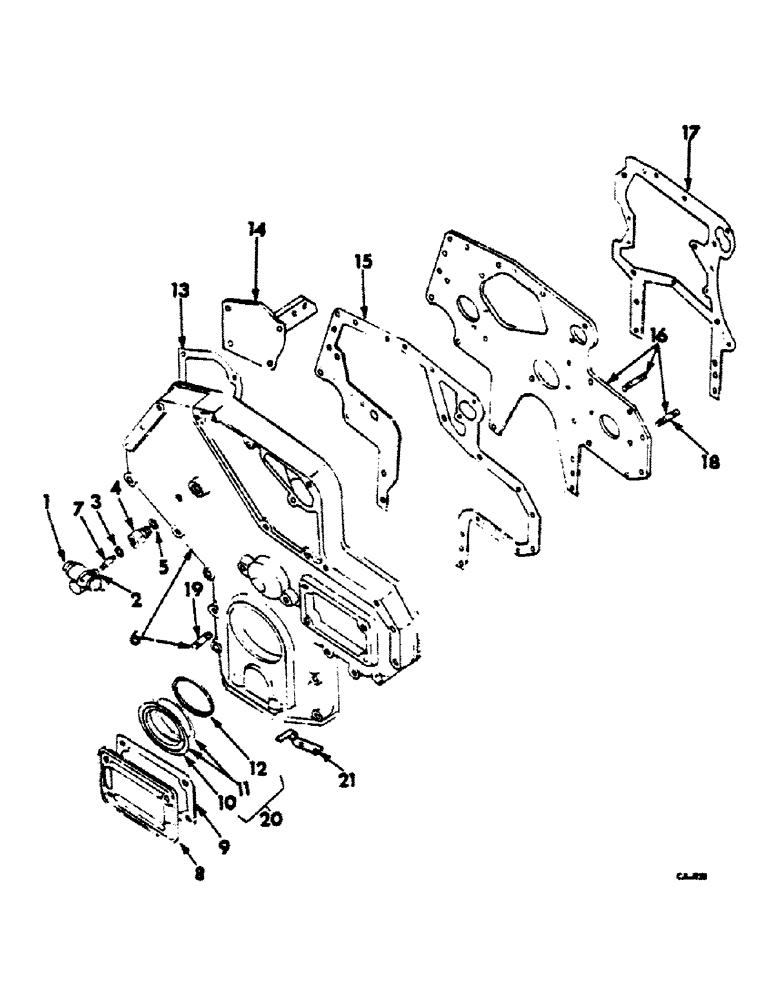

Запчасти Case IH 474 (12-18) - CRANKCASE FRONT COVER AND RELATED PARTS Power

1

3055982R92

ANGLE DRIVE

DRIVE, ANGLE

1шт.

2

3132116R1

NUT

HEX

1шт.

3

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, SEAL

1шт.

4

3055983R1

REDUCER FITTING

SPACER

1шт.

5

933222

RING, PACKING

1шт.

6

3136057R14

COVER ASSY

FRONT

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 HEX

7шт.

933570R1

WASHER

DISC, SPRING

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

7

3056986R1

SUPPORT

COUPLING, DRIVE ANGLE

1шт.

8

3055140R1

COVER

INJECTION PUMP

1шт.

131402H

WASHER

11/32 x 11/16 x 16 GA

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 HEX

4шт.

9

3138640R1

GASKET

INJECTION PUMP COVER

1шт.

933223R1

PLUG,Hex, M18 x 1.5

SCREW, LOCKING

1шт.

10

SEAL - ORDER 3136724R93 -

1шт.

11

RING ASSY, DISTANCE - ORDER 3136724R93

1шт.

12

713778R11

O-RING

1шт.

13

3132541R1

GASKET

CLOSING COVER

1шт.

14

3136061R92

COVER ASSY

- BOSCH INJECTION

1шт.

SCREW, 5/16-18 x 2-1/4 HEX HD CAP 179827

4шт.

WASHER, 5/16 MED LOCK 103320

4шт.

NUT, 5/16-18 HEX 102634

4шт.

15

3055994R1

GASKET

CRANKCASE FRONT COVER

1шт.

16

3055996R11

PLATE ASSY.

PLATE ASSY, CRANKCASE FRONT - BOSCH INJECTION

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

20990R1

PLUG

3/8 HEX HD PIPE

1шт.

17

3055239R1

GASKET

CRANKCASE FRONT COVER PLATE

1шт.

18

3055065R1

STUD

FRONT PLATE - BOSCH INJECTION

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 HEX

2шт.

19

3055242R1

STUD

CRANKCASE FRONT COVER

4шт.

20

3136724R93

SEAL KIT

PACKAGE, CRANKCASE OIL SEAL SERVICE - CONSISTS OF

1шт.

O-RING 713778R1

1шт.

PIN 932681R1

1шт.

NSS

NOT SOLD SEPARAT

SEAL 3136881R91

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

RING 3136723R21

1шт.

Not available for service

1шт.

21

3136040R21

ADJUSTER

INDICATOR, TIMING ASSY

1шт.
