Запчасти Case IH 474 (12-16) - CRANKCASE AND RELATED PARTS Power

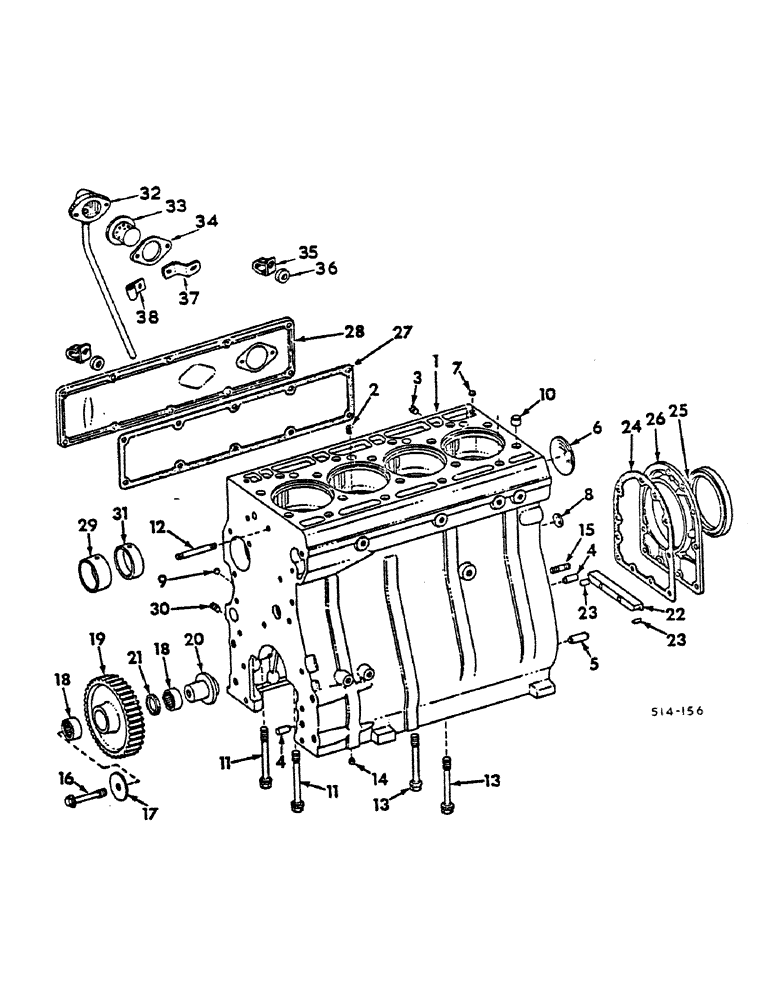

Схема запчастей Case IH 474 - (12-16) - CRANKCASE AND RELATED PARTS Power
25
15
5
11
33
27
28
6
3
29
2
9
38
14
34
12
36
35
8
31
26
22
24
1
23
7
23
37
11
13
4
20
4
16
13
21
19
30
17
18
18
10
32

Артикул

Название

Примечание

Количество

1

3136315R12

CASE

CRANKCASE ASSY - CONSISTS OF

1шт.

CRANKCASE

1шт.

PLUG 103883

4шт.

PLUG 103884

4шт.

PIN 141242

4шт.

PIN 141284

2шт.

PLUG 172602

1шт.

COVER 933236R1

1шт.

COVER 933537R1

2шт.

COVER 3136004R1

1шт.

SCREW 3136320R3

10шт.

STUD 3055989R1

1шт.

PLUG 3055173R1

1шт.

STUD 3055270R1

1шт.

BEARING 3055008R1

1шт.

BEARING 3055009R1

4шт.

2

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

3

103884

PLUG,Slotted, 1/4" NPT

SLOTTED HEADLESS PIPE

3шт.

4

NLS

NO LONGER SERVICED

PIN, DOWEL

4шт.

5

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

6

41-3044

PLUG,Exp, 2 3/4"

EXPANSION

1шт.

7

3136004R1

COVER

CLOSING

1шт.

8

933537R1

PLUG,M25, Conical

COVER, CLOSING

2шт.

9

3136004R1

COVER

CLOSING

1шт.

10

3055007R1

BUSHING

DOWEL

2шт.

11

3136320R3

BOLT,9/16" - 12 x 105.70mm, 12.9

SCREW, CRANKSHAFT BEARING CAP

2шт.

12

3055989R1

STUD

FRONT

1шт.

13

3136320R3

BOLT,9/16" - 12 x 105.70mm, 12.9

SCREW, CRANKSHAFT BEARING CAP

8шт.

14

3055173R1

PLUG

1шт.

15

3055270R1

STUD

REAR

1шт.

16

3055374R1

BOLT

IDLER GEAR CARRIER

1шт.

17

3055372R1

DISC

RING, ANTI-WEAR IDLER GEAR

1шт.

18

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER, NEEDLE - OPTIONAL W/3136515R91

2шт.

18

3136515R91

BEARING

RETAINER, NEEDLE - OPTIONAL W/3058816R91

2шт.

19

3055043R3

PINION

GEAR, IDLER

1шт.

20

3055373R1

CARRIER

IDLER GEAR

1шт.

21

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING, DISTANCE

1шт.

22

3055214R1

SUPPORT

STRIP, CRANKCASE SEALING

1шт.

23

714868R1

SEALING STRIP

SEALING

2шт.

24

3055215R1

GASKET

CRANKSHAFT SEAL RETAINER

1шт.

25

3138701R91

SEAL

SEAL

1шт.

26

3055216R1

RETAINER

1шт.

SCREW, 5/16-18 x 3/4 HEX HD CAP 179816

8шт.

NUT, 5/16-18 HEX 102634

1шт.

DISC, SPRING 933570R1

9шт.

27

3055393R2

GASKET

SIDE COVER - OPTIONAL W/3136173R1

1шт.

27

3136173R1

GASKET

SIDE COVER - OPTIONAL W/3055393R2

1шт.

28

3055314R11

COVER ASSY

CRANKCASE SIDE - BOSCH INJECTION

1шт.

SCREW, 5/16-18 x 5/8 HEX HD CAP 179814

10шт.

WASHER, 5/16 MED LOCK 103320

10шт.

WASHER, .335 x .748 x .098 3055574R1

10шт.

29

3055008R1

CAMSHAFT BEARING

BEARING, CAMSHAFT FRONT

1шт.

30

103884

PLUG,Slotted, 1/4" NPT

2шт.

31

3055009R1

BEARING LINER

BEARING, CAMSHAFT

4шт.

32

3144020R91

BREATHER ASSY.

BREATHER ASSY, CRANKCASE

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3138687R1

RING

PACKING

2шт.

33

3055324R91

ELEMENT

ASSY, BREATHER FILTER

1шт.

34

3138639R1

GASKET

BREATHER

1шт.

35

- NOT USED -

1шт.

36

- NOT USED -

1шт.

37

3144022R1

BRACKET

LINK, FIXING

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

SCREW, 9/16-12 x 3/4 HEX HD CAP

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

38

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 HEX

1шт.

3144434R91

CRANKSHAFT BEARING

KIT, CRANKSHAFT BEARING CAP - REAR , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3144440R91

BEARING ASSY

KIT, CRANKSHAFT BEARING CAP , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

20990R1

PLUG

3/8 HEX HD PIPE , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
