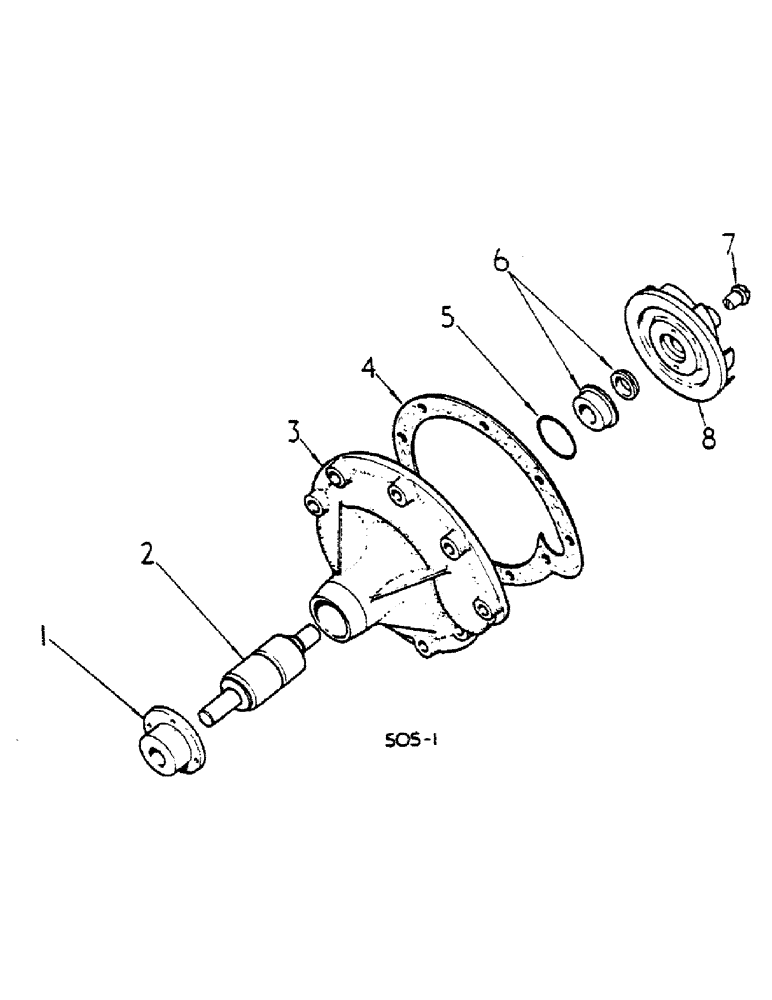

Запчасти Case IH 474 (12-15) - WATER PUMP Power

3136053R91

WATER PUMP

PUMP, CPTE. WATER CONSISTS OF

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R91

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

*

BODY 3133677R21

1шт.

*

HUB 3132146R1

1шт.

*

IMPELLOR 3055211R2

1шт.

*

PLUG3055308R1

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

1

3132146R1

HUB

PULLEY

1шт.

3132148R1

HUB

PULLEY - OPTIONAL

1шт.

2

3055191R91

BEARING ASSY

WATER PUMP

1шт.

2

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

WATER PUMP - OPTIONAL

1шт.

3

3132677R21

BODY

PUMP W/BODY & BEARING 3055191R91

1шт.

4

3055177R1

GASKET

WATER PUMP

1шт.

5

3055260R1

O-RING

SEAL

1шт.

6

3055285R92

STRIPPER PACKAGE

PACKAGE, WATER PUMP RECONDITIONING W/ GASKET 3055177R1 - AS REQUIRED

1шт.

7

3055308R1

PLUG

CLOSING

1шт.

8

3055211R2

IMPELLER

IMPELLOR, PUMP

1шт.
