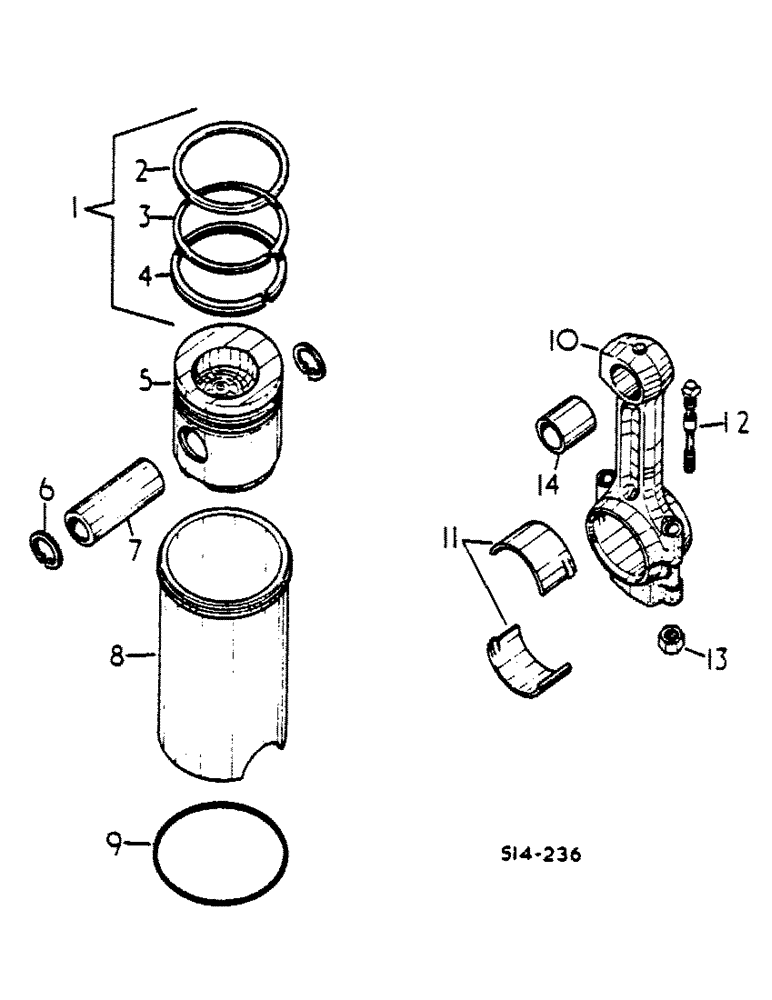

Запчасти Case IH 474 (12-12) - CONNECTING ROD, PISTON AND SLEEVE Power

1

3139594R91

PISTON RING

RING, SET PISTON

1шт.

1

671510R91

SET OF RINGS

RING, SET PISTON - OPTIONAL

1шт.

2

RING, COMPRESSION - FIRST - USED W/3 RING PISTONS - ORDER SET 3139549R91 OR 671510R91

4шт.

3

RING, COMPRESSION - SECOND - USED W/3 RING PISTONS - ORDER SET 3139549R91 OR 671510R91

4шт.

4

RING, COMPRESSION - THIRD - USED W/3 RING PISTONS - ORDER SET 3139549R91 OR 671510R91

4шт.

5

3139591R92

PISTON ASSY

W/SLEEVE - USED W/3 PISTON RING

4шт.

6

933327R1

SNAP RING,M36, Int

RING, PISTON PIN RETAINER

8шт.

7

3055217R2

PISTON PIN

PIN, PISTON

4шт.

8

SLEEVE, CYL - NOT SERVICED SEPARATELY

4шт.

9

3055021R2

O-RING

PACKING

4шт.

10

3055029R24

CONNECTING ROD

ROD, CONNECTING - W/TWO BOLTS AND BUSHING

4шт.

11

3055351R91

BEARING ASSY

BEARING, CONNECTING ROD - STD

4шт.

11

3056834R91

BEARING, CONNECTING ROD .010 - U/S - AS REQUIRED

1шт.

11

3056879R11

BEARING ASSY

BEARING, CONNECTING ROD .020 - U/S - AS REQUIRED

1шт.

11

3056781R11

CRANKSHAFT BEARING

BEARING, CONNECTING ROD .030 - U/S - AS REQUIRED

1шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

*

NUT, CONNECTING ROD BOLT

8шт.

14

3132018R1

BUSHING

PISTON PIN

4шт.
