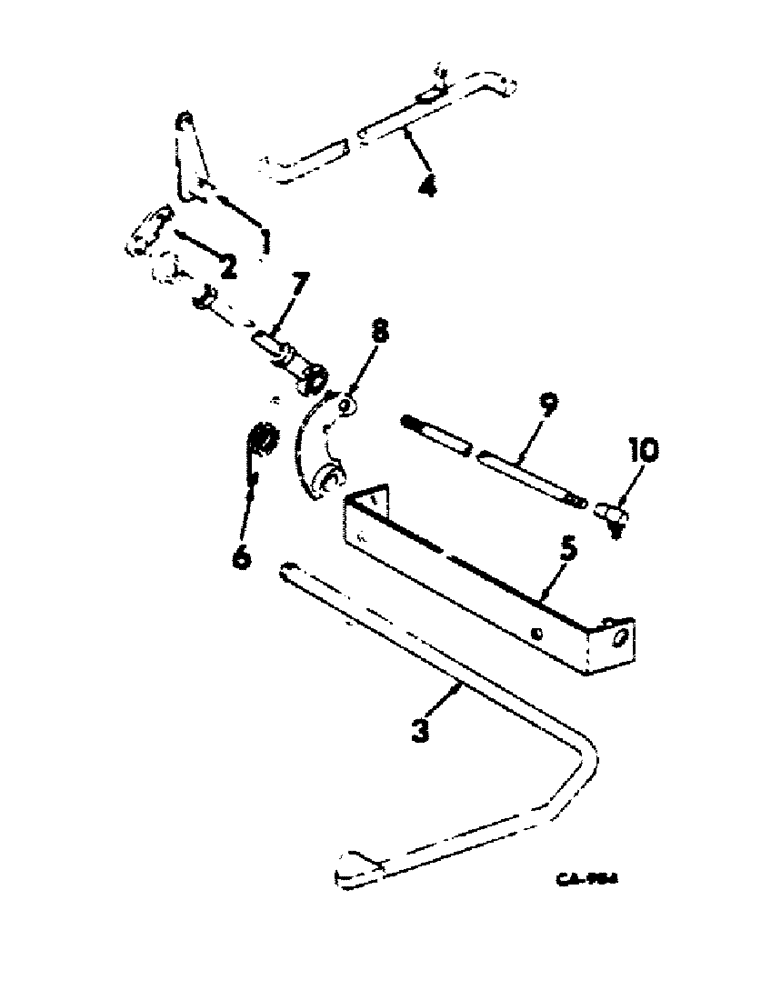

Запчасти Case IH 474 (12-09) - FOOT ACCELERATOR Power

1

532100R1

ARM

ASSY, BELLCRANK

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

2шт.

2

532104R1

LEVER ASSY.

LEVER ASSY, BELLCRANK INNER

1шт.

3

532096R2

PEDAL ASSY.

PEDAL ASSY, FOOT ACCELERATOR

1шт.

4

528767R1

ROD ASSY.

ROD ASSY, BELLCRANK

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 COTTER

2шт.

5

532093R4

SUPPORT ASSY.

SUPPORT ASSY, FOOT ACCELERATOR PEDAL

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 HEX

2шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

6

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

7

532108R1

ROD ASSY.

ROD ASSY, CONNECTING

1шт.

8

532102R1

LEVER ASSY.

LEVER ASSY, BELLCRANK OUTER

1шт.

9

528775R1

ROD

FOOT ACCELERATOR PICK-UP

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX JAM

2шт.

10

109400

STEERING KNUCKLE

JOINT, 1/4-28 BALL - OPTIONAL W/19318R1

1шт.

10

19318R1

BALL JOINT

JOINT, 1/4-28 BALL - OPTIONAL W/109400

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

528776R1

NUT

FOOT ACCELERATOR PICK-UP

1шт.

ROD SWIVEL

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
