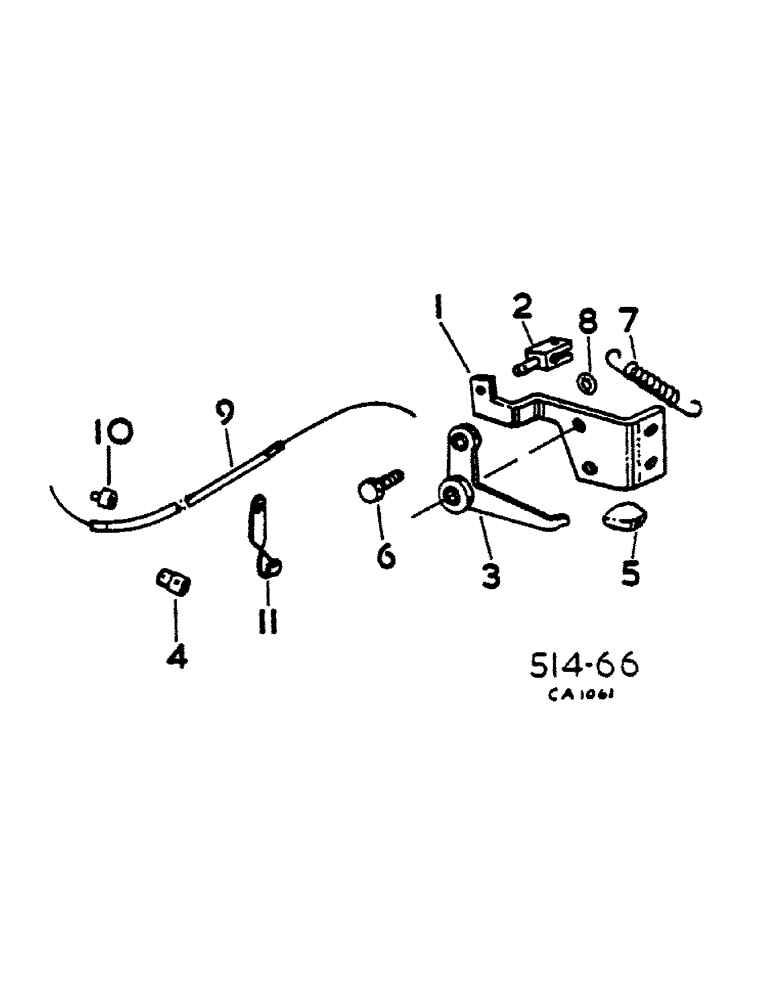

Запчасти Case IH 474 (12-08) - FUEL SHUTOFF CONTROLS, BOSCH INJECTION Power

1

528992R1

BRACKET

ASSY, FUEL SHUT-OFF LEVER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

2

534621R1

CLAMP

CHOKE BRACKET

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

10-32 x 5/8 C-Z HEX HD MACH

1шт.

446178

WASHER,#12

1/4 x 1/2 x .036

1шт.

3

531335R1

ARM ASSY.

ARM ASSY, DUEL SHUT-OFF CONTROL

1шт.

23369R1

HEADED PIN,3/8" x 7/8"

PIN, HEADED, 3/8" x 7/8"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

8/32 x 5/8 C-Z SLT FIL HD

1шт.

469668R1

WASHER

3/8 x 13/32 x .060 C-Z

1шт.

4

396388R1

PIVOT

FUEL SHUT-OFF LEVER SWIVEL

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 COTTER

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 C-Z LST FIL HD

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036

1шт.

5

528996R1

KNOB

FUEL SHUT-OFF CONTROL CABLE

1шт.

6

528997R1

BRACKET, PIVOT

SWIVEL, FUEL SHUT-OFF CONTROL CABLE

1шт.

7

528998R2

SPRING

FUEL SHUT-OFF CONTROL CABLE

1шт.

8

528999R1

CIRCLIP

RETAINER, FUEL SHUT-OFF CONTROL CABLE

1шт.

SPRING - OPTIONAL W/531714R1

1шт.

8

531714R1

CIRCLIP

RETAINER, FUEL SHUT-OFF CONTROL CABLE

1шт.

SPRING - OPTIONAL W/528999R1

1шт.

9

529001R1

CABLE

DIESEL FUEL SHUT-OFF CONTROL

1шт.

10

677516R1

BUSHING

FUEL SHUT OFF CONTROL CABLE

1шт.

11

370820R1

CLIP

FUEL SHUT-OFF CONTROL CABLE

1шт.
