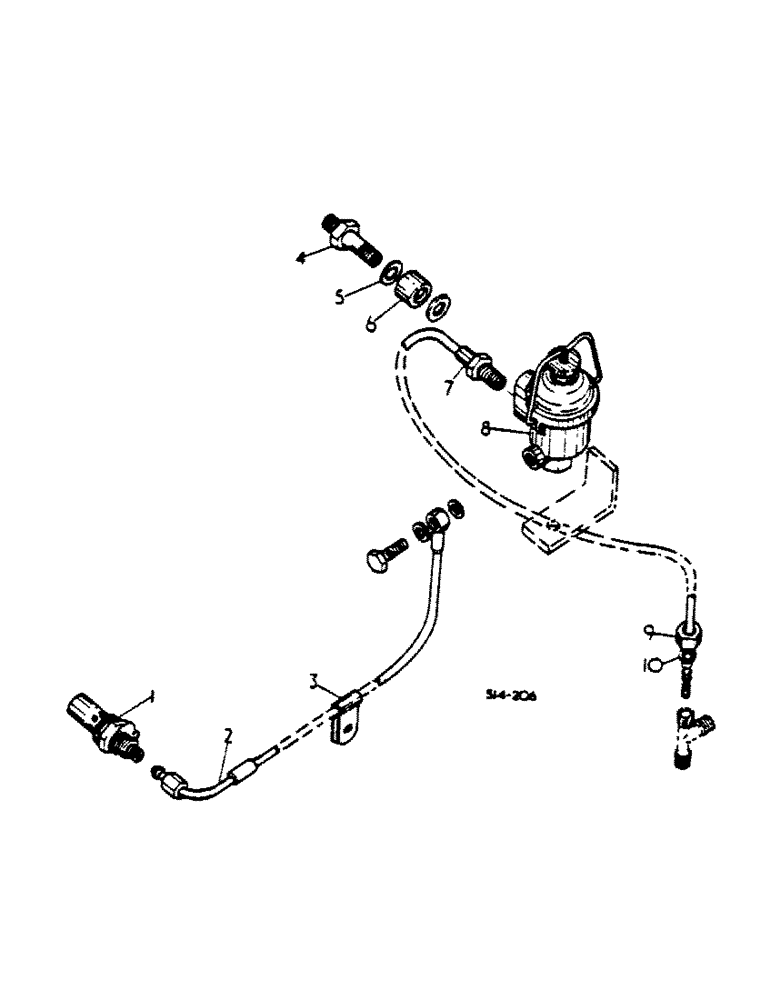

Запчасти Case IH 474 (12-04) - THERMOSTART Power

1

3112805R92

THERMOSTART

ELEMENT, THERMOSTART TYPE 357 - 15

1шт.

2

3136699R91

TUBE

HOSE ASSY, ELEMENT FEED

1шт.

3

3112817R1

CLAMP

ELEMENT FEED

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

3112810R1

ADAPTER

ADAPTOR, RESERVOIR FEED

1шт.

5

3113045R1

WASHER

BANJO SEALING

2шт.

6

3113700R1

SPACER

1шт.

7

3112812R1

PIPE

ASSY, RESERVOIR OVERFLOW

1шт.

8

3112813R92

RESERVOIR

CONSISTS OF:

1шт.

3116085R1

BODY

1шт.

3116084R1

BOWL

GLASS

1шт.

3116083R91

CLAMP

BAIL ASSY

1шт.

705886R1

SEAL

GASKET

1шт.

9

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, COUPLING

1шт.

10

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

1шт.
