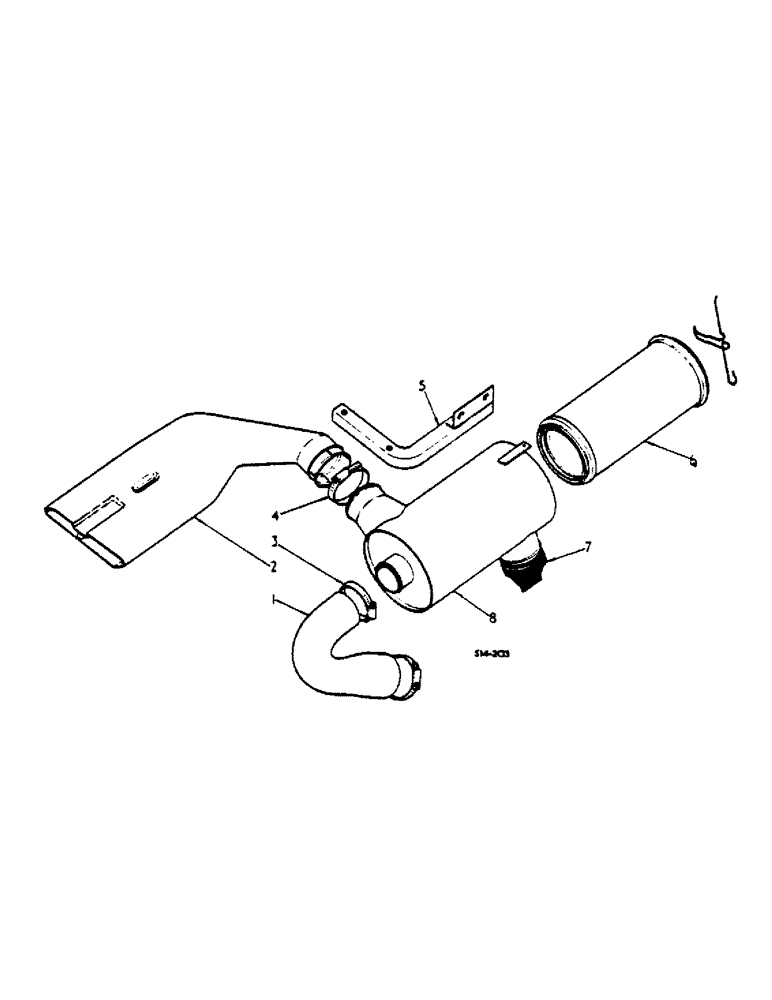

Запчасти Case IH 474 (12-02) - AIR CLEANER AND CONNECTIONS Power

1

3113612R1

INTAKE AIR HOSE,63.50 mm ID, 69.85 mm ID x 228.60 mm

Air Cleaner Outlet 63.50 mm ID, 69.85 mm ID x 228.60 mm

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, No.44. HOSE

2шт.

4

21423R1

CLAMP

3-5/16 HOSE - OPTIONAL W/539994R1

1шт.

539994R1

CLAMP

3-5/16 HOSE - OPTIONAL W/21423R1

1шт.

5

527273R1

BRACKET

ASSY, AIR CLEANER MOUNTING

1шт.

6

529854R2

AIR FILTER

ELEMENT ASSY

1шт.

7

529855R1

VALVE

DUST UNLOADER

1шт.

8

402612R92

AIR CLEANER

CLEANER ASSY, AIR - CONSISTS OF REF NOS 6 AND 7

1шт.

SCREW, 3/8-16 x 3/4 HEX HD CAP 180120

2шт.

SCREW, 3/8-16 x 1-3/4 HEX HD CAP 180128

2шт.

WASHER, 3/8 MED LOCK 120382

4шт.
