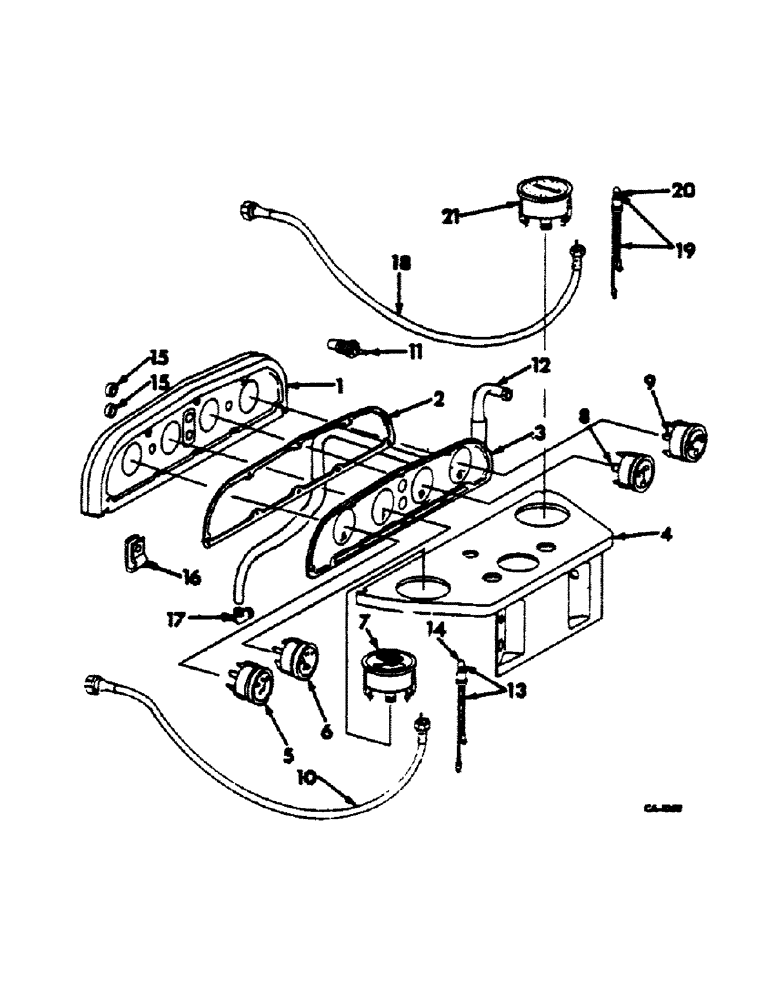

Запчасти Case IH 474 (11-02) - INSTRUMENT PANEL AND GAUGES Instruments

1

529357R2

HOUSING

INSTRUMENT PANEL GAUGE

1шт.

2

3113469R1

GASKET

1шт.

436665

SCREW

6-32 x 1/2 C-Z SLT PAN HD

1шт.

MACH

8шт.

3113468R1

WASHER

FIBRE

3шт.

3

529359R11

INSTRUMENT PANEL

PANEL ASSY, INSTRUMENT FACE

1шт.

4

533261R4

SPARE PART

PANEL ASSY, INSTRUMENT - SYNCHROMESH DRIVE TRACTORS

1шт.

4

533264R5

SPARE PART

PANEL ASSY, INSTRUMENT - HYDROSTATIC DRIVE TRACTORS - HAND SPEED CONTROL

1шт.

4

3112374R4

PANEL

ASSY, INSTRUMENT - HYDROSTATIC DRIVE TRACTORS - AUSTRIAN MARKET - HAND SPEED CONTROL

1шт.

538484R1

ROD ASSY, STEADY REST - HYDROSTATIC DRIVE TRACTORS - HAND SPEED CONTROL

1шт.

157523

SCREW

5/16-18 x 3/4 C-Z MACH

2шт.

4

538697R1

PANEL ASSY, INSTRUMENT - HYDROSTATIC DRIVE TRACTORS - FOOT SPEED CONTROL

1шт.

4

538699R3

PANEL ASSY, INSTRUMENT - HYDROSTATIC DRIVE TRACTORS - AUSTRIAN MARKET - FOOT SPEED CONTROL

1шт.

109084

NUT,1/4"-20, G5

2шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 ZND HEX HD CAP

2шт.

167214

CHAIN

SCREW, 12-24 x 1/2 C-Z CR REC PAN HD

1шт.

TAP

4шт.

5

528210R1

ELECTRICAL GAUGE

GAUGE ASSY, FUEL

1шт.

6

528211R1

AMMETER

ASSY

1шт.

7

528364R92

TACHOMETER

1шт.

1092838R1

DECAL

PRODUCT GRAPHIC, SPEED CHART KPH - FOR TRACTORS W/BR TRANSMISSION - SYNCHROMESH - EXPORT

1шт.

1092839R1

PRODUCT GRAPHIC

SPEED CHART MPH - FOR TRACTORS W/BR TRANSMISSION - SYNCHRO MESH

1шт.

1092840R1

PRODUCT GRAPHIC

KPH SPEED CHART - FOR TRACTORS W/AS TRANSMISSION - SYNCHRO MESH - EXPORT

1шт.

1092841R1

PRODUCT GRAPHIC

MPH SPEEDCHART - FOR TRACTORS W/AS TRANSMISSION - SYNCHROMESH

1шт.

1092842R1

PRODUCT GRAPHIC

SPEED CHART KPH - FOR TRACTORS W/AR TRANSMISSION - SYNCHROMESH - EXPORT

1шт.

1092843R1

PRODUCT GRAPHIC

SPEED CHART MPH FOR TRACTORS W/AR TRANSMISSION - SYNCHROMESH

1шт.

1092844R1

PRODUCT GRAPHIC

SPEED CHART KPH - FOR TRACTORS W/BS TRANSMISSION - SYNCHROMESH - EXPORT

1шт.

1092845R1

PRODUCT GRAPHIC, SPEED CHART MPH - FOR TRACTORS W/BS TRANSMISS - SYNCHROMESH

1шт.

8

528212R1

ELECTRICAL GAUGE

GAUGE ASSY, OIL

1шт.

9

528213R1

ELECTRICAL GAUGE

GAUGE ASSY, WATER TEMPERATURE

1шт.

10

529234R91

CABLE ASSY.

CABLE ASSY, TACHOMETER

1шт.

11

3073787R91

TRANSMITTER

GAUGE, TEMPERATURE SENDER

1шт.

536650R1

GASKET

TEMPERATURE SENDER GAUGE

1шт.

12

533274R1

PIPE

OIL PRESSURE

1шт.

13

529231R91

LAMP BASE

LAMP ASSY, TACHOMETER

1шт.

14

529233R1

LAMP

12V 3W CAPLESS BULB

1шт.

15

530589R1

TUBE

WARNING LIGHT

2шт.

16

533275R1

CLAMP

OIL PRESSURE PIPE

1шт.

533276R1

WASHER

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

17

21267D

FITTING

ELBOW, 7/16-24 HI DUTY TUBE FITTING - OIL PRESSURE PIPE TO ENGINE

1шт.

25038HA

TUBE NUT,3/8"-24

NUT, 7/16-24 HI DUTY TUBE FITTING

1шт.

18

529235R1

FLEXIBLE CABLE

CABLE ASSY, FLEXIBLE DRIVE - HYDROSTATIC DRIVE TRACTORS

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, SPEEDOMETER CABLE

1шт.

395228R1

CABLE CLIP

CLIP, FLEXIBLE DRIVE CABLE

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

19

529231R91

LAMP BASE

HOLDER ASSY, SPEEDOMETER LAMP - HYDROSTATIC DRIVE TRACTORS

1шт.

20

529233R1

LAMP

12V 3W CAPLESS BULB - HYDROSTATIC DRIVE TRACTORS

1шт.

21

529767R91

KM SPEEDOMETER

SPEEDOMETER 20 MPH

1шт.

21

529771R91

KM SPEEDOMETER

SPEEDOMETER 32 KPH - HYDROSTATIC DRIVE TRACTORS

1шт.

ref

Part No.

English

1шт.

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z BUTTON , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3113429R1

PLUG

BLANKING - OPTIONAL - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

142070

PLUG,13/32"

BUTTON HORN, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

343430R1

PLUG, BLANKING - OPTIONAL - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

894348H1

WARNING LIGHT

LAMP, ALTERNATOR WARNING , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

538239R1

PLUG

DIRECTION INDICATOR LIGHT HOLE, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.

538240R1

PLUG

DIRECTION INDICATOR SWITCH HOLE, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

432281

HOLE PLUG BUTTON,29/32"

PLUG, BUTTON CIGARETTE LIGHTER HOLE, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

528240R1

NO LONGER SERVICED

PLUG, BUTTON CIGARETTE LIGHTER HOLE, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

178023

FILTER SCREEN,29/32"

BUTTON CIGARETTE LIGHTER HOLE - OPTIONAL - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
