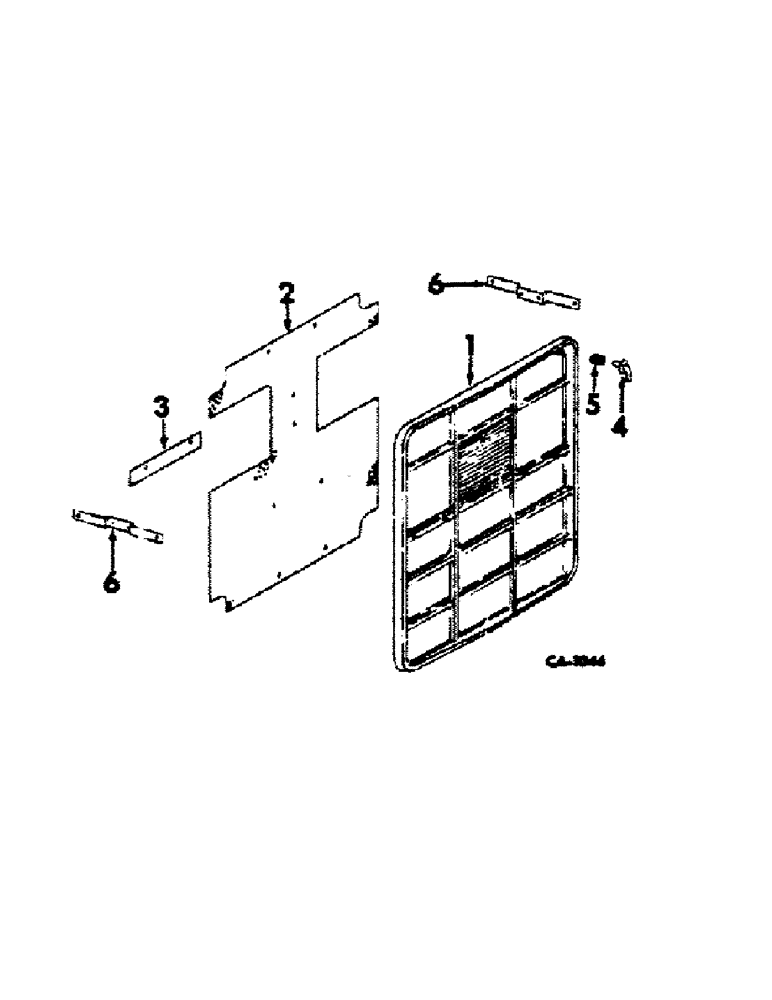

Запчасти Case IH 474 (06-05) - RADIATOR GRILLE Cooling

1

537496R1

GRILLE

RADIATOR - PLASTIC -

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 HEX WASHER HD

1шт.

TAP

4шт.

1

528153R2

GRILLE

RADIATOR

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 HEX WASHER HD

1шт.

TAP

6шт.

2

528155R3

SCREEN

GRILLE

1шт.

Q397

WASHER

11/32 x 3/4 x 16 GA

2шт.

3

532192R1

BRACKET

GRILLE RETAINING

1шт.

537163R1

BAR

GRILLE RETAINING

1шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 SLTD PAN HD MACH

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 GA C-Z - USBD W/GRILLE 537496R1

2шт.

22971R1

PIN

5/32 x 1-1/4 HV COILED SPRING

2шт.

23505R1

WASHER

9/32 x 5/8 x 16GA C-Z - USED W/GRILLE 528153R2

2шт.

4

3113470R1

PIN

LATCH ASSY, GRILLE - USED W/GRILLE 537496R1

2шт.

4

532178R1

LATCH

ASSY, GRILLE - USED W/GRILLE 528153R2

2шт.

5

532180R1

SPRING

GRILLE LATCH

2шт.

6

402610R1

SUPPORT

RADIATOR AND GRILLE HSG

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
