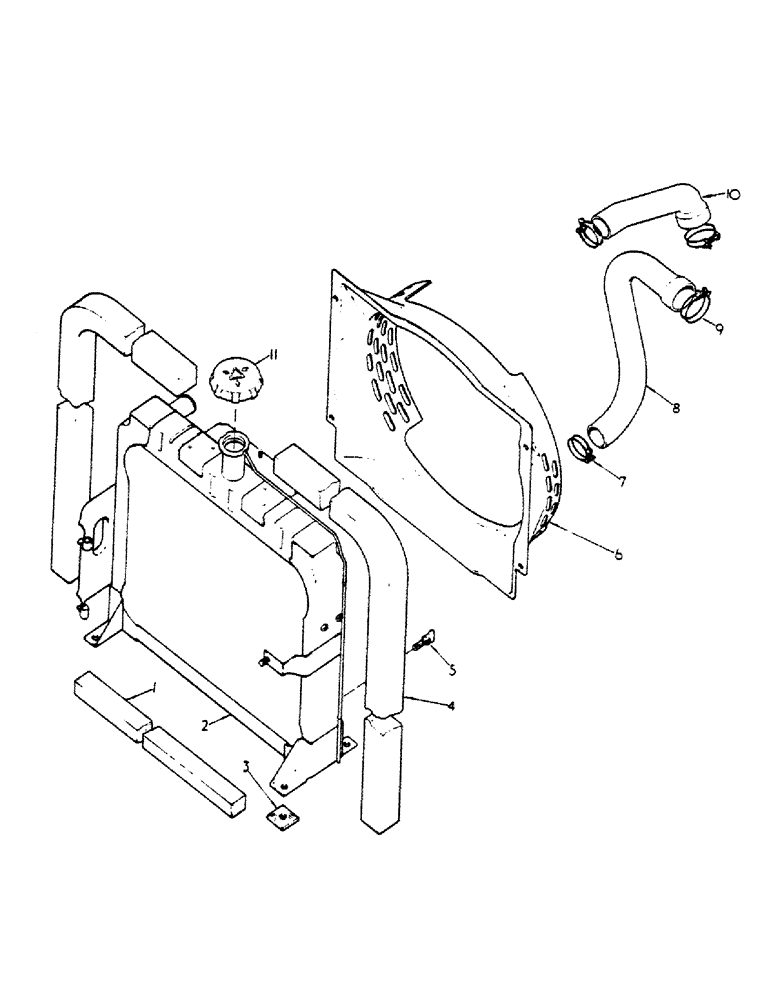

Запчасти Case IH 474 (06-04) - RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, LOWER RADIATOR

1шт.

2

3113086R1

RADIATOR

ASSY - SYNCHROMESH DRIVE TRACTORS

1шт.

2

3113087R1

RADIATOR

ASSY - HYDROSTATIC DRIVE TRACTORS

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 HEX HD CAP

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

129-409

WING NUT,1/4"-20

NUT, 1/4-20 C-Z HEX

1шт.

376137R1

WING NUT

NUT, 1/4-20 WING

1шт.

3

47240D

PAD

RADIATOR

4шт.

23042R1

WASHER

17/32 x 1 x 22 GA C-Z - AS REQD

1шт.

4

394788R1

GASKET

GASKET, RADIATOR BAFFLE

2шт.

5

3113083R1

PLUG, DRAIN

1шт.

6

527475R2

HOUSING

SHROUD, FAN

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

7

705935R91

HOSE CLAMP

CLAMP, HOSE - OPTIONAL W/39149H

2шт.

7

39149H

HOSE CLAMP

CLAMP, HOSE - OPTIONAL W/705935R91

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

706082R91

CLAMP

HOSE - OPTIONAL W/39 205H

2шт.

9

39205H

CLAMP

HOSE - OPTIONAL W/706 082R91

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

CAP, ASSY, RADIATOR

1шт.
