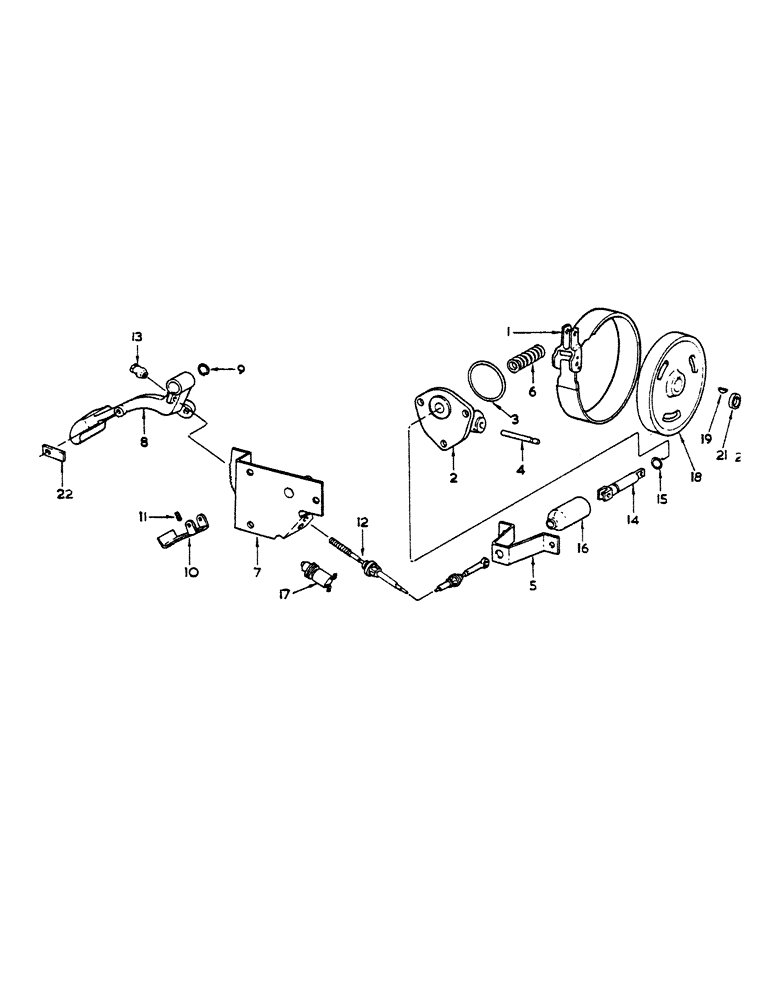

Запчасти Case IH 474 (04-03) - PARKLOCK (5.1) - BRAKES

1

401992R3

BAND

ASSY, BRAKE AND ACTUATING TOGGLE

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x 31/32 ROD END

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

535544R1

PIN

ANCHOR

2шт.

2

401997R1

PIVOT

PARKING BRAKE

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX HD CAP

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32 PARKING BRAKE PIVOT

1шт.

4

401998R1

PIVOT PIN

PIN, PARKING BRAKE PIVOT

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

5

401999R1

SUPPORT

BRACKET, CABLE HSG ANCHOR LOWER

1шт.

6

402000R1

SPRING

PARKING BRAKE RETURN

1шт.

7

402001R2

BRACKET

ASSY, PARKING BRAKE RATCHET

1шт.

8

402005R3

LEVER

PARKING BRAKE HAND

1шт.

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 DEG ANGLE DRIVE TYPE

1шт.

LUB

1шт.

9

269181R1

SNAP RING,#75, Ext

Ring, Snap, , parking brake hand lever #75, Ext

1шт.

10

404493R2

HANDLE

PARKING BRAKE PAWL

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-3/4 STD HD

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

402731R1

SPRING

PAWL HANDLE

1шт.

12

529084R1

NO LONGER SERVICED

CABLE ASSY, PARKING BRAKE

1шт.

13

402013R1

NUT

5/16-24 ADJUSTABLE PIVOT

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING, 3/8 RETAINER

2шт.

14

402014R1

PLUNGER

PARKING BRAKE PIVOT

1шт.

15

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16 PIVOT PLUNGER

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN, 5/16 x 15/16 STD HD

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

16

402015R1

BOOT

CABLE PROTECTION

1шт.

17

SWITCH, PARK BRAKE WARNING LIGHT - REFER TO ENGINE CONTROLS AND SWITCHES LISTING GROUP 08

1шт.

18

399828R1

HUB

BRAKE DRUM

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

327058R1

RING, SNAP

RING, RETAINING SNAP

1шт.

21

528450R1

SPACER

PARK BRAKE DRUM - TRACTORS W/HAND OPERATED DR BRAKE

1шт.

22

534318R1

NO LONGER SERVICED

BAR

1шт.
