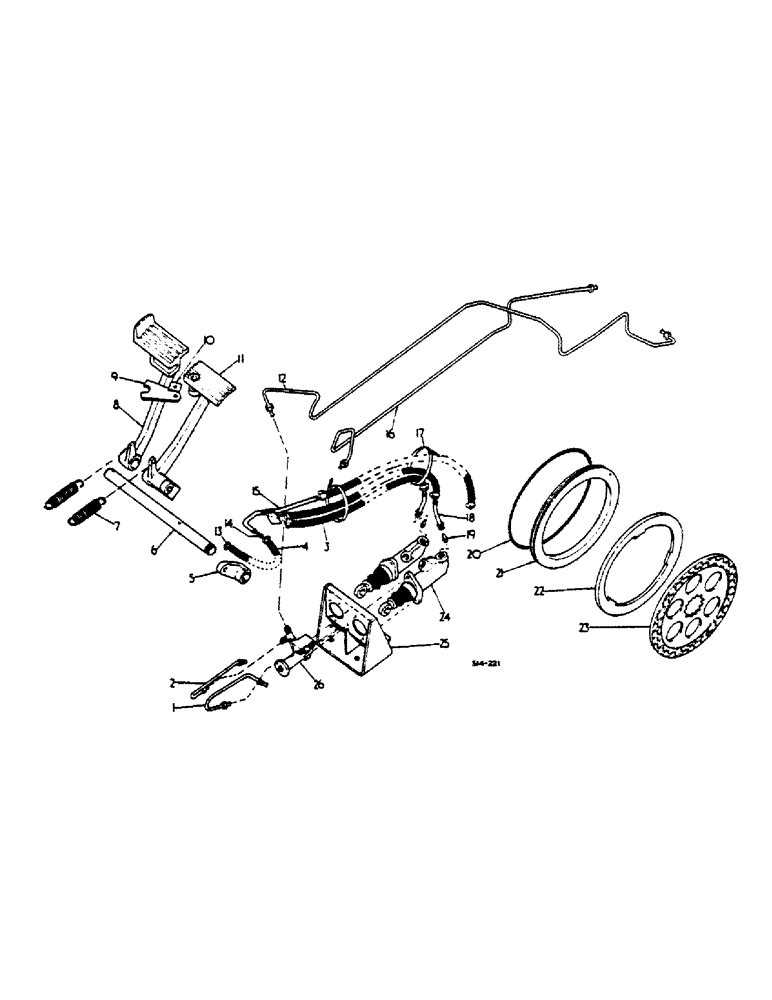

Запчасти Case IH 474 (04-02) - BRAKES (5.1) - BRAKES

1

530851R2

TUBE

ASSY, EQUALIZER L.H.

1шт.

2

530852R1

TUBE

ASSY, EQUALIZER R.H.

1шт.

3

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

HOSE, BRAKE RESERVOIR

3шт.

4

66368C1

FLEXIBLE HOSE

HOSE, BRAKE RESERVOIR SUPPLY

1шт.

5

529858R1

ARM

R.H. BRAKE PEDAL

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

6

399740R1

SHAFT

PEDAL SUPPORT - SYNCHROMESH DRIVE TRACTORS - HYDROSTATIC DRIVE TRACTORS W/ HAND SPEED CONTROLS -

1шт.

7

539556R1

SPRING

BRAKE PEDAL RETURN

2шт.

8

399741R2

PEDAL

R.H. BRAKE

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

617940

PIN

5/16 x 1-3/4 HV COILED SPRING

1шт.

9

43751DB

LATCH, PEDALS

PLATE, BRAKE PEDAL LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 SMALL B-HD SOLID

1шт.

10

51293D

SPRING

BRAKE PEDAL LOCK TENSION

1шт.

11

537095R11

PEDAL ASSY.

PEDAL ASSY, L.H. BRAKE

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

443570

LUBE NIPPLE,65 Degree, 1/4" NPT x .77" lg, Drive

FITTING, 1/4 65 DEG ANGLE DRIVE TYPE

1шт.

LUB

1шт.

12

66093C1

BRAKE LINE

TUBE ASSY, BRAKE L.H.

1шт.

13

20894R1

NO LONGER SERVICED

CLAMP, 5/8 TYPE D HOSE -

8шт.

13

534421R1

HOSE CLAMP

CLAMP, WORM DRIVE HOSE - OPT.

8шт.

13

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

8шт.

13

3112550R1

CLAMP

HOSE

8шт.

14

537518R1

SCREEN

and ORIFICE ASSY

1шт.

15

66369C1

TUBE ASSY.

TUBE ASSY, BRAKE RESERVOIR SUPPLY

1шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW, 8-32 x 3/8 C-Z HEX HD TAP

1шт.

16

66094C1

BRAKE LINE

TUBE ASSY, BRAKE R.H.

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

STRAP

2шт.

18

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

TUBE ASSY, BRAKE CYL SUPPLY

2шт.

19

537849R2

SCREEN

AND ORIFICE ASSY, BRAKE RESERVOIR

1шт.

TUBE

2шт.

20

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8 - BRAKE PISTON

2шт.

21

399737R2

PISTON ASSY.

PISTON, BRAKE

2шт.

22

399736R1

RING

BRAKE

2шт.

23

399734R1

NO LONGER SERVICED

DISC, BRAKE CENTRE

2шт.

24

527542R91

CYLINDER

ASSY, BRAKE MASTER

2шт.

25

529582R1

BRACKET

ASSY, BRAKE CYL MOUNTING - SYNCHROMESH DRIVE TRACTORS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 HEX

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

527545R1

BRACKET

ASSY, BRAKE CYL MOUNTING - HYDROSTATIC DRIVE TRACTORS

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 HEX HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 HEX

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

530374R92

VALVE

ASSY, BRAKE EQUALIZER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

ref

Part No.

English

1шт.

527433R1

CLIP

BRAKE RESERVOIR INLET HOSE, NOT ILLUSTRATED

1шт.
