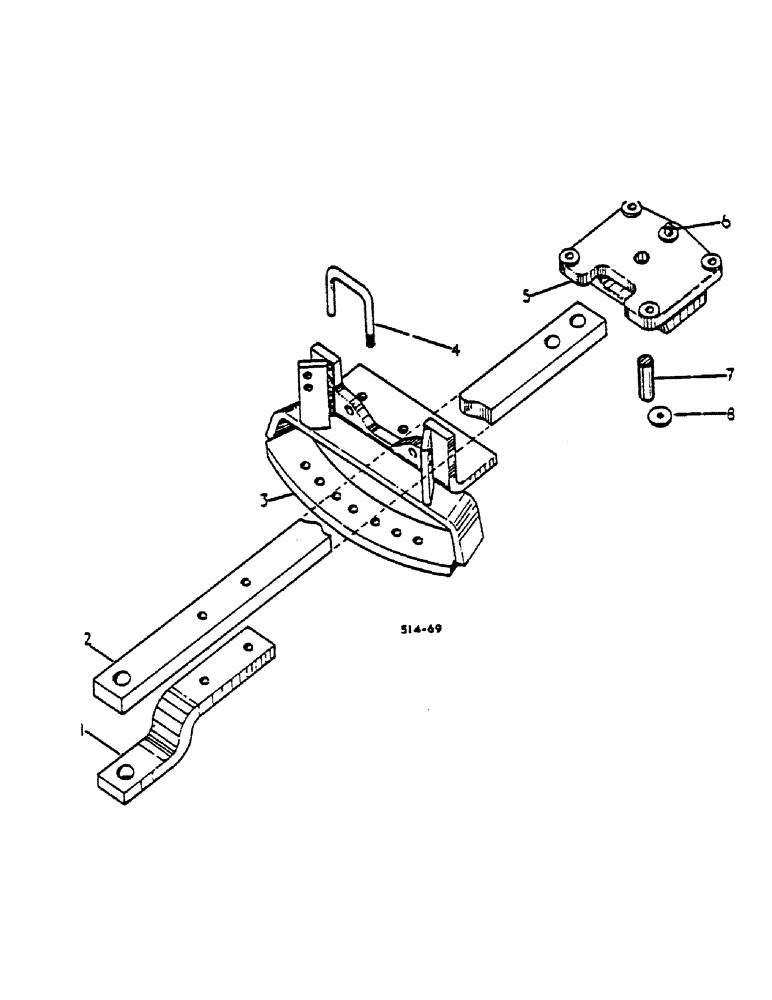

Запчасти Case IH 474 (09-10) - SWINGING DRAWBAR (12) - FRAME

1

527813R91

SWINGING DRAWBAR

ATTACHMENT, SWINGING DRAWBAR - TRACTORS NOT EQUIPPED W/THREE POINT HITCH ATT OR AUTOMATIC HITCH ATT. CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A

1шт.

1

527815R91

ATTACHMENT, SWINGING DRAWBAR - TRACTORS EQUIPPED W/THREE POINT HITCH ATT OUTSIDE CHECK CHAINS AND NOT EQUIPPED W/AUTOMATIC HITCH ATT

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS, DRAWBAR

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 HEX HD CAP, Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

406467R1

NO LONGER SERVICED

HITCH, SWINGING

1шт.

3

527973R1

DRAWBAR SUPPORT

SUPPORT ASSY, SWINGING DRAWBAR - UNIT A

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 HEX HD

5шт.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 DOWEL

2шт.

4

406470R1

AXLE PIN

PIN, DRAWBAR STOP

1шт.

19798R1

LOCK NUT,9/16"-12, GB

NUT, W/NYLON INSERT 9/16-12 HEX - OPTIONAL W/530408R1

1шт.

530408R1

NUT

W/NYLON INSERT 9/16-12 HEX - OPTIONAL W/19798R1

1шт.

5

406468R11

SUPPORT ASSY.

SUPPORT ASSY, DRAWBAR PIVOT

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 HEX HD CAP

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

19846R1

DOWEL,1/2" x 1 1/4"

PIN, DOWEL

1шт.

7

406469R1

PIN

DRAWBAR STOP

1шт.

8

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, DRAWBAR PIN LOCK

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
