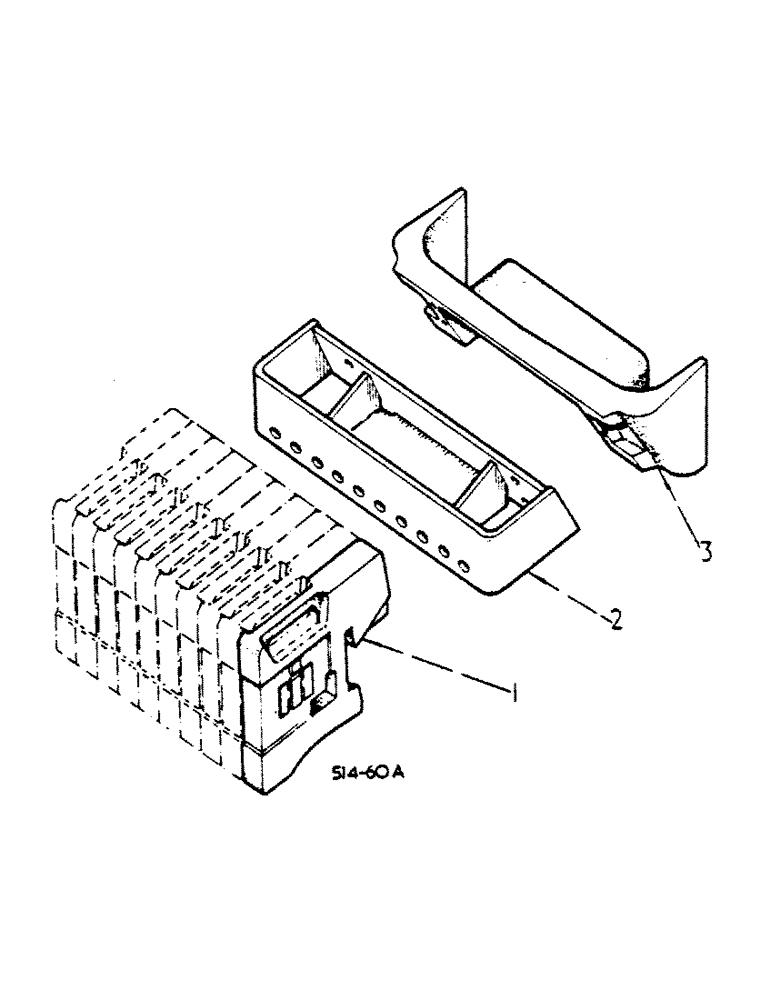

Запчасти Case IH 474 (09-09) - FRONT END WEIGHTS (12) - FRAME

1

383392R2

WEIGHT

FRONT - 67 LB

1шт.

125536

SQUARE NUT

SQ 1/2

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, HEX HD CAP 1/2 x 4

1шт.

2

534364R1

BRACKET

ASSY, FRONT CLEVIS

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, HEX HD CAP 3/4 x 2

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

3

527437R3

WEIGHT

FRONT END BUMPER

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

SCREW, HEX HD CAP 3/4 x 5 , Course threads

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, HEX HD CAP 3/4 x 4-1/4

2шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134

4шт.
