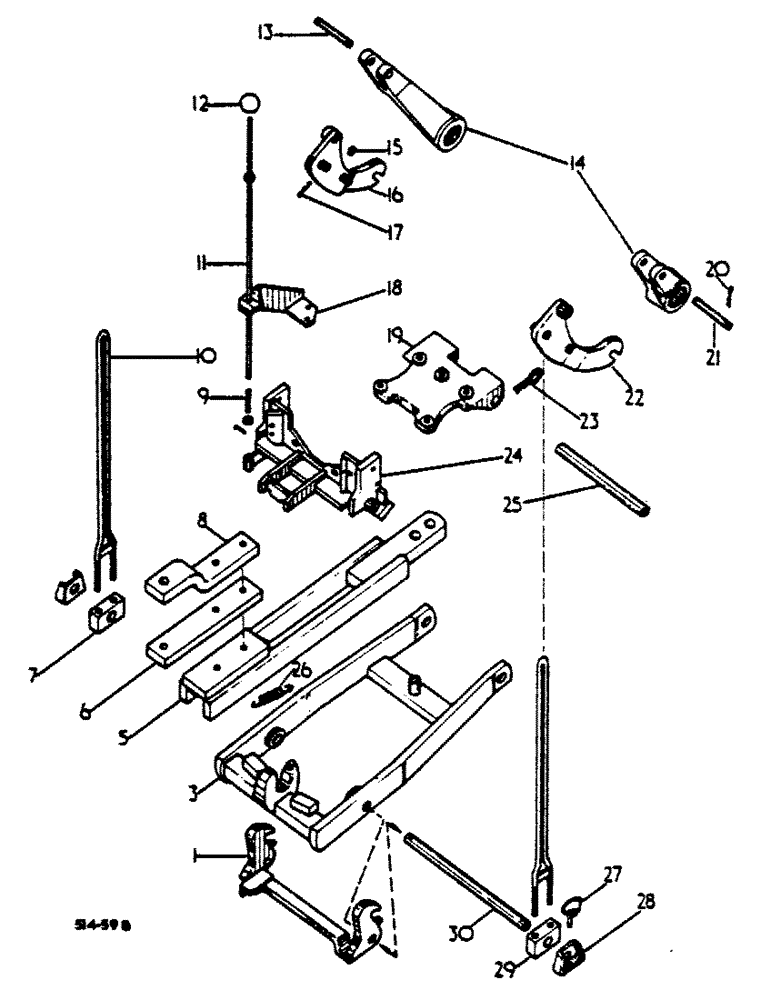

Запчасти Case IH 474 (09-07) - AUTOMATIC HITCH (12) - FRAME

529504R91

1шт.

ATTACHMENT, AUTOMATIC HITCH - FOR TRACTORS EQUIPPED W/HYD DRAFT CONTROL ATT AND AUTOMATIC HITCH W/THREE POSITION DRAWBAR, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A - ATTACHMENT, AUTOMATIC HITCH - FOR TRACTORS EQUIPPED W/HYD DRAFT CONTROL ATT AND AUTOMATIC HITCH W/O THREE POSITION DRAWBAR, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT B

1шт.

538400R91

PACKAGE, AUTOMATIC HITCH COMPLETING - FOR TRACTOR FITTED W/HYD DRAFT CONTROL, THREE POINT HITCH AND THREE POSITION DRAWBAR - CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT C

1шт.

1

535220R1

LATCH

ASSY, AUTOMATIC HITCH - UNIT A & B

1шт.

2

- NOT USED -

1шт.

3

533884R2

SPARE PART

HOOK ASSY, TRAILER - UNIT A & B

1шт.

4

- NOT USED -

1шт.

5

533915R1

SPARE PART

HITCH, DRAWBAR - UNIT A

1шт.

6

3064334R1

ARM

DRA WBAR CLEVIS - UNIT A

1шт.

7

533907R1

BLOCK

LIFT ROD ADJUSTMENT

1шт.

8

3064333R1

DRAWBAR CLAMP

CLEVIS, DRAWBAR - UNIT A

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, HEX HD CAP 5/8 x 3-3/4, Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

3061075R1

SPRING

CONTROL ROD RETURN

1шт.

10

533904R1

ROD

ASSY, LIFT

2шт.

425-107

NUT,7/16"-14, G5

HEX 7/16

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

533909R1

ROD

ASSY, HAND LATCH CONTROL

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

16038R1

WASHER

17/32 x 1 x 11 GA

1шт.

12

264055R2

KNOB

HAND LATCH CONTROL ROD

1шт.

13

533897R1

SPARE PART

PIN, ROCXSHAFT ARM - UNIT A & B

1шт.

14

- NOT APPLICABLE -

1шт.

15

267805R1

RING

CLIP, ROCKSHAFT ARM PIN - UNIT A & B

2шт.

16

533898R1

ARM

ASSY, EXTENSION L.H. - UNIT A & B

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

720631R1

LINCH PIN

PIN, Q.A. COTTER - UNIT A & B

2шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 GA

2шт.

18

533912R1

BRACKET

ASSY, LEVER SUPPORT

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, HEX HD CAP 1/2 x 2

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

533865R1

SUPPORT

ASSY, DRAWBAR PIVOT - UNIT A & B

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, HEX HD CAP 1/2 x 1-5/8

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, HEX HD CAP 1/2 x 2-1/2

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

720631R1

LINCH PIN

PIN, ROCKSHAFT ARM Q.A. COTTER

2шт.

21

533897R1

SPARE PART

PIN, ROCKSHAFT ARM

1шт.

22

533899R1

ARM

ASSY, EXTENSION R.H. - UNIT A & B

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

23

700387R1

CLIP, SPRING

CLIP, DRAWBAR PIVOT SUPPORT CROSS SHAFT - UNIT A & B

2шт.

24

533881R1

SUPPORT

ASSY, DRAWBAR - UNIT A & B

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, HEX HD CAP 5/8 x 1-1/2

6шт.

25

529541R1

SHAFT

DRAWBAR PIVOT SUPPORT CROSS - UNIT A & B

1шт.

26

399743R1

SPRING

LATCH RETURN - UNIT A & B

1шт.

27

704212R91

COTTER PIN

PIN ASSY, IMPLEMENT COTTER - UNIT A & B

2шт.

28

404787R1

SHIELD

LINCH PIN - UNIT A & B

2шт.

29

533907R1

BLOCK

LIFT ROD ADJUSTMENT - UNIT A & B

1шт.

30

533908R1

SHAFT

LIFT ROD CROSS - UNIT A & B

1шт.

Q123

WASHER

1-1/32 x 2-1/2 x 16 GA

2шт.
