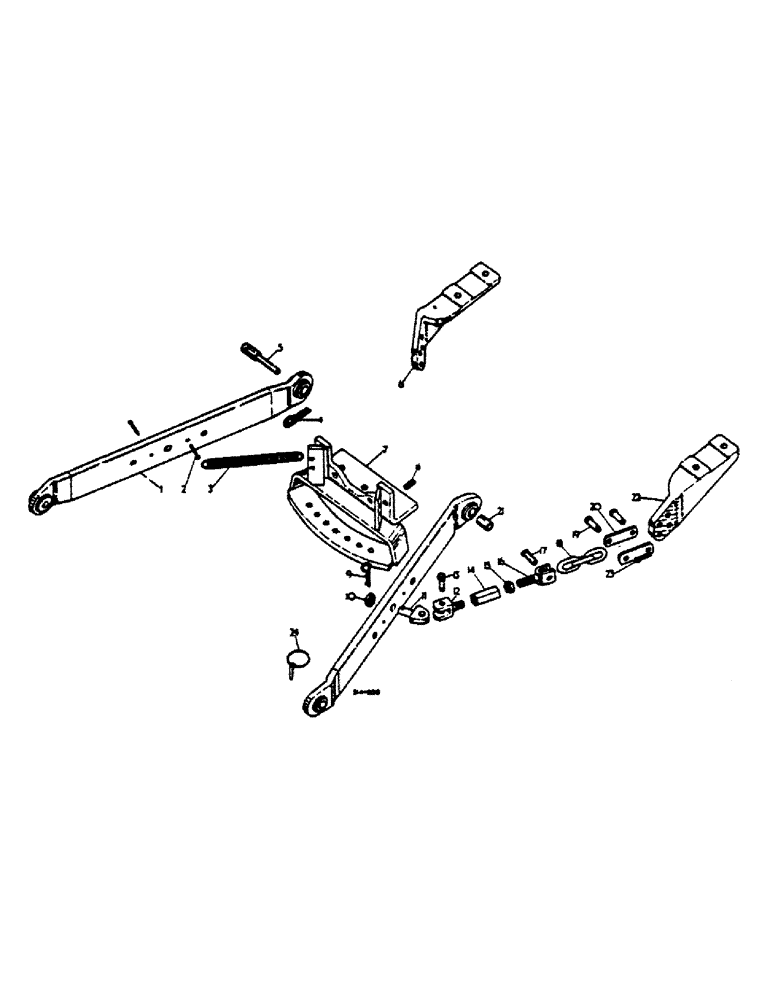

Запчасти Case IH 474 (09-06) - LOWER LINKS, THREE POINT HITCH (12) - FRAME

W/OUTSIDE CHECK CHAINS

1шт.

1

529872R1

LINK

ASSY, LOWER

2шт.

2

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

4

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

5

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

6

529874R1

SUPPORT

BRACKET, CHECK CHAIN L.H.

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 HEX HD CAP

2шт.

7

527973R1

DRAWBAR SUPPORT

SUPPORT ASSY, SWINGING DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 HEX HD CAP - UNIT A

5шт.

8

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 DOWEL - UNIT A

2шт.

9

529895R1

CLIP

PIN, SPRING

2шт.

10

536658R1

WASHER

GROOVES

2шт.

11

3113599R1

BOLT,7/8" - 14 x 1.90"

EYE BOLT, STAB REAR

2шт.

12

3113597R1

YOKE

CLEVIS ASSY, LIMITER CHAIN L.H. THD

2шт.

13

528112R1

PIN

LIMITER CHAIN

2шт.

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), 1/8" x 7/8"

2шт.

14

3113596R1

NUT

ADJUSTMENT

2шт.

15

219754R1

NUT

7/8-14 HEX JAM

2шт.

16

403039R1

CLEVIS COUPLING

CLEVIS ASSY, LIMITER CHAIN

2шт.

17

403037R1

PIN

LIMITER CHAIN

2шт.

18

3113595R1

CHAIN,139.7mm L

CHAIN, LIMITER

2шт.

19

528112R1

PIN

LIMITER CHAIN

4шт.

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), , Check chain strap 1/8" x 7/8"

2шт.

20

3113594R1

PLATE

STRAP, CHECK CHAIN ADJ

4шт.

21

530826R1

BUSHING

LOWER LINK

2шт.

22

529875R1

SUPPORT

BRACKET, CHECK CHAIN R.H.

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 HEX HD CAP

2шт.

23

720631

COTTER PIN

PIN, ADJ STRAP COTTER

2шт.

24

533189R1

PIN

ASSY, LOWER LINK DRAWBAR

2шт.
