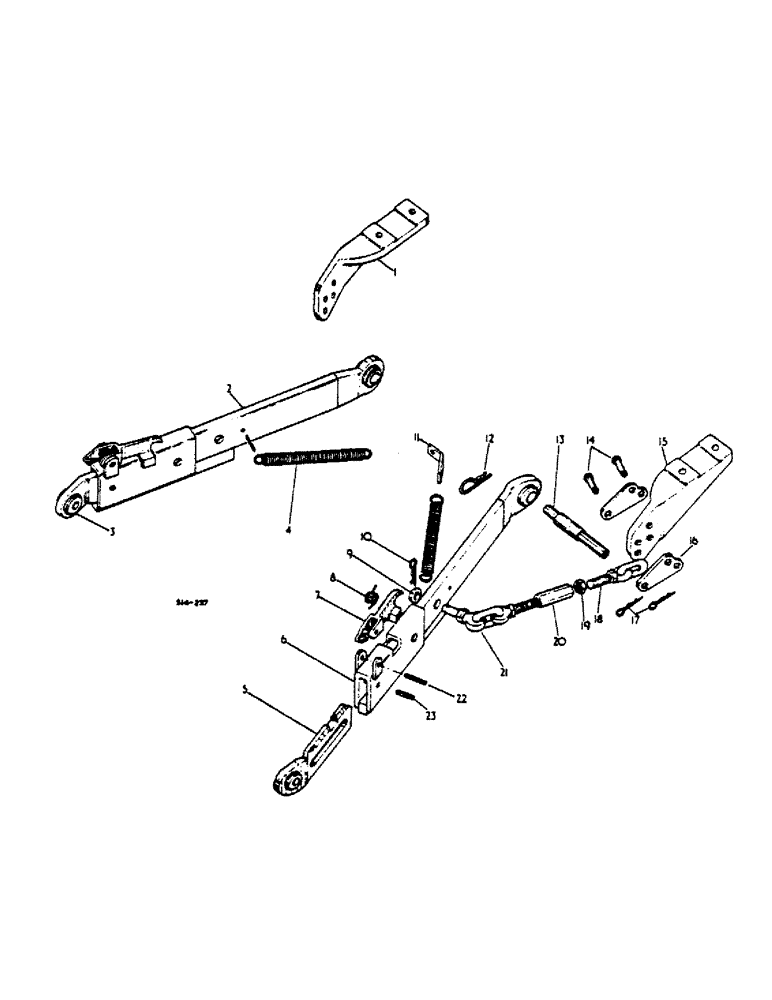

Запчасти Case IH 474 (09-04) - LOWER LINKS, THREE POINT HITCH (12) - FRAME

W/OUTSIDE CHECK CHAINS - AUSTRALIAN MARKET

1шт.

1

529876R1

BRACKET

CHECK CHAIN L.H.

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 HEX HD CAP

2шт.

2

527961R2

LINK

ASSY, FRONT SECTION L.H. LOWER

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

3

403019R1

LOWER LINK

LINK, ASSY, REAR SECTION L.H. LOWER

1шт.

4

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

5

403020R1

LOWER LINK

LINK, ASSY, REAR SECTION R.H. LOWER

1шт.

6

527962R2

LINK

ASSY, FRONT SECTION R.H. LOWER

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

7

403023R1

LATCH

REAR SECTION LOWER

2шт.

8

403024R1

SPRING

2шт.

9

536658R1

WASHER

ADJ EYE BOLT CHAIN PIN

2шт.

10

529895R1

CLIP

PIN, ADJ EYE BOLT WASHER SPRING

2шт.

11

539226R1

BRACKET, SWAY CHAIN

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

538406R1

COTTER PIN

PIN, Q/ATTACHABLE COTTER

2шт.

13

402656R1

PIN

LOWER LINK

2шт.

14

528112R1

PIN

LIMITER CHAIN

4шт.

15

529877R1

BRACKET

CHECK CHAIN R.H.

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 HEX HD CAP

2шт.

16

529878R1

STRAP

CHECK CHAIN ADJ

4шт.

17

720631R1

LINCH PIN

PIN, ADJ STRAP COTTER

4шт.

18

529882R2

BOLT

ASSY, EYE AND CHAIN

2шт.

19

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HEX JAM

2шт.

20

529885R1

TURNBUCKLE,3/4" - 10

CHECK CHAIN

2шт.

21

529890R2

BOLT

ASSY, LOWER LINK PIN AND CHAIN

2шт.

22

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

23

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.
