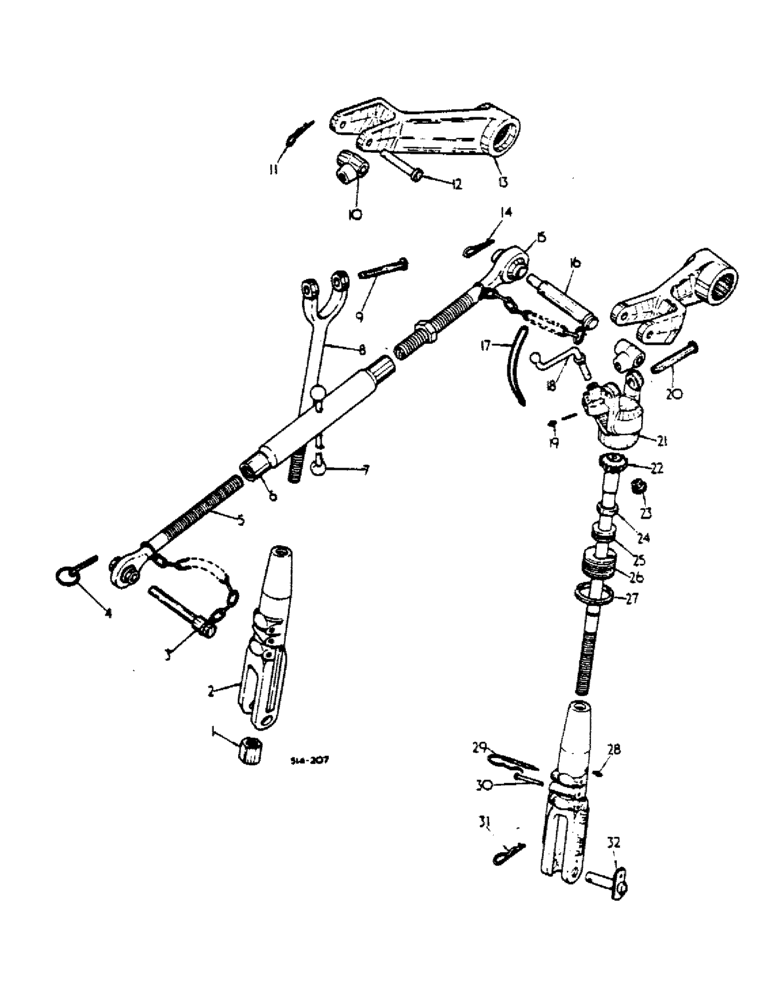

Запчасти Case IH 474 (09-02) - THREE POINT HITCH (12) - FRAME

1

527937R1

NUT

LIFT LINK

2шт.

2

402635R2

HOUSING

LIFT LINK YOKE - UNIT A, B, C

2шт.

402643R1

HOUSING

LIFT LINK YOKE - UNIT D

2шт.

3

528081R1

PIN ASSY.

PIN ASSY, UPPER LINK, CAT.1.

1шт.

4

533189R1

PIN

ASSY, IMPLEMENT

1шт.

5

527996R1

SCREW

SCREW ASSY, R.H. THREADED UPPER

1шт.

6

528003R1

TURNBUCKLE

1шт.

7

3048296R1

BUTTON

KNOB, TURNBUCKLE ROD

1шт.

8

527940R1

FORK

YOKE ASSY, LIFT L.H. - UNIT A, B

1шт.

527935R11

CLEVIS

YOKE ASSY, LIFT L.H. - UNIT C

1шт.

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

527948R91

CLEVIS,7/8" - 9

YOKE ASSY, LIFT L.H. - UNIT D

1шт.

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

9

3044309R1

PIN

5/8 x 3-1/2 STD

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

704207R3

PIVOT

SWIVEL, LEVELLING

2шт.

11

720631R1

LINCH PIN

PIN, ROCKSHAFT ARM COTTER - UNIT A, C & D

2шт.

12

3044309R1

PIN

ROCKSHAFT, ARM HD - UNIT A, C & D

2шт.

13

420634R2

ARM, ROCKSHAFT

2шт.

14

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT Q.A.

1шт.

15

527994R1

SCREW

ASSY, L.H. THREAD UPPER

1шт.

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

1-1/8-7 HEX LOCK

1шт.

16

528084R1

HITCH PIN

PIN ASSY, UPPER LINK, CAT 11.

1шт.

17

3072424R1

SPRING

LEVELLING SCREW HANDLE

1шт.

18

527943R1

CRANK

HANDLE, LEVELLING SCREW

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

20

3069069R1

PIN

5/8 x 3-3/4 HARDENED

1шт.

21

3074422R2

HOUSING, LEVELLING SCREW

1шт.

22

527942R1

LOCK SCREW

SCREW, LIFT R.H. LINK LEVELLING - UNIT A, B

1шт.

527939R1

NO LONGER SERVICED,7/8" - 9 x 16 1/32"

SCREW, LIFT R.H. LINK LEVELLING - UNIT C

1шт.

527951R1

NO LONGER SERVICED

SCREW, LIFT R.H. LINK LEVELLING - UNIT D

1шт.

23

3069063R1

GEAR

PINION

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

24

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LEVELLING SCREW BRG

1шт.

25

3044346R91

BALL BEARING

BEARING, LEVELLING SCREW RM

1шт.

3044347R91

THRUST BEARING

BEARING, LEVELLING SCREW FH

1шт.

3044348R91

BEARING, THRUST

BEARING, LEVELLING SCREW SG

1шт.

3068049R91

BALL BEARING

BEARING, LEVELLING SCREW HIVES - OPTIONAL

1шт.

26

3069064R1

BEARING

SCREW, BEARING LEVELLING

1шт.

27

3069065R1

LOCK NUT

LEVELLING SCREW BEARING

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 DRIVE TYPE STR LUB

2шт.

29

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, LIFT LINK LOCK

2шт.

30

270721C1

PIN

FLOAT STOP

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

31

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT PIN QA - UNIT A, B

2шт.

31

533189R1

PIN

ASSY, LOWER LINK DRAWBAR - UNIT C & D

2шт.

32

527952R1

PIN ASSY.

PIN ASSY, LIFT LINK PIVOT - UNIT A, B, C

2шт.

32

402645R91

PIN, LIFT LINK PIVOT - UNIT D

2шт.

ref

PART NO.

English

1шт.

528079R91

UPPER LINK

LINK ASSY, UPPER , PARTS NOT LISTED

1шт.
