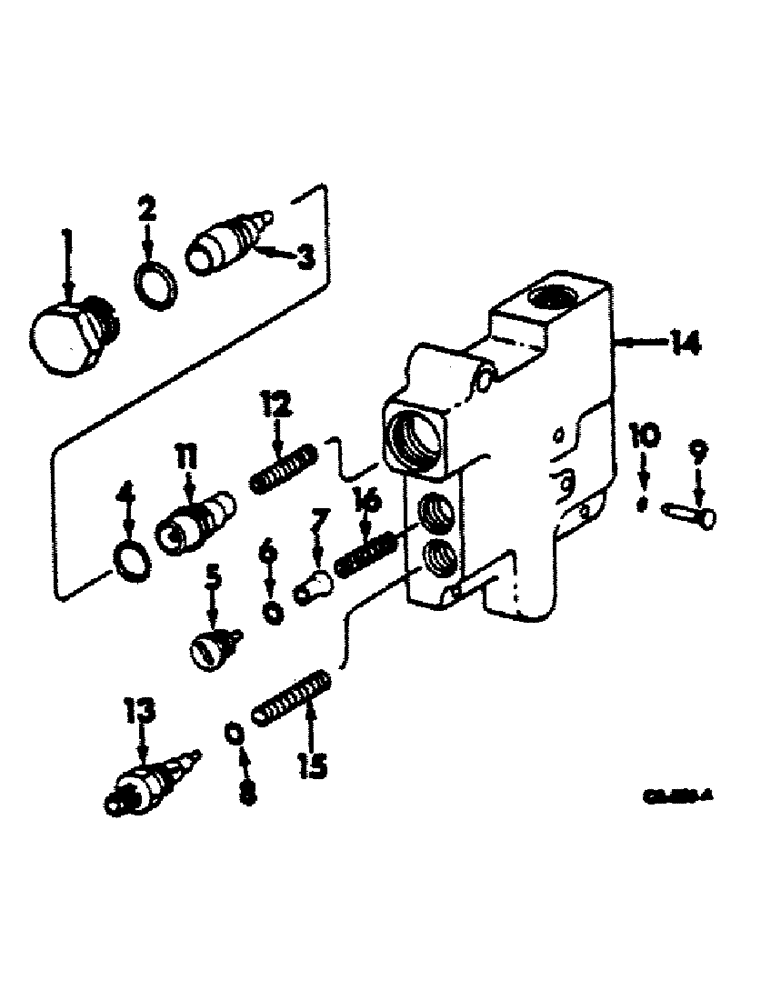

Запчасти Case IH 474 (10-23) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

400001R91

CONTROL VALVE

VALVE ASSY, UNLOADING AND FLOW

1шт.

CONTROL

1шт.

1

545494R1

PLUG

UNLOADING VALVE

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 IN. OD TUBE

1шт.

3

376762R11

PISTON ASSY.

PISTON ASSY, UNLOADING VALVE

1шт.

4

406181R1

O-RING,21.82mm ID x 3.53mm Width

UNLOADING VALVE PISTON

1шт.

5

399851R1

PLUG

CHECK VALVE

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

7

389587R3

CHECK VALVE

VALVE, CHECK POPPET

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

9

399854R1

SHAFT

RETAINING

1шт.

10

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 x 1/16

1шт.

11

530138R1

BODY

ASSY, UNLOADING VALVE

1шт.

12

530141R1

SPRING

UNLOADING

1шт.

13

527910R1

FITTING

FLOW CONTROL

1шт.

14

BODY, UNLOADING AND FLOW CONTROL VALVE - NOT SERVICED SEPARATELY, FURNISH VALVE ASSY 400001R91

1шт.

15

530142R1

SPRING

FLOW CONTROL VALVE

1шт.

16

535547R1

SPRING

CHECK POPPET

1шт.
