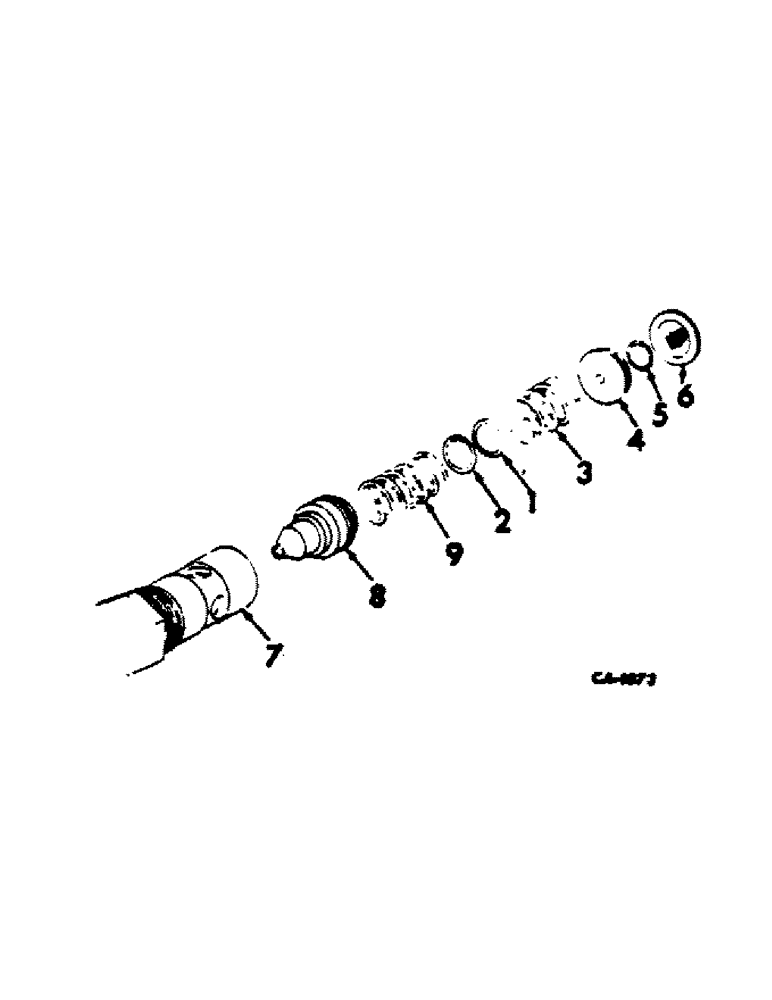

Запчасти Case IH 474 (10-22) - PILOT RELIEF VALVE (07) - HYDRAULICS

399858R91

VALVE

ASSY, PILOT RELIEF

1шт.

1

406185R1

O-RING

5/16 x 7/16 x 1/16 -S- TREATED

1шт.

2

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

3

386040R1

SPRING

POPPET RETURN

1шт.

4

386042R1

PLATE

ORIFICE

1шт.

5

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

6

386073R91

SCREEN

ASSY, PILOT RELIEF VALVE

1шт.

7

BODY, RELIEF VALVE - NOT SERVICED SEPARATELY, FURNISH VALVE ASSY 399858R91

1шт.

8

VALVE, PILOT RELIEF - NOT SERVICED SEPARATELY, FURNISH VALVE ASSY 399858R91

1шт.

9

SPRING, PILOT RELIEF - NOT SERVICED SEPARATELY, FURNISH VALVE ASSY 399858R91

1шт.
