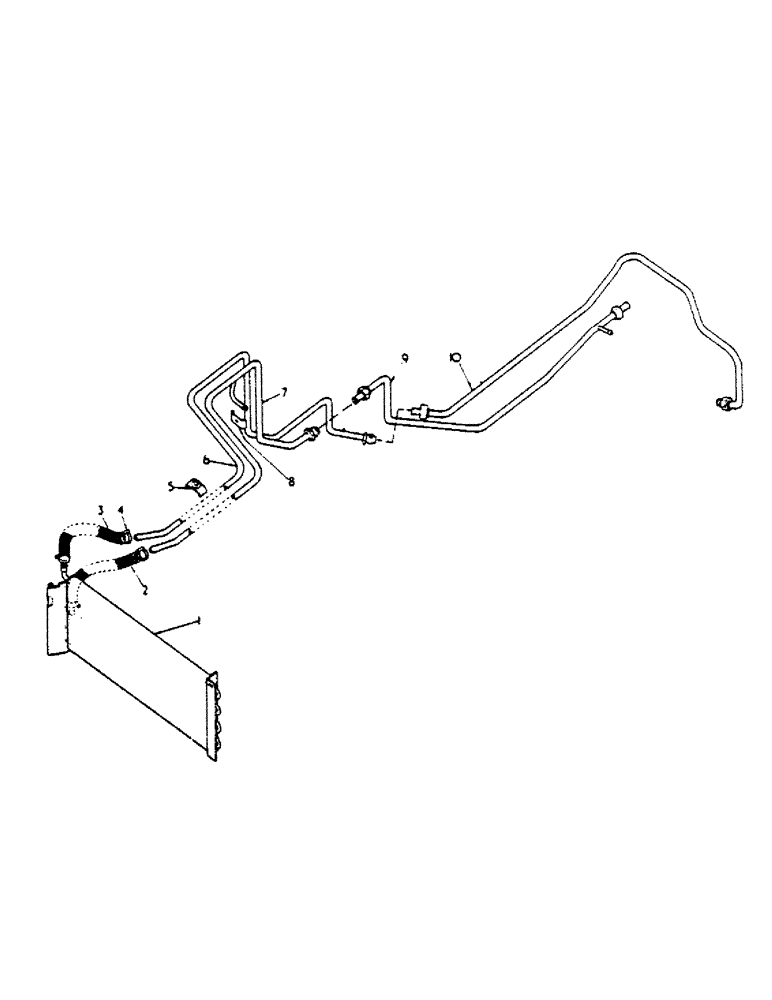

Запчасти Case IH 474 (06-02) - OIL COOLER, SYNCHROMESH DRIVE TRACTORS Cooling

1

406407R1

NO LONGER SERVICED

COOLER, OIL

1шт.

1380S

PIN

5/16 x 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE, OIL COOLER OUTLET

1шт.

3

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, OIL COOLER INLET - OPTIONAL W/529613R1

1шт.

3

529613R1

FLEXIBLE HOSE

HOSE, OIL COOLER INLET - OPTIONAL W/388606R1

1шт.

4

168802H1

HOSE CLAMP

CLAMP, OIL COOLER HOSE - OPTIONAL W/3074617R1

4шт.

4

3074617R1

CLAMP

OIL COOLER HOSE - OPTIONAL W/168802H

4шт.

5

529644R11

CLAMP

ASSY, OIL COOLER TUBE

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

66098C1

PIPE

TUBE ASSY, OIL COOLER INLET

1шт.

7

66100C1

TUBE

ASSY, OIL COOLER OUTLET

1шт.

8

381448R1

CLAMP

OIL COOLER TUBE

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

66096C1

TUBE

ASSY, OIL COOLER RETURN REAR

1шт.

10

66095C1

TUBE

ASSY, OIL COOLER REAR

1шт.
