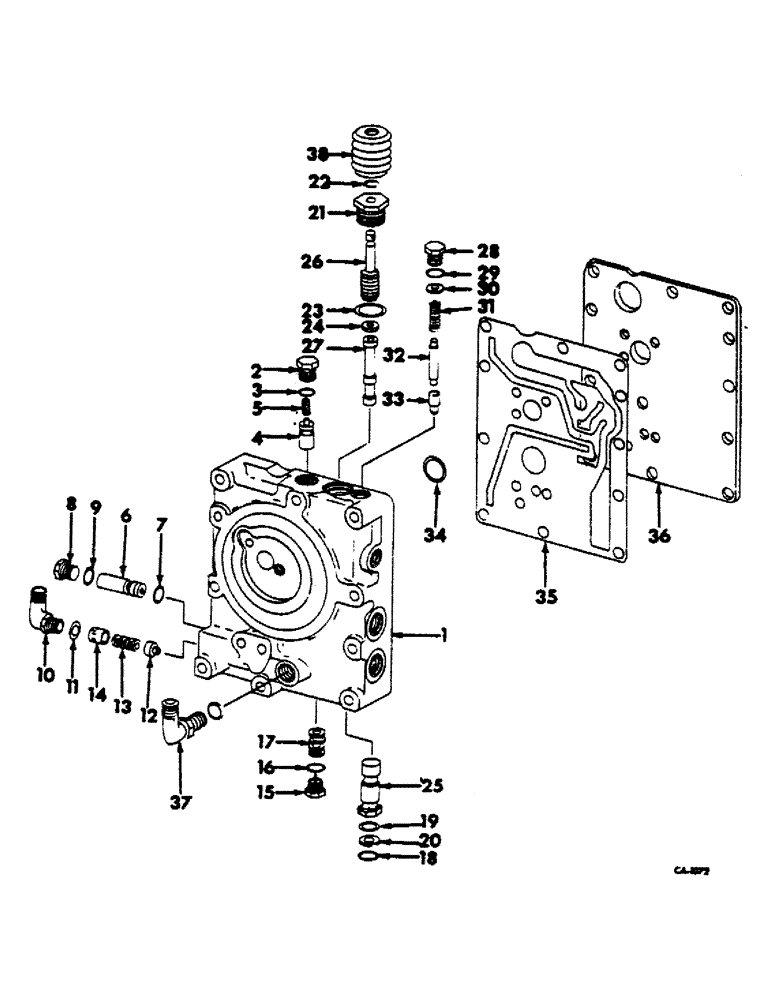

Запчасти Case IH 474 (10-19) - MULTIPLE CONTROL VALVE (07) - HYDRAULICS

1

405440R95

LOCK VALVE

VALVE ASSY, MULTIPLE CONTROL

1шт.

1

BODY ASSY, MULTIPLE CONTROL VALVE - NOT SERVICED SEPARATELY, FURNISH MULTIPLE CONTROL VALVE ASSY

1шт.

2

529492R1

PLUG

COOLER BY-PASS

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

4

382301R1

LOCK VALVE

VALVE, BY-PASS

1шт.

5

382299R1

SPRING

BY-PASS VALVE

1шт.

6

384444R92

VALVE

ASSY, SAFETY - 1500 PSI

1шт.

7

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

1шт.

8

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

10

533358R1

ELBOW

90 DEG

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

12

382304R1

CHECK VALVE

VALVE, CHECK

1шт.

13

399869R1

SPRING

CHECK VALVE

1шт.

14

399870R1

RETAINER

CHECK VALVE SPRING

1шт.

15

405446R1

PLUG

ASSY, FLOW DIVIDER

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

17

405448R1

SPRING

FLOW DIVIDER VALVE

1шт.

18

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

19

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

20

378985R2

BACK-UP RING

BACK-UP

1шт.

21

530781R2

GUIDE

CONTROL VALVE STEM

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

23

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

24

530779R1

SHIM

CONTROL VALVE

3шт.

25

399858R91

VALVE

ASSY, PILOT RELIEF - 2500 PSI - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF PILOT RELIEF VALVE

1шт.

26

530775R93

VALVE

ASSY, CONTROL

1шт.

27

405452R1

CONTROL VALVE

VALVE CONTROL

1шт.

28

573983R1

PLUG

REGULATOR VALVE

1шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

30

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

SPRING RETAINER

3шт.

31

549850R1

SPRING

PRESSURE REGULATOR VALVE

1шт.

32

399881R1

PIN

PRESSURE REGULATOR VALVE

1шт.

33

399882R1

POPPET

PRESSURE REGULATOR POPPET

1шт.

34

387926R2

RING

1шт.

35

65000C1

GASKET

1шт.

36

405458R1

PLATE

1шт.

37

530052R2

VALVE

ASSY, CHECK

1шт.

38

530780R1

BOOT

IPTO CONTROL DUST

1шт.
