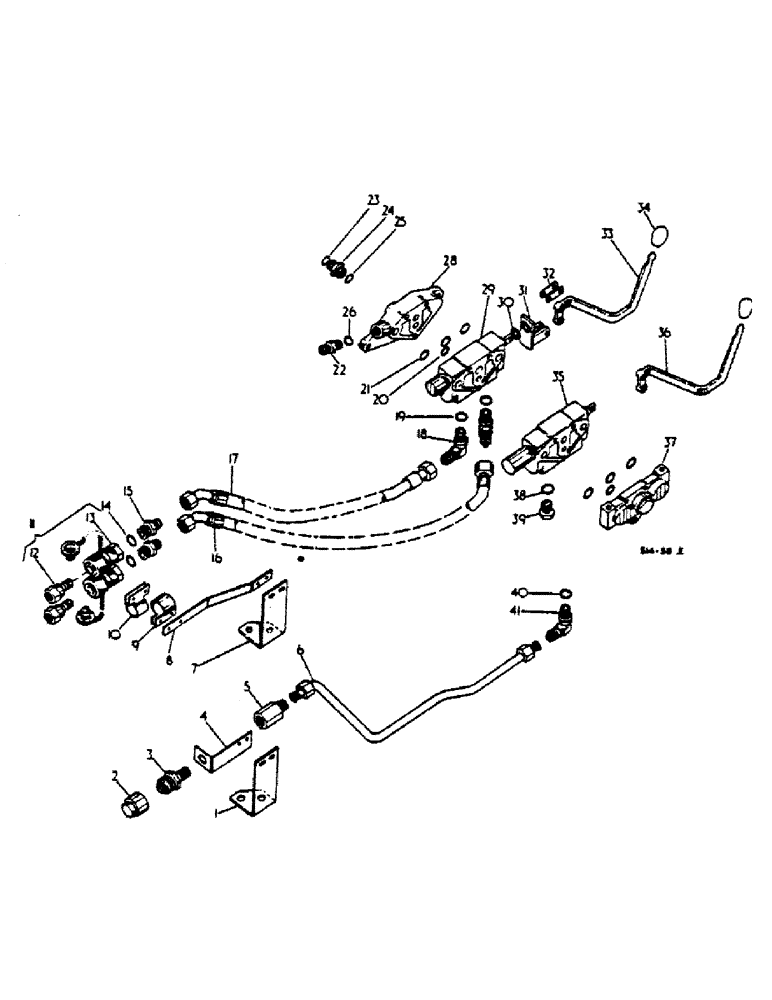

Запчасти Case IH 474 (10-09) - AUXILIARY VALVES (07) - HYDRAULICS

529688R91

ATTACHMENT, SINGLE AUXILLARY HYDRAULIC VALVE - SINGLE ACTING VALVE AND SELF SEALING COUPLING - FIRST BANK - CONSISTS OF ALL UNMARKED PARTS, AND THOSE MARKED UNIT A

1шт.

529690R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE - DOUBLE ACTING VALVE AND TWO SELF SEALING COUPLINGS - FIRST BANK - CONSISTS OF ALL UNMARKED PARTS, AND THOSE MARKED UNIT B

1шт.

529692R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE - SINGLE ACTING VALVE AND MUST BE USED IN CONJUNCTION W/FIRST BANK SINGLE AUXILIARY HYDRAULIC VALVE ATTACHMENT - SECOND BANK - CONSISTS OF ALL UNMARKED PARTS, AND THOSE MARKED UNIT C

1шт.

529694R91

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE - DOUBLE ACTING VALVE AND MUST BE USED IN CONJUNCTION W/FIRST BANK SINGLE AUXILIARY HYDRAULIC ATTACHMENT - SECOND BANK - - CONSISTS OF ALL UNMARKED PARTS, AND THOSE MARKED UNIT D -

1шт.

535960R91

ATTACHMENT, SINGLE AUXILIARY HYD RAULIC VALVE - SINGLE ACTING VALVE AND ONE SELF SEALING BREAKAWAY COUPLIN - FIRST BANK - CONSISTS OF ALL UNMARKED PAR - AND THOSE MARKED UNIT E

1шт.

537490R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE - SINGLE ACTING VALVE - SPECIAL FEATURE - SCANDANAVIAN MARKET - CONSISTS OF ALL UNMARKED PAR AND THOSE MARKED UNIT F

1шт.

537216R92

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE - DOUBLE ACTING VALVE - FIRST BANK - SPECIAL FEATURE - AUSTRALIAN MARKET - CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT G

1шт.

1

533139R1

BRACKET

ASSY, BREAKAWAY COUPLING - UNIT A

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

705578R1

CYLINDER END CAP

CAP, SCREWED SELF SEALING COUPLING

1шт.

DUST - UNIT A - OPTIONAL W/3041963R1

1шт.

2

3041963R1

CAP

SCREWED SELF SEALING COUPLING

1шт.

DUST - UNIT A - OPTIONAL W/705578R1

1шт.

3

705579R1

COUPLING

SCREWED SELF SEALING - UNIT A - OPTIONAL W/3041962R1

1шт.

3

3041962R1

COUPLING, SELF SEALING - UNIT A - OPTIONAL W/705579R1

1шт.

4

533140R1

BRACKET

SCREW COUPLING - UNIT A

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

2шт.

5

529708R1

ADAPTER

ADAPTOR, AUX. VALVE TO COUPLING TUBE - UNIT A

1шт.

704337R1

SEALING WASHER

VALVE TO COUPLING TUBE

1шт.

ADAPTOR

2шт.

6

533138R1

TUBE ASSY.

TUBE ASSY, W/SLEEVE AND NUTS, AUX VALVE

1шт.

TO COUPLING - UNIT A

1шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 7/8-14 C-Z 37 DEG HYD FLARED TUBE

2шт.

9403451

SLEEVE,37 Degree, 5/8" Tube

5/8 C-Z 37 DEG HYD FLARED TUBE

2шт.

7

533139R1

BRACKET

ASSY, SELF SEALING COUPLING - UNIT B, E & G

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

536143R1

BAR, BREAKAWAY COUPLING BRACKET - UNIT B, E & G

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 HEX HD

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

PLAIN

2шт.

109084

NUT,1/4"-20, G5

2шт.

9

3114106R1

CLAMP

COUPLING - UNIT 2B & E

1шт.

10

3114106R1

CLAMP

COUPLING - UNIT 2 B & E

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 HEX

2шт.

102214

WASHER

5/16 MED LOCK

2шт.

11

3067991R91

BREAKER POINTS

COUPLING, SELF SEALING BREAKAWAY - UNIT 2B AND E

1шт.

12

3067992R91

COUPLING, BREAK AWAY

COUPLING, SELF SEALING BREAKAWAY - MALE - UNIT 2B AND E

1шт.

9410360

PLUG

7/8-14 C-Z STR THD O-RING BOSS - UNIT 2B AND E & 2G

1шт.

13

3067993R91

COUPLING, BREAK AWAY

COUPLING, SELF SEALING BREAKAWAY - FEMALE - UNIT 2B AND E

1шт.

373220R1

PLUG

SEAL, BREAKAWAY COUPLING DUST - UNIT 2B AND E

1шт.

401757R1

PLUG, BREAKAWAY COUPLING DUST

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

BREAKAWAY COUPLING DUST - UNIT 2B AND E

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT 2B, E AND 2G

1шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 DEG HYD FLARED - UNIT 2B, E AND 2G

1шт.

16

533141R1

HOSE

AUX VALVE TO COUPLING LONG HYD - UNIT B, E AND G

1шт.

17

533142R1

HOSE

AUX VALVE TO COUPLING SHORT HYD - UNIT B AND G

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE

1шт.

ADJ STR THD O-RING 90 DEG - UNIT 2B, E AND G

2шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT 2B, E AND G

2шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16 - UNIT C AND D - 2 FOR UNITS A, B, E, F AND G

1шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16 - 3 FOR UNITS C AND D - 6 FOR UNITS A, B, E, F AND G

1шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 DEG HYD FLARED TUBE - UNITA A, B, E, F AND G

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 - UNITS A, B, E, F AND G

1шт.

24

529705R1

UNION

CONNECTOR, AUX. VALVE - UNITS A, B, E, F AND G

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE -UNITS A, B, E, F AND G

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNITS A, B, E, F AND G

1шт.

27

- NOT APPLICABLE -

1шт.

28

3116012R1

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR - UNITS A, B, E, F AND G

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

529696R91

HYDRAULIC VALVE

VALVE ASSY, DOUBLE ACTING AUX HYD - UNITS B, D AND G - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF DOUBLE ACTING AUX HYD VALVE ASSY

1шт.

30

529698R1

SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk

AUX VALVE WIPER

1шт.

31

529699R1

BRACKET

ASSY AUX VALVE CONTROL

1шт.

LEVER

1шт.

3061228R91

LOCK NUT

1/4-20 NYLON INSERT LOCK

1шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW, 1/4-20 x 5/8 HEX SOC HD CAP

2шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

32

529702R1

LINK

CONTROL LEVER CONNECTING

2шт.

102776H

CLEVIS PIN,1/4" x 11/16"

PIN, CLEVIS, , Rod end 1/4" x 11/16"

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 COTTER

2шт.

33

530369R1

LEVER

ASSY, AUX VALVE CONTROL - UNITS A, B, E, F AND G

1шт.

34

400072R1

BUTTON

KNOB, AUX VALVE CONTROL LEVER

2шт.

35

529695R91

HYDRAULIC VALVE

VALVE ASSY, SINGLE ACTING AUX HYD - UNITS A, C, E AND F - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF SINGLE ACTING AUX, HYD VALVE ASSY

1шт.

36

3112577R1

LEVER

ASSY, AUX VALVE CONTROL - UNIT C AND D

1шт.

37

529697R1

END PLATE

PLATE, AUX HYD VALVE END - UNIT A, B, E, F AND G

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 HEX HD CAP - 2 FOR UNITS A, B, E, F AND G

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4 - 1/4 HEX HD CAP - UNITS A,B,E,F AND G

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 HEX HD CAP - UNITS C AND D

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22344

SET SCREW

SCREW, 3/8-16 x 5-3/4 - UNIT C AND D

1шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT C AND F, 2 FOR UNIT D

1шт.

39

9410360

PLUG

7/8-14 C-Z STR THD O-RING BOSS - UNIT C AND F, 2 FOR UNIT D

1шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT A

1шт.

41

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG. HYD FLARED TUBE

1шт.

ADJ STR THD O-RING 90 DEG - UNIT A

1шт.

ref

Part No.

English

1шт.

537080R1

DECAL

PRODUCT GRAPHIC, CONTROL HANDLE, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
