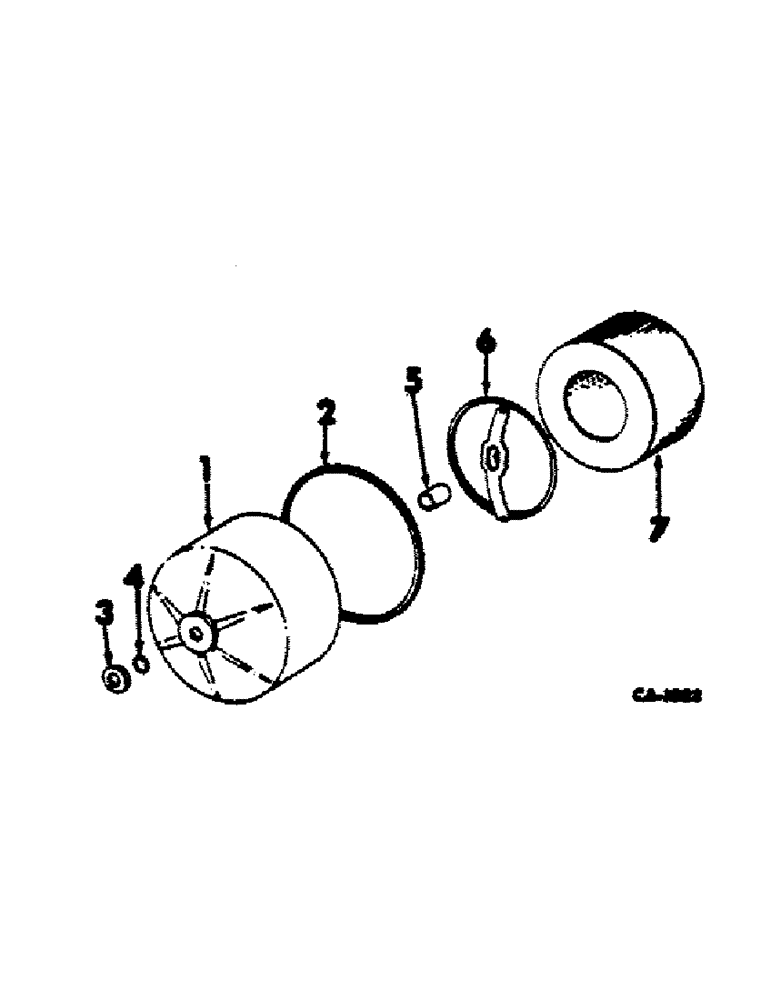

Запчасти Case IH 474 (10-08) - OIL FILTER (07) - HYDRAULICS

1

405461R1

SPARE PART

CASE, FILTER

1шт.

2

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

538269R1

BOLT

CENTRE

1шт.

3

405463R1

RETAINER

SEAL

1шт.

4

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32 FILTER CASE SEAL

1шт.

5

- NOT USED -

1шт.

6

405464R1

VALVE

+ SCREEN ASSY, BY-PASS

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT ASSY - NOT SERVICED SEPARATELY, FURNISH OIL FILTER ELEMENT SERVICE PACKAGE

1шт.

530144R91

PACKAGE

OIL FILTER ELEMENT - SYNCHROMESH DRIVE TRACTORS - SERVICE - CONSISTS OF 1 GASKET 405462R1, 1 O-RING 355966R1, ELEMENT 40103R1, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

"ELEMENT, 40103R1", is not available for service

1шт.

65126C91

FILTER, ELEMENT

PACKAGE, OIL FILTER ELEMENT - HYDROSTATIC DRIVE TRACTORS - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
