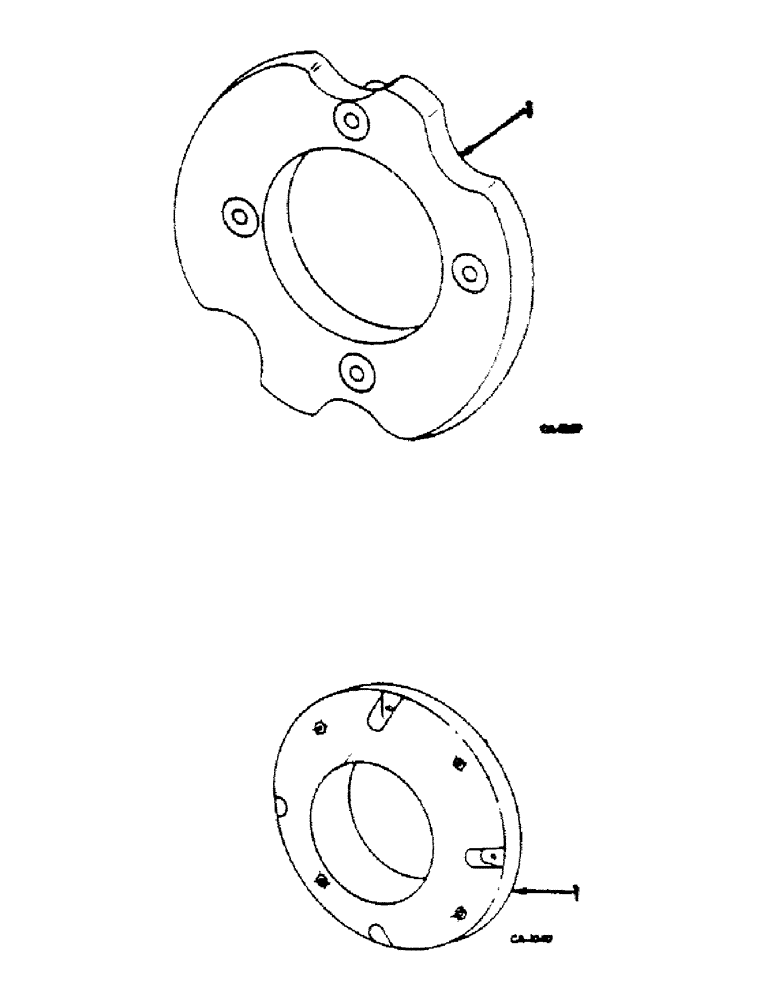

Запчасти Case IH 474 (02-02) - FRONT WHEEL WEIGHT Accessories & Attachments / Miscellaneous

1

3040050R1

WEIGHT

FRONT WHEEL - APPROX 44 LBS - FOR FIRST SET

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

SCREW, 1/2-13 x 2-3/4 HEX HD CAP

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

1

3040050R1

WEIGHT

FRONT WHEEL - APPROX 44 LBS - FOR SECOND SET - INCLUDES 1ST SET

4шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

SCREW, 1/2-13 x 4-5/8 HEX HD CAP

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

ref

Part No.

English

1шт.

1

406857R2

WEIGHT

REAR WHEEL - APPROX 120 LBS - - 2 FOR A SET - - USED FOR FIRST INSIDE OR OUTS WEIGHT, OR ADDITIONAL WEIGHT - USED W/28, 30 OR 32 IN WHEELS

1шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 PHC HEX HD CAP, REAR WHEEL WEIGHT

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , Rear wheel weight 7/16"

8шт.

21029

SPARE PART

WASHER, 15/32 x 1 x 11 GA -, REAR WHEEL WEIGHT

8шт.

271501

SOCKET

NUT, 7/16 HEX, REAR WHEEL WEIGHT

8шт.

537133R1

SPACER

TAPER, REAR WHEEL WEIGHT

8шт.

1

406857R2

WEIGHT

REAR WHEEL - APPROX 120 LBS - 4 FOR A SET - USED FOR FIRST INSIDE AND OUTSIDE WEIGHT - USED W/28, 30 or 32 IN, WHEELS

1шт.

189652

BOLT,Hex, 7/16" - 14 x 4 3/4", Gr 5

SCREW, 7/16-14 x 4-3/4 PHC HEX HD CAP, REAR WHEEL WEIGHT

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , Rear wheel weight 7/16"

8шт.

21029R1

WASHER

15/32 x 1 x 11 GA C-Z, REAR WHEEL WEIGHT

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 HEX - TRACTORS W/ADDITIONAL WEIGHTS - REAR WHEEL

8шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 PHC HEX HD CAP, REAR WHEEL WEIGHT

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , Rear wheel weight 7/16"

8шт.

1

406858R1

WEIGHT

REAR WHEEL - APPROX 170 LBS - 2 FOR A SET - USED FOR FIRST INSIDE OR OUTSIDE WEIGHT OR ADDITIONAL WEIGHT - USED W/36 IN. WHEELS

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 ZND HEX HD CAP, REAR WHEEL WEIGHT

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074 C-Z, REAR WHEEL WEIGHT

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 HEX - TRACTORS W/ADDITIONAL WEIGHTS

6шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 ZND HEX HD CAP, REAR WHEEL WEIGHT

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074 C-Z, REAR WHEEL WEIGHT

1шт.

ref

Part No.

English

1шт.

533764R92

DECAL KIT

PACKAGE, PRODUCT GRAPHIC

1шт.

66207C1

NO LONGER SERVICED

PRODUCT GRAPHIC, INTERNATIONAL 474

1шт.

NAME PLATE L.H. SIDE, PRODUCT GRAPHIC

1шт.

66208C1

DECAL

PRODUCT GRAPHIC, INTERNATIONAL 474

1шт.

NAME PLATE R.H. SIDE, PRODUCT GRAPHIC

1шт.

529479R1

PRODUCT GRAPHIC

I.H. GRILLE EMBLEM

1шт.

445201

SPRING NUT,5/32", Push-on

5/32 MED SPRING, PRODUCT GRAPHIC

2шт.

533592R1

PRODUCT GRAPHIC

GOVERNOR

1шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

No.4. x 1/4 BRS HD METAL DRIVE - FOR MOUNTING SERIAL NO PLATE - PRODUCT GRAPHIC

2шт.

1092851R1

PRODUCT GRAPHIC

-78-

2шт.

ref

Part No.

English

1шт.

372369R5

FLUID, HY TRAN - USE AS REQUIRED - PRODUCT GRAPHICS

1шт.

539535R91

O-RING KIT

PACKAGE, BRAKE O-RING SERVICE - AS REQUIRED - CONSISTS 343932R1 O-RING (2) 21472R1 O-RING (2) 289506R1 O-RING (2), PRODUCT GRAPHICS

1шт.

ref

Part No.

English

1шт.

530352R91

GASKET KIT

PACKAGE, HYDROSTATIC TRANSMISSION GASKET SERVICE, ASSORTED - CONSISTS OF

1шт.

400949R1

GASKET

BOTTOM COVER, PACKAGE ASSORTED

1шт.

400951R1

GASKET

RELIEF VALVE ACCESS COVER, PACKAGE ASSORTED

1шт.

400957R1

GASKET,0.76mm Thk

SERVO ACCESS COVER, PACKAGE ASSORTED

1шт.

401019R2

GASKET

TOP COVER, PACKAGE ASSORTED

1шт.

401028R1

GASKET

CHARGE PUMP MANIFOLD, PACKAGE ASSORTED

1шт.

401033R1

GASKET

SUCTION PIPE ELBOW, PACKAGE ASSORTED

1шт.

401056R1

GASKET

MULTIPLE VALVE BODY, PACKAGE ASSORTED

1шт.

405193R1

GASKET

ACCESS COVER, PACKAGE ASSORTED

1шт.

530372R91

O-RING

HYDROSTATIC TRANSMISSION O-RING SERVICE, PACKAGE ASSORTED GASKETS - CONSISTS OF

1шт.

21480R1

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2 x 2-3/16 x 3/32 - FRONT PTO BEARING COVER - PACKAGE ASSORTED GASKETS

1шт.

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-3/16 x 3 x 3/32 - MOTOR TRUNNION - PACKAGE ASSORTED GASKETS

2шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE - REGULATOR VALVE ASSY - PACKAGE ASSORTED GASKETS

1шт.

343943R1

O-RING,6.234" ID x 0.139" Width

6-1/4 x 6-1/2 x 1/8 - TRANS CHARGE PUMP - PACKAGE ASSORTED GASKETS

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 - CAM ACTUATING SHAFT - PACKAGE ASSORTED GASKETS

1шт.

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8 - PUMP SUCTION PIPE - PACKAGE ASSORTED GASKETS

2шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE - PRESSURE CHECK PLUG - PACKAGE ASSORTED GASKETS

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, pressure check plug, Pressure tube elbow, Reg. valve housing, Pump servo elbow, Package assorted gaskets

5шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Motor servo tee, Valve shut-off bolt, Package assorted gaskets

2шт.

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32 - PUMP SERVO TRUNNION - PACKAGE ASSORTED GASKETS

1шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32 - MOTOR SERVO TRUNNION -, PACKAGE ASSORTED GASKETS

1шт.

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16 - REG. VALVE ASSY -, PACKAGE ASSORTED GASKETS

1шт.

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32 - PUMP TRUNNION - PACKAGE ASSORTED GASKETS

2шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16 - PRESSURE CHECK BUSHING - SHUTTLE BLOCK CONNECTIONS, PACKAGE ASSORTED GASKETS

3шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Charge Pump Seal, Exhaust Pipe Seal, Charge Jumper Tube, Package Assorted Gaskets

6шт.

388591R1

RING

VALVE HOUSING SEALING, PACKAGE ASSORTED GASKETS

1шт.
