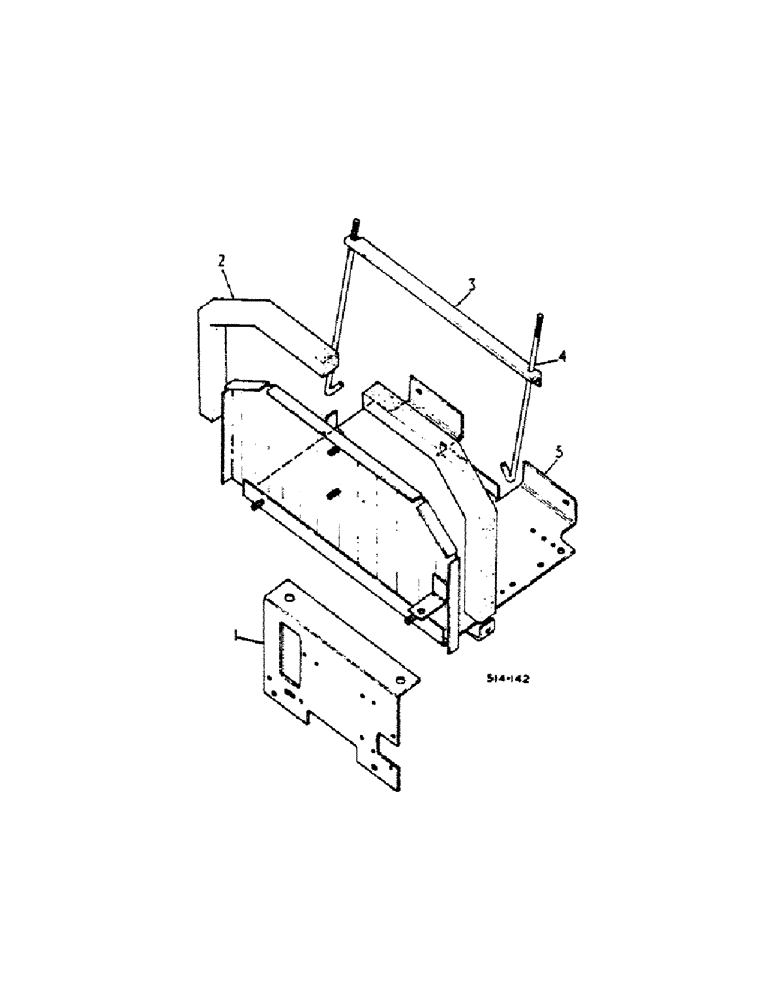

Запчасти Case IH 474 (08-25[1]) - BATTERY TRAY (06) - ELECTRICAL

ref

Part No.

English

1шт.

1

538054R1

SUPPORT

ASSY, BATTERY TRAY

1шт.

120377

NUT,3/8" - 16, Gr 5

Battery tray 3/8"-16, G5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 HEX HD CAP, BATTERY TRAY

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Battery tray 3/8"

2шт.

2

394788R1

GASKET

GASKET, BATTERY HEAT SHIELD, BATTERY TRAY

2шт.

3

527604R1

ANGLE

BATTERY HOLD DOWN, BATTERY TRAY

1шт.

4

527605R1

ROD

BATTERY HOLD DOWN - SYNCHROMESH DRIVE TRACTORS - BATTERY TRAY

2шт.

4

529968R1

ROD

BATTERY HOLD DOWN - HYDROSTATIC DRIVE TRACTORS - BATTERY TRAY

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z WING, BATTERY TRAY

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z, BATTERY TRAY

2шт.

5

538053R4

TRAY ASSY.

TRAY ASSY, BATTERY

1шт.

120376

NUT,5/16"-18, G5

Battery Tray 5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Battery Tray 5/16"

2шт.

20893

WASHER, 11/32 x 1 x .120 C-Z, BATTERY TRAY

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Battery tray 1/4"

1шт.

109084

NUT,1/4"-20, G5

Battery tray 1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Battery tray 3/8"

1шт.

102635

NUT,3/8"-16, G5

Battery Tray 3/8"-16, G5

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

Battery tray Hex, 3/8"-24 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Battery tray 3/8"

2шт.

3113841R1

MOLDING

EDGE, MOULDING, BATTERY TRAY

1шт.
