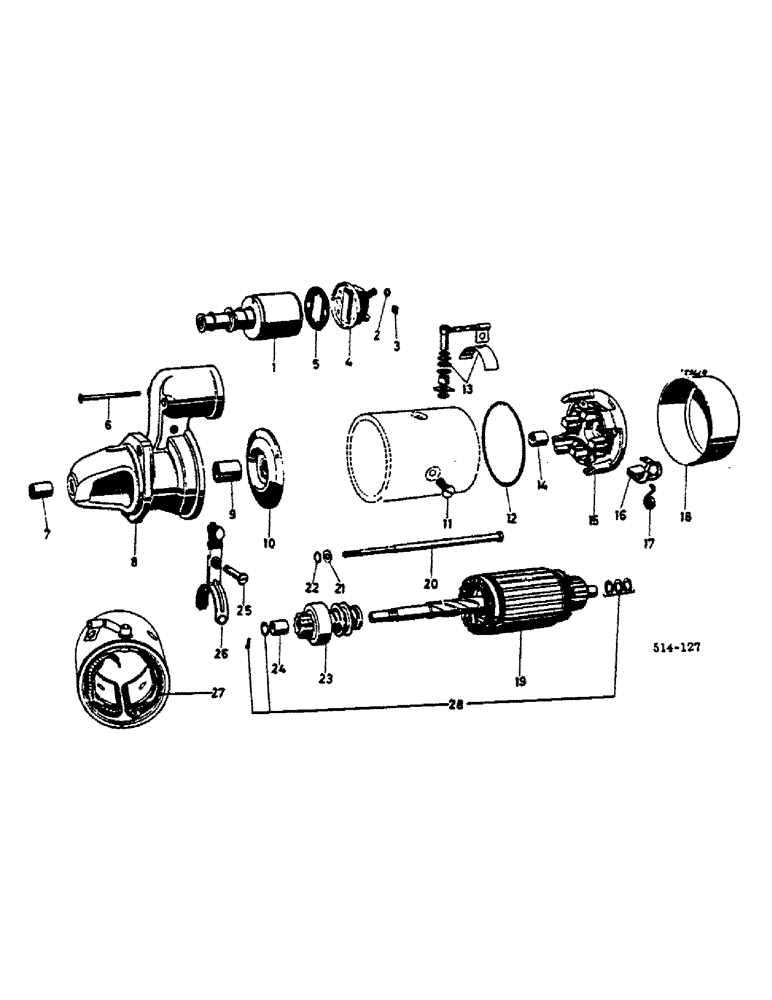

Запчасти Case IH 474 (08-23) - STARTER MOTOR, BOSCH (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
529965R91
STARTER MOTOR
STARTER MOTOR - BOSCH 4PS
1шт.
189330A5R
REMAN-STARTER,12V, 2.8kW
Remanufactured Starter 12 volt, 2.8KW
1шт.
189330A5C
CORE-STARTER,12V, 2.8kW
Return Part Number, Starter 12 volt, 2.8KW, Serial Range: -895
1шт.
1
3113013R91
RELAY
RELAY ASSY
1шт.
2
WASHER, RELAY COVER
2шт.
3
3132763R1
TERMINAL CONNECTOR
PLATE, RELAY COVER
4шт.
4
COVER, RELAY
1шт.
931342R1
SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8
SCREW, RELAY COVER
1шт.
933681R1
THIN NUT,Thin, M10 x 1.5, Cl 04
NUT, HEX RELAY COVER
2шт.
934075R1
LOCK WASHER,M10
LOCK WASHER, , Relay cover M10
2шт.
5
RING, PACKING RELAY COVER
1шт.
6
931100R1
SCREW,M6 x 50mm, Cl 4.8
SCREW, DRIVE END
2шт.
7
3113008R1
BUSHING
BUSHING, BEARING
1шт.
8
3113007R91
DRIVE ASSY.
DRIVE ASSY, END
1шт.
9
3132441R1
BUSHING
BUSHING, BEARING
1шт.
10
3132440R1
SUPPORT
SUPPORT, INTERMEDIATE
1шт.
11
3078334R91
SCREW, RETAINER COIL BODY
4шт.
12
3132450R1
O-RING
RING, PACKING COMMUTATOR END
1шт.
13
3132464R91
TERMINAL CONNECTOR
SET, TERMINAL PARTS
1шт.
14
3132446R1
BUSHING
BUSHING, BEARING COMMUTATOR END
1шт.
15
3113011R91
FRAME ASSY
FRAME ASSY, COMMUTATOR END
1шт.
16
3113012R91
BRUSH SET
BRUSH, CARBON SET
1шт.
17
3132448R1
VALVE SPRING
SPRING, CARBON BRUSH
2шт.
18
3132449R1
COVER
COVER, END
1шт.
19
3132444R1
X
ARMATURE ASSY, ROTATING
1шт.
20
3132759R1
BOLT
PIN, THREADED HOUSING
1шт.
933987R1
LOCK WASHER,M6
WASHER, LOCK
1шт.
21
3133009R1
SPARE PART WASHER
1шт.
22
3132760R1
BUSHING
RING, PACKING
1шт.
23
3113010R91
DRIVE
DRIVE, ASSY
1шт.
24
3132443R1
BUSHING
BUSHING
1шт.
25
3132758R1
SCREW
SCREW, ENGAGING LEVER
1шт.
26
3132432R1
LEVER
LEVER, ENGAGING
1шт.
933983R1
LOCK WASHER,M6
WASHER, LOCK
1шт.
27
3078072R91
KIT
COIL, MAIN FIELD - COILS 1 TO 4
1шт.
28
3132465R91
PACKAGE
SET, ROTATING ARMATURE PARTS
1шт.
Выбрано товаров: 37
